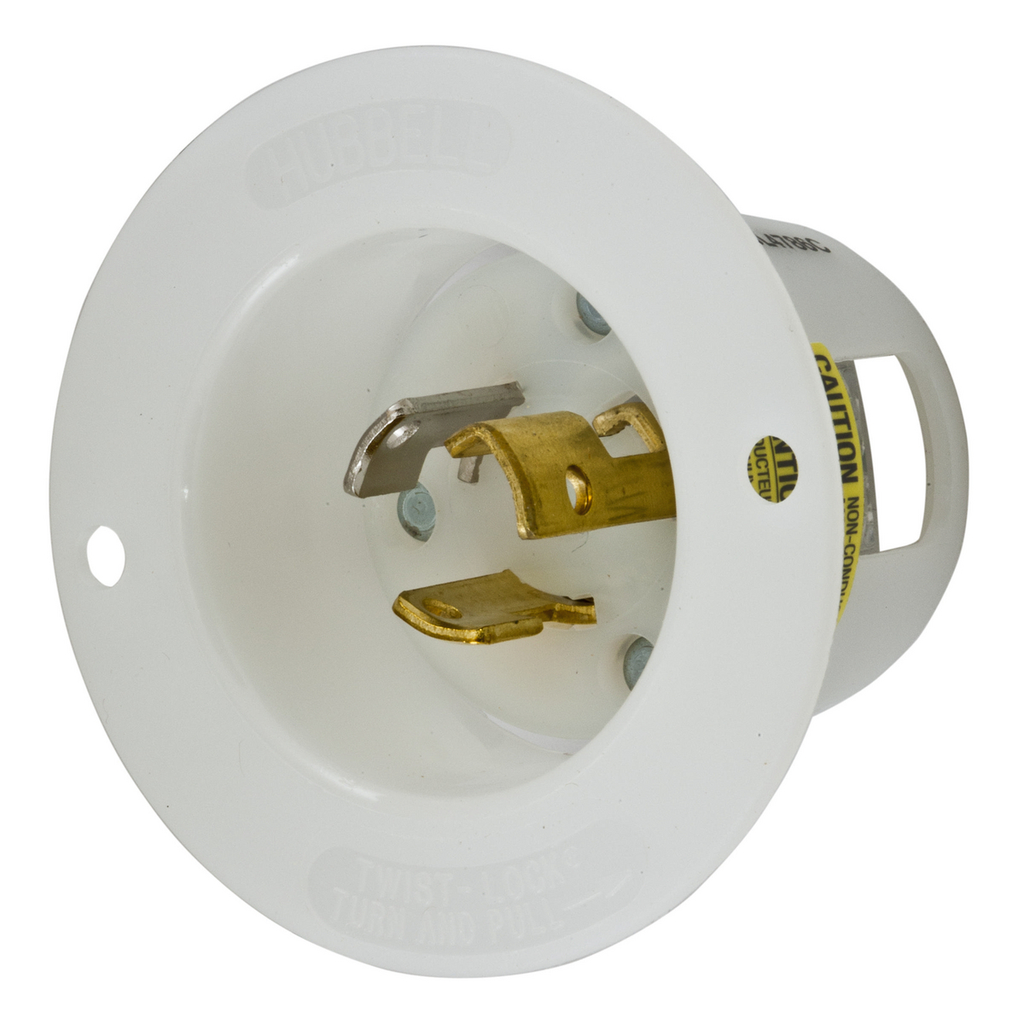

Product image for Hubbell HBL4786C Locking Flanged-INLT, 15A 277 VAC, L7-15P, WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL4786C Locking Flanged-INLT, 15A 277 VAC, L7-15P, WH

Manufacturer: Hubbell Wiring Device | Catalog # HBL4786C | Cooper Electric Part # 1071219
$39.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L7-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec.W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Locking, Industrial Grade
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585172156
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585172156
Product UPC
78358517215
Weight
0.15 lb

Dimensions

Height
1.71 Inch
Length
2.56 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
