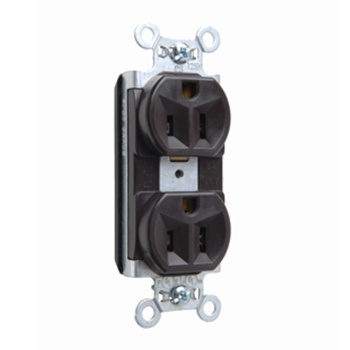

Product image for Pass & Seymour PT5262 PlugTail™ Spec Grade Duplex Receptacle, 15A 125V - Brown
Email

Pass & Seymour PT5262 PlugTail™ Spec Grade Duplex Receptacle, 15A 125V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # PT5262 | Cooper Electric Part # 1071139
$11.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Spec Grade Duplex Receptacle 15 A 125 V Light AlmondFor detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Duty Rating
Extra Heavy Duty
Grade
Federal Specification
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5x2x1.43
Type
Extra Heavy-Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007091571
Color
Brown
GTiN
00785007091571
Product Series
PlugTail
Product UPC
78500709157
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Illuminated face indicates power to receptacle and makes it easy to identify receptacle in dark applications.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
