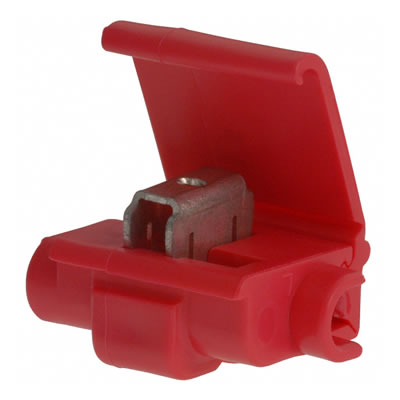

3M 7000005800 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7000005800 | Cooper Electric Part # 1069761
$0.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire and insulates the connection. It is flame retardant and is used for tape and parallel splicing. This connector features a maximum insulation O.D. diameter of 0.145 inches (3.68 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for the 3M™ Scotchlok™ Electrical Insulation Displacement Connector, 560, is the 3M™ Scotchlok™ Crimping Tool, E-9BM.

Technical Information

Conductor Size
22-16 AWG
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007148791
Color
Red
GTiN
10054007148798
Product Type
Run & Tap
Product UPC
05400714879

Certifications and Compliance

Country of Origin
USA
Features
  • GENERAL PURPOSE: Used for general purpose electrical connections on an auto, boat, van or trailer

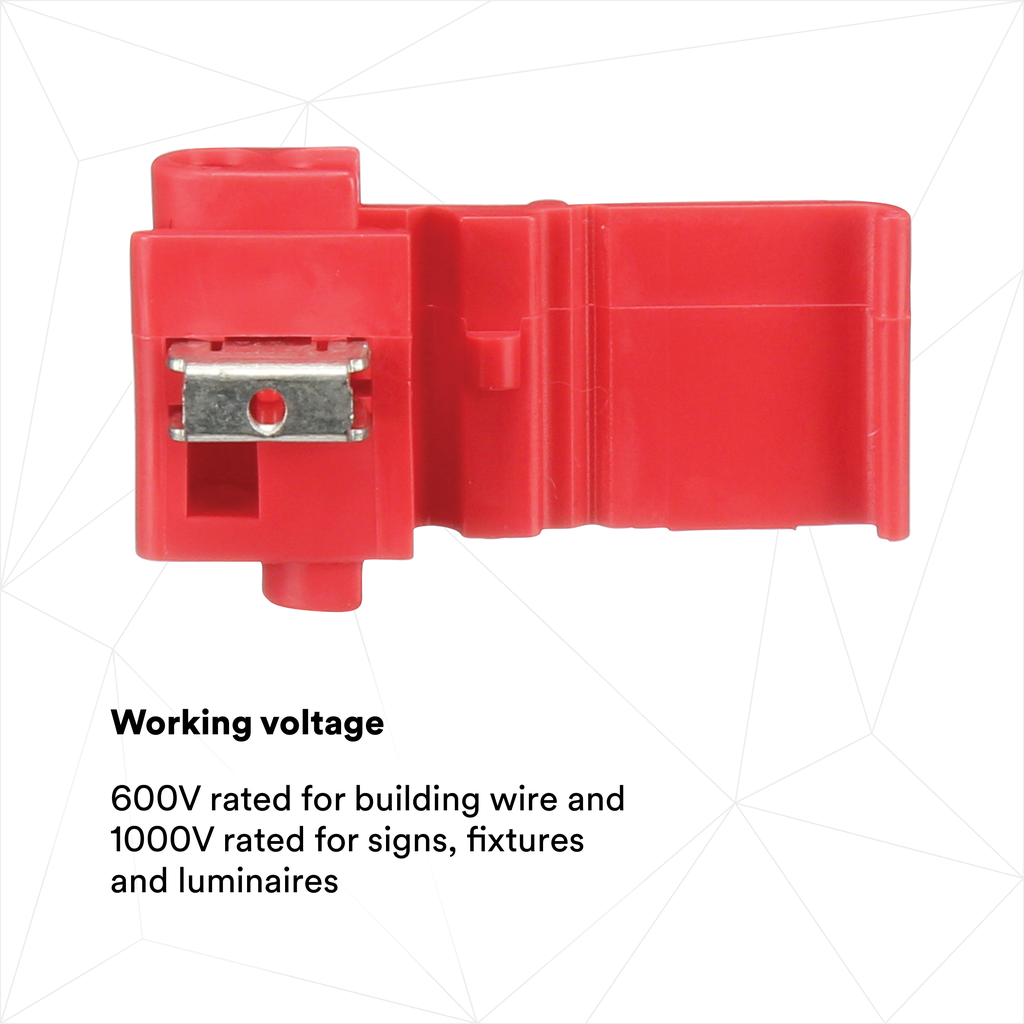

  • WORKING VOLTAGE: 600V rated for building wire and 1000V rated for signs, fixtures and luminaires

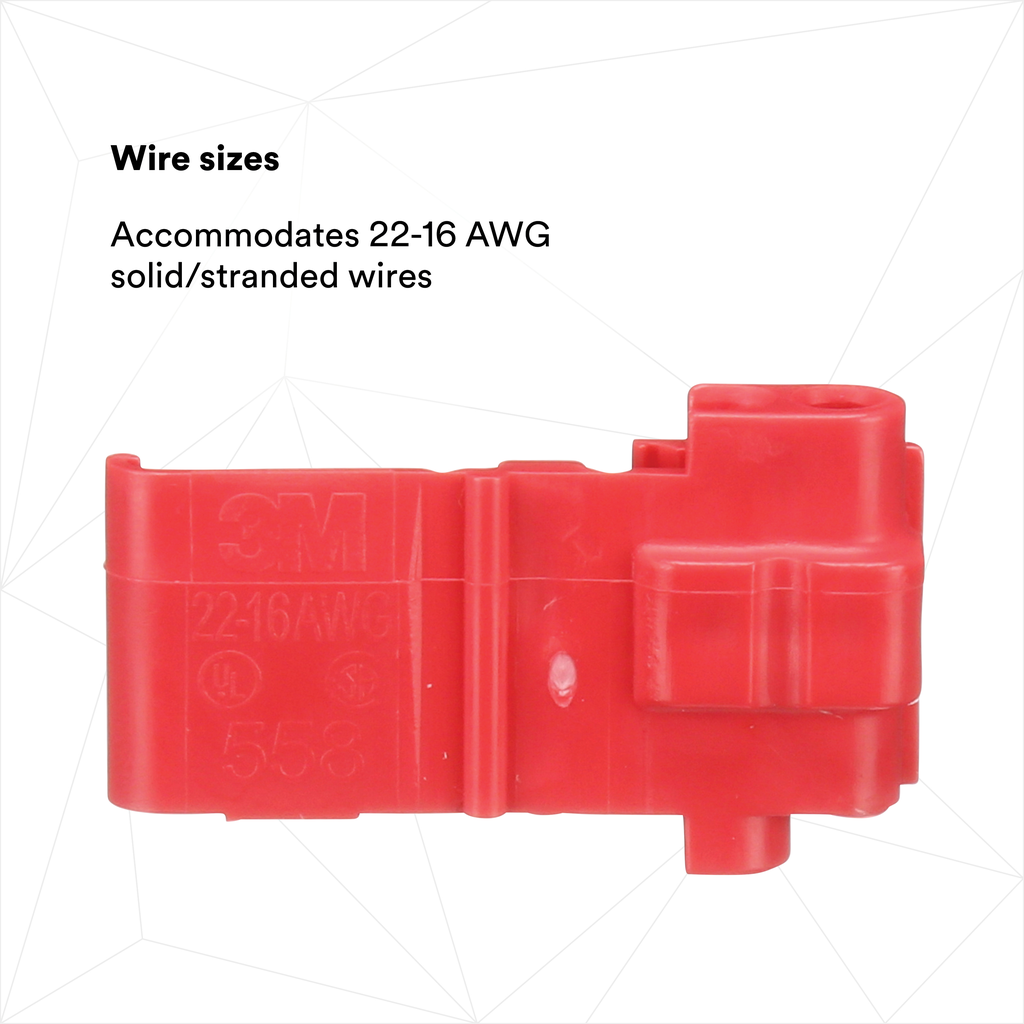

  • WIRE SIZES: Accommodates 22-16 AWG solid/stranded wires

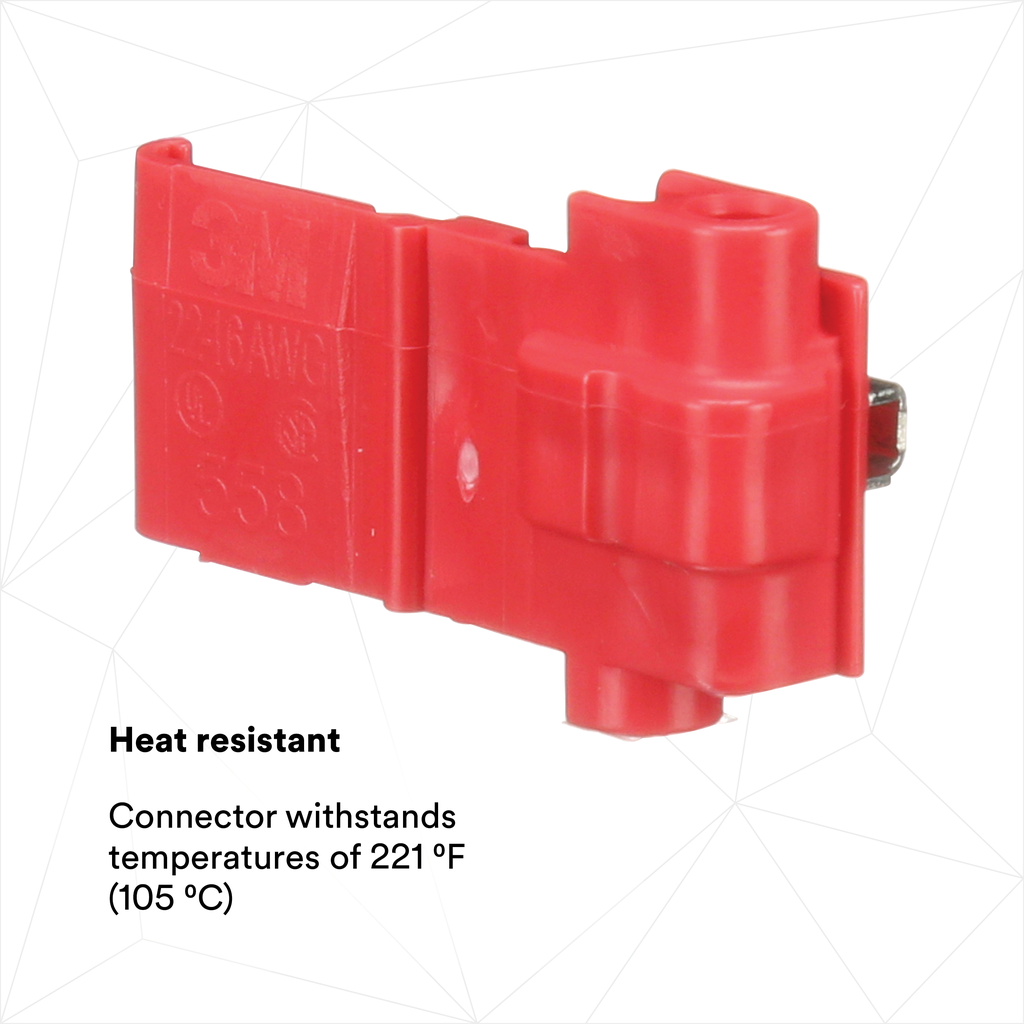

  • HEAT RESISTANT: Connector withstands temperatures of 221 °F (105 °C)

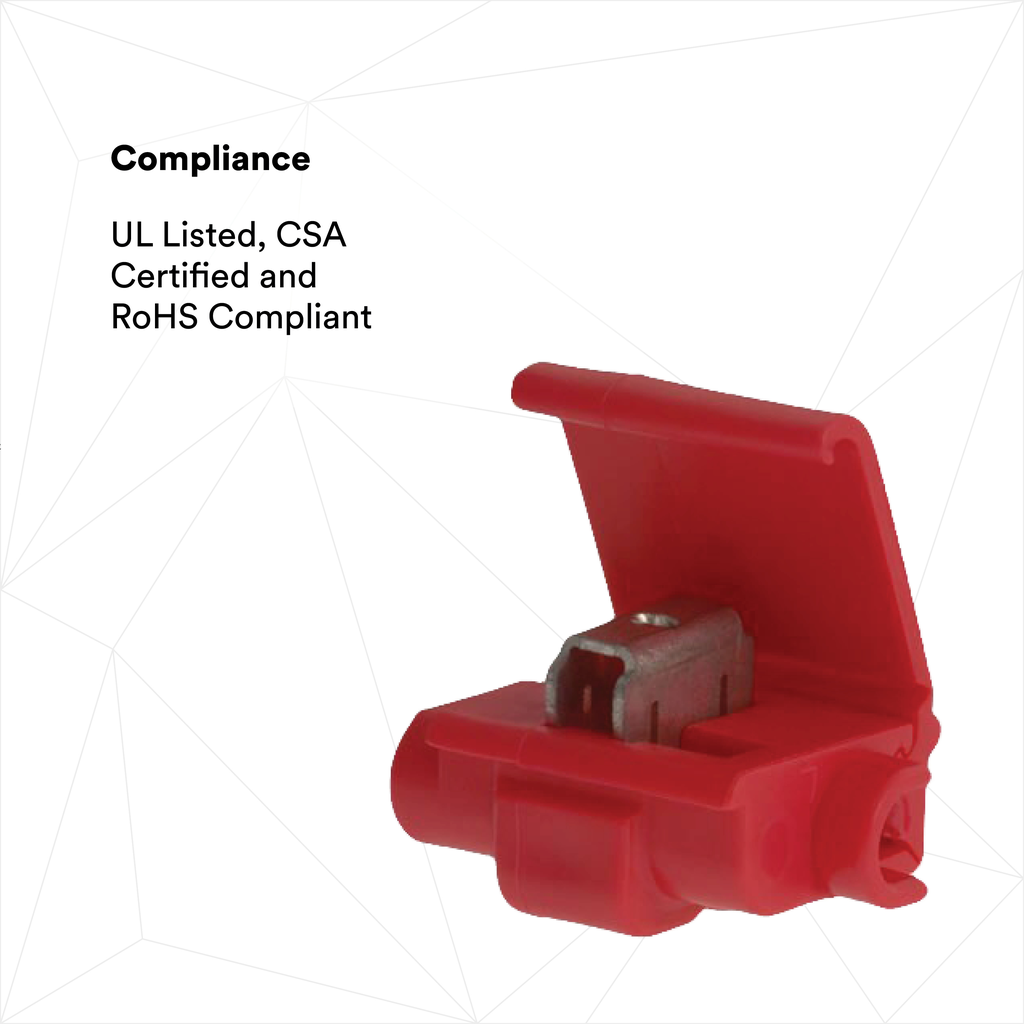

  • COMPLIANCE: UL Listed, CSA Certified and RoHS Compliant
  • STABILITY: 5-year shelf life (from date of manufacture)
