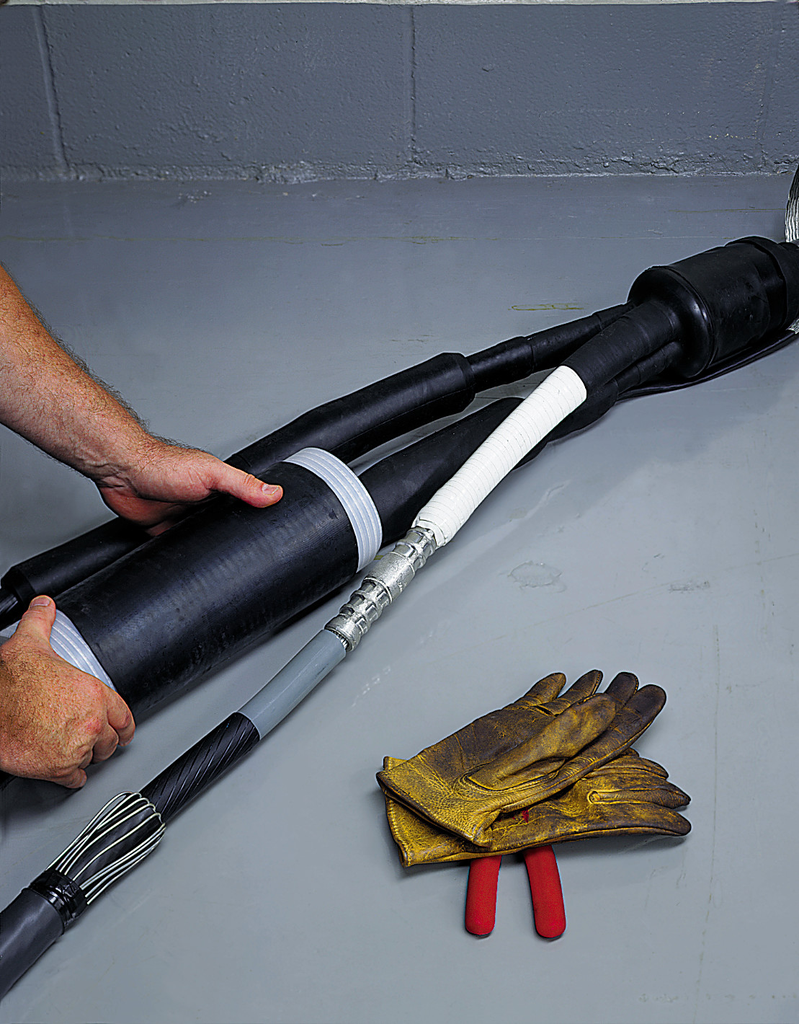

Product image for 3M 7100017405 3M™ Trifurcating Tran
Email

3M 7100017405 3M™ Trifurcating Tran

Manufacturer: 3M | Catalog # 7100017405 | Cooper Electric Part # 1069417
$11,110.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet
The 3M™ Cold Shrink Trifurcating Transition Splice Kit, QS2013-3T-3C is designed for connecting one 3-conductor (3/C) Paper Insulated Lead Covered (PILC) cable to three-conductor (3/C) Poly/EPR insulated cables. The splice kit meets the requirements of IEEE-404, and each splice is factory tested on power cable to ensure long-term reliability and quality.

Technical Information

Cable Type
PILC
Conductor Size
400/500/750/800 kcmil
Number of Conductors
3
Splice Type
Inline PILC Transition
Type
Inline PILC Transition
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007432470
Color
Black
GTiN
00054007432470
Product Type
PILC Splice
Product UPC
05400743247

Certifications and Compliance

Country of Origin
Italy
Features
  • Specially designed splice to connect a 3/C paper insulated lead covered (PILC) cable to three 1/C Poly/EPR insulated cables
  • Poly/EPR cables include CN, JCN, LC, tape shield, wire shield, poly/EP lead or UniShield® cables
  • Mastic components seal at Poly/EPR cable jacket ends
  • Silicone rubber-splice body controls the electrical field of the high voltage over the connector
  • Rated for 15 kV cables
  • Meets the requirements of IEEE 404 standards
