ABB C222-TB UNINS LKG FORK TERM 12-

Manufacturer: ABB | Thomas & Betts | Catalog # C222-TB | Cooper Electric Part # 1069218
$60.70/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

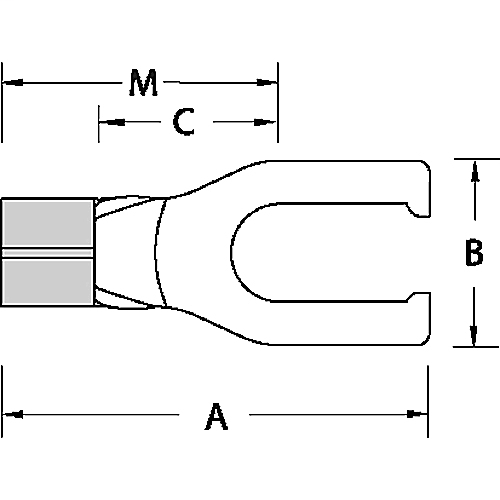

Non-Insulated Locking Fork Terminal, Length .85 Inches, Width .37 Inches, Bolt Hole #10, Wire Range #12-#10 AWG, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
150 degrees C
Terminal Type
C
Type
Non-Insulated, Locking
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210811079
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363149026
Product UPC
78621081107

Dimensions

Height
3 Inch
Thickness
.04 in
Width
3 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
Certifications
  • UL
  • CSA
