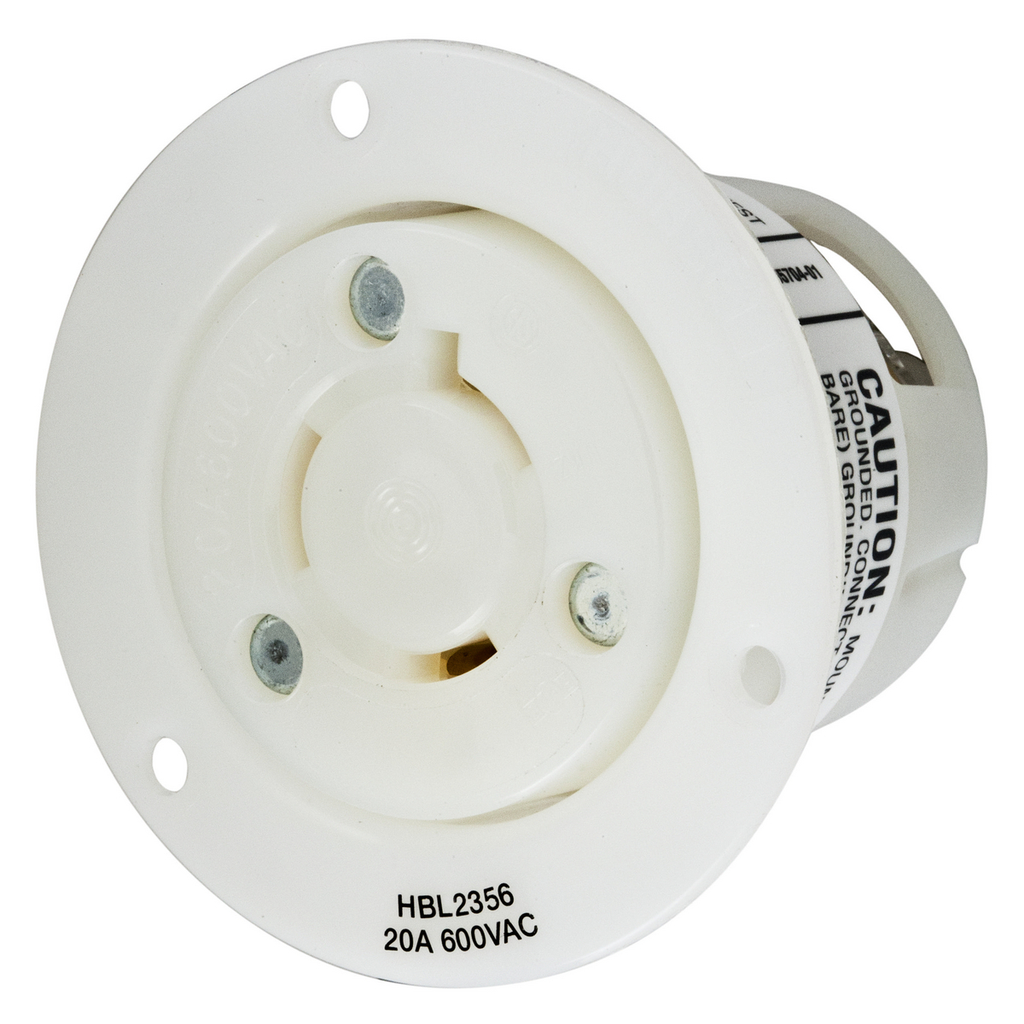

Product image for Hubbell HBL2356 Locking Flanged-Receptacle, 20A 600V, L9-20R, WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL2356 Locking Flanged-Receptacle, 20A 600V, L9-20R, WH

Manufacturer: Hubbell Wiring Device | Catalog # HBL2356 | Cooper Electric Part # 1068624
$77.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, NEMA L9-20R, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
NEMA
L9-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Flanged Single
Voltage
600 Volt
Wattage
12000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038070
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038070
Product UPC
78358503807
Weight
0.3 lb

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.600 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
