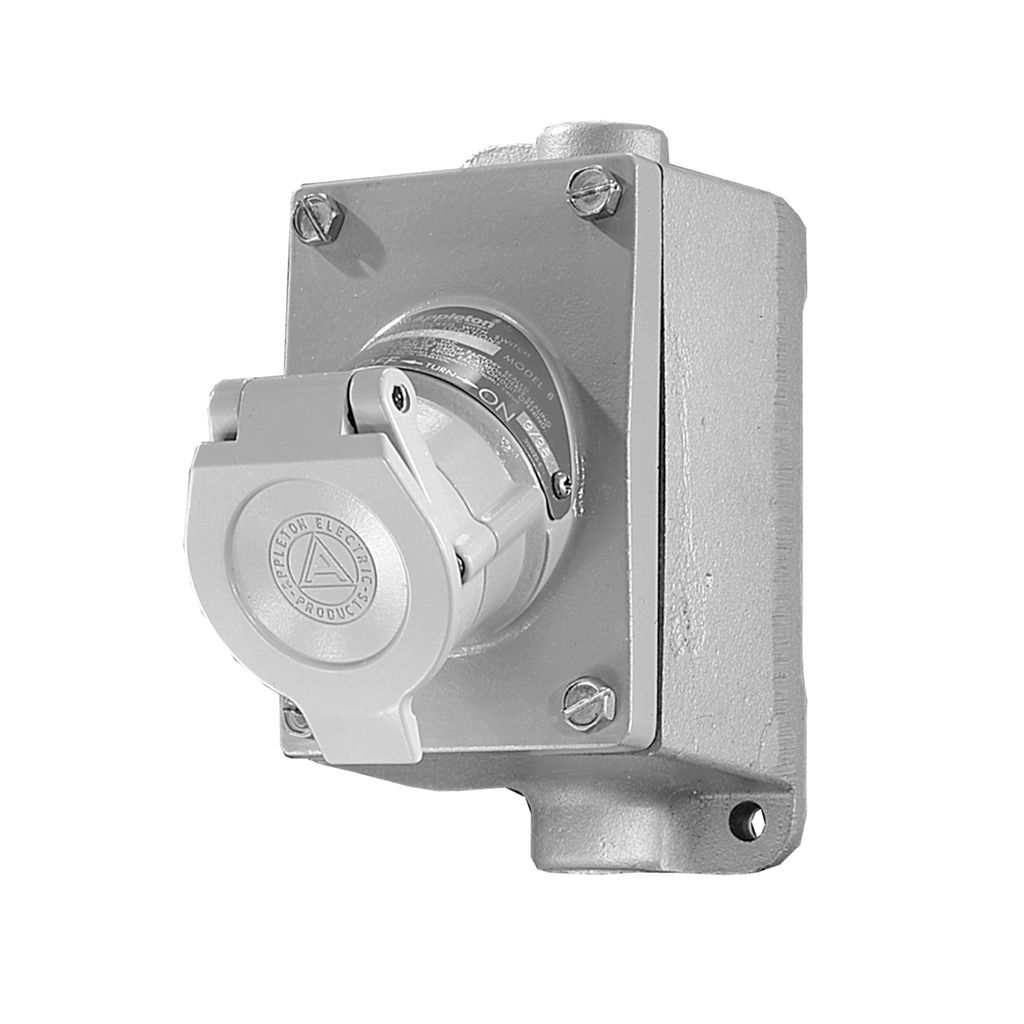

Product image for Appleton GFS1 CONTENDER SERIES GF1
Image thumbnail 0
Image thumbnail 1
Email

Appleton GFS1 CONTENDER SERIES GF1

Manufacturer: Appleton Electric | Catalog # GFS1 | Cooper Electric Part # 1067185
$1,892.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
U-Line™ Contender™ Factory Sealed 20 Amp Plugs and Receptacles feature a dead front design making them ideal for use with electrical equipment in hazardous locations. The neoprene gasket in the throat of the receptacle seals against the plug or the spring-loaded cover to seal out water, dust and corrosive compounds. Although U-Line plugs can be used with ordinary receptacles, U-Line receptacles are designed so that they can't be energized by an ordinary plug.

Technical Information

Amperage
20 Amp
Applications
For U-Line Contender 20 AMP Receptacles
Enclosure
NEMA 3RX, 7CD, 9EFG
Material
Aluminum
Number of Wires
2 Wire
Trip Type
5 MILAMP Trip Setting
Type
Ground Fault Interrupter Cover/Device
Voltage
125 Volt

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381822251
GTiN
00781381822251
Product UPC
78138182225

Dimensions

Height
5.09 Inch
Length
3-1/2 Inch
Width
4.25 in
Features
  • Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged
  • ECP plug fits any standard non-explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Ground fault circuit interrupting cover and receptacle combinations available
  • Covers are UL Listed when used with Contender™ Series mounting boxes, and UL Classified when used with Crouse-Hinds™ EDS™ series mounting boxes
  • Intermatable with competitor's plugs of like configurations
