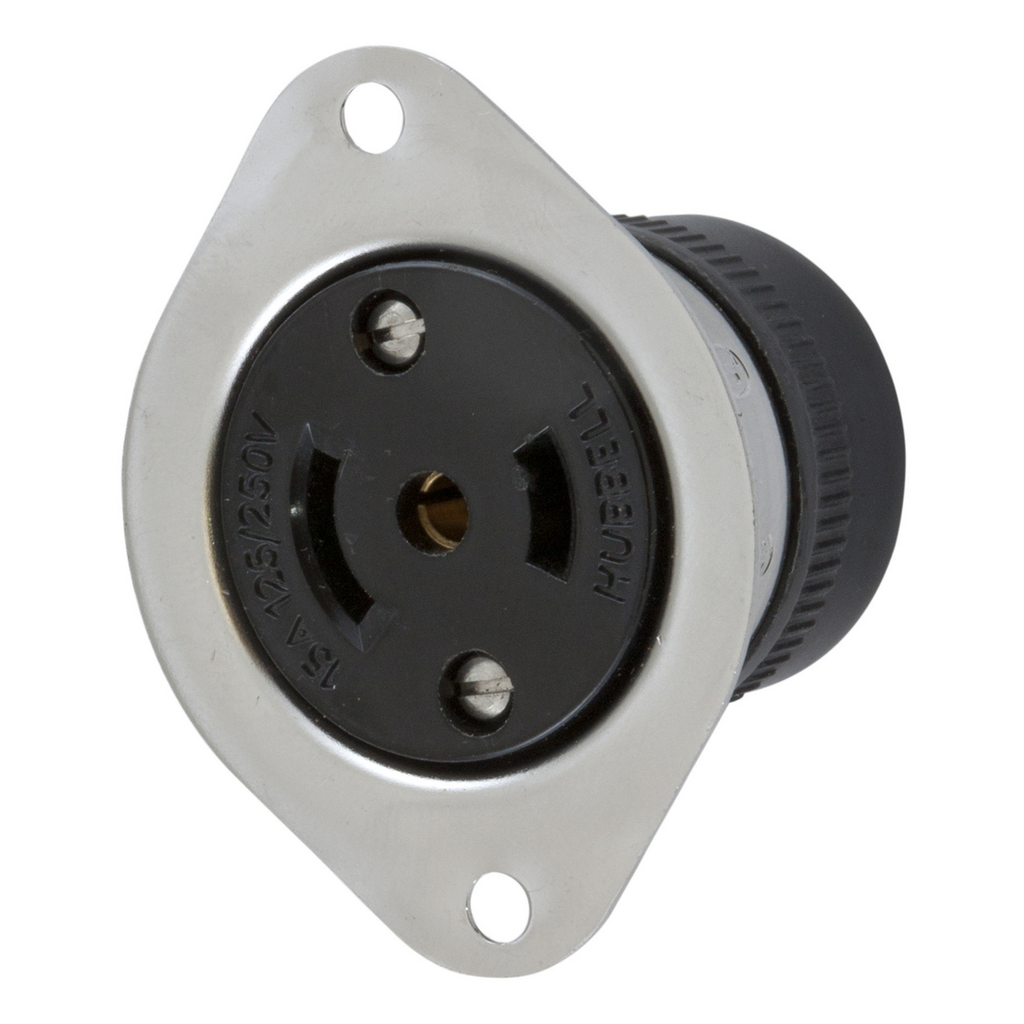

Product image for Hubbell HBL7489 Locking Flanged-Receptacle, MIDGET, 15A 125/250V, ML-3R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL7489 Locking Flanged-Receptacle, MIDGET, 15A 125/250V, ML-3R

Manufacturer: Hubbell Wiring Device | Catalog # HBL7489 | Cooper Electric Part # 1064735
$57.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Stainless Steel Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
Phenolic
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Stainless Steel

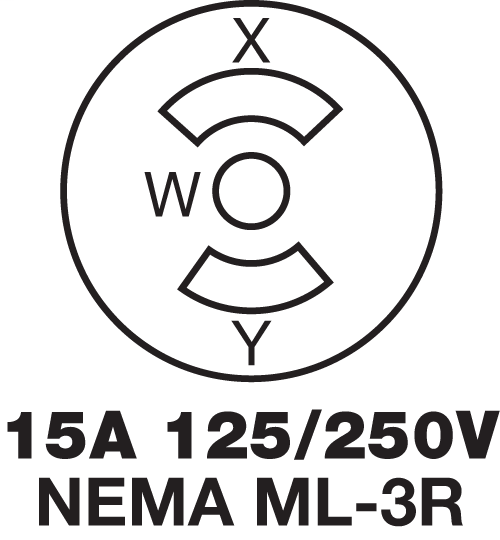

NEMA
ML-3R
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Midget Locking Devices
Standard
CSA C22.2 No.42,UL 498
TC Connection
Screw Terminal
Type
Flanged Receptacles
Voltage
125/250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585237480
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585237480
Product UPC
78358523748
Weight
0.10 lb

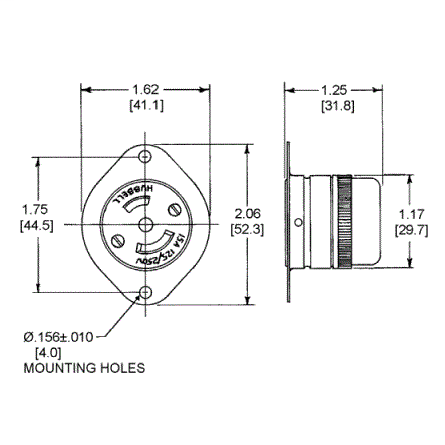

Dimensions

Height
1-1/4 Inch
Length
2.06 Inch
Width
1.62 in

Certifications and Compliance

Country of Origin
USA
Features
  • Stainless Steel mounting flange
  • High heat resistant phenolic base
  • Standard
