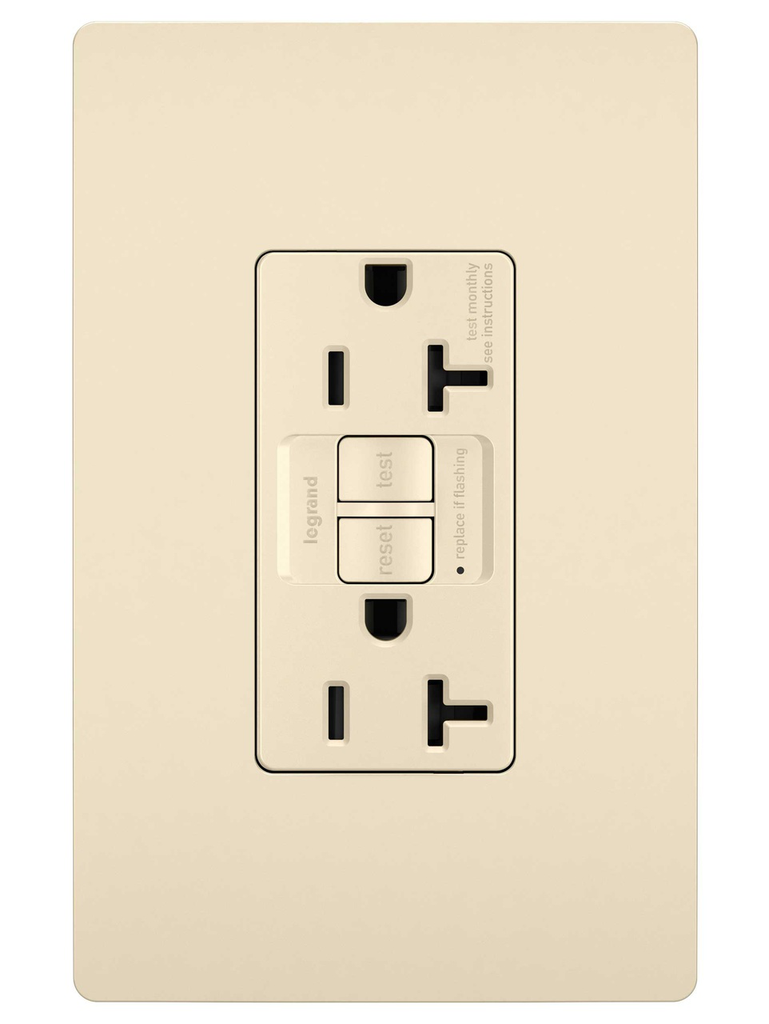

Product image for Pass & Seymour 2097-TRNALA 20A 125V Self Test Tamper Resistant NAFTA GFCI Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour 2097-TRNALA 20A 125V Self Test Tamper Resistant NAFTA GFCI Light Almond

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097TRNALA | Cooper Electric Part # 1064345
$57.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. radiant® Screwless Wall Plate not included.For detailed GFCI receptacle information, visit our GFCI Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial/Residential
Material
Thermoplatic
NEMA
5-20R
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Trip Range
4 to 6 mA
Trip Type
.025 Second Nominal
Type
NAFTA-Compliant Specification Grade Tamper-Resistant 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007050233
Color
Almond
Environmental Conditions
95 PCT
GTiN
00785007050233
Product UPC
78500705023

Dimensions

Depth
1.03 Inch
Height
2.7 Inch
Length
1.03 Inch
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • NAFTA-Compliant devices are ideal for use on projects subject to the provisions of the Buy America Act.
Certifications
  • cULus Listed
