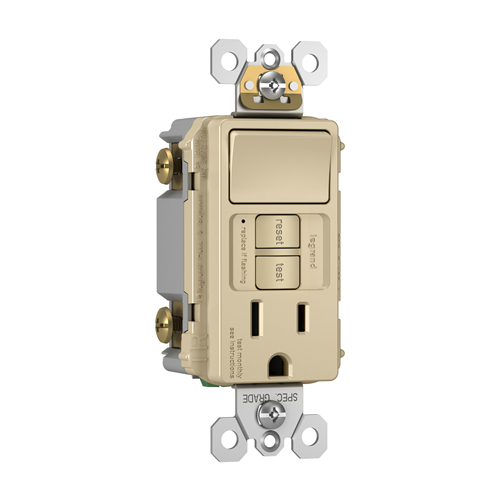

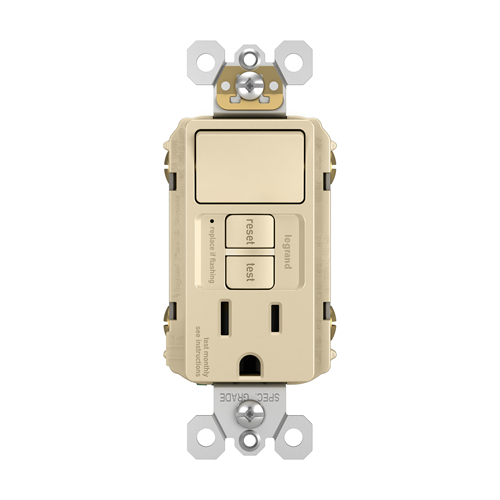

Pass & Seymour 1597-SWTTRICC4 Combination Tamper Resistant 15 Amp Ivory Self Test Single Pole Switch and GFCI

Manufacturer: Pass & Seymour / Legrand | Catalog # 1597-SWTTRICC4 | Cooper Electric Part # 1063866
$50.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
NEMA
5-15R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007049442
Color
Ivory
GTiN
00785007049442
Product UPC
78500704944
Features & Benefits
  • Class A rated GFCI.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 m
  • Auto-Ground clip assures a positive ground to metal box.
  • Trip Time: 0.025 sec., nominal per UL Standard
  • User-preferred up-and-down switching combined with standard GFCI safety features.
  • Extra-long strap.
  • 10kA short circuit rating.
  • Meets 2015 UL requirements.

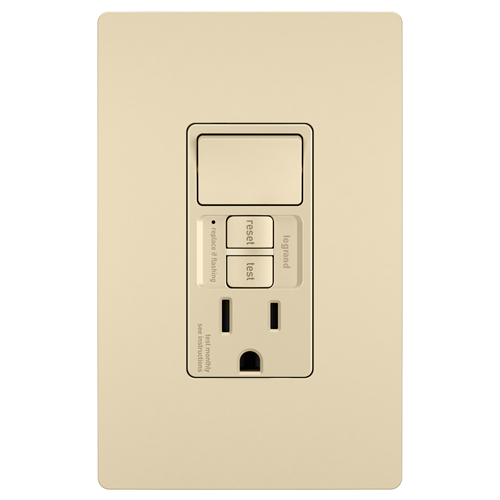

  • Supplied with matching TP wall plate (except NI, AB, and DB models).
  • Supply Voltage: 125VAC, 60 Hz
  • High-impact-resistant thermoplastic construction.
  • Trip indicator light (red LED).
  • Ideal for remodeling, and perfect for bath and kitchen vent fans.
  • Switch rating: 15A, 120VAC, single pole.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Ground screw has back-wire clamp for easy installation.
  • Two back-wire holes per terminal.
  • Dual-direction test and reset buttons.
  • Provides more function in single-gang opening.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Button colors match the device face.
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • 20 Amp feed-thru capacity
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
Available Options
  • Combination Tamper-Resistant 15A Self-Test Single-Pole Switch/GFCI, Light Almond
  • Combination Tamper-Resistant 15A Self-Test Single-Pole Switch/GFCI, Black
  • Combination Tamper-Resistant 15A Self-Test Single-Pole Switch/GFCI, White
  • Combination Tamper-Resistant 15A Self-Test Single-Pole Switch/GFCI, Ivory
