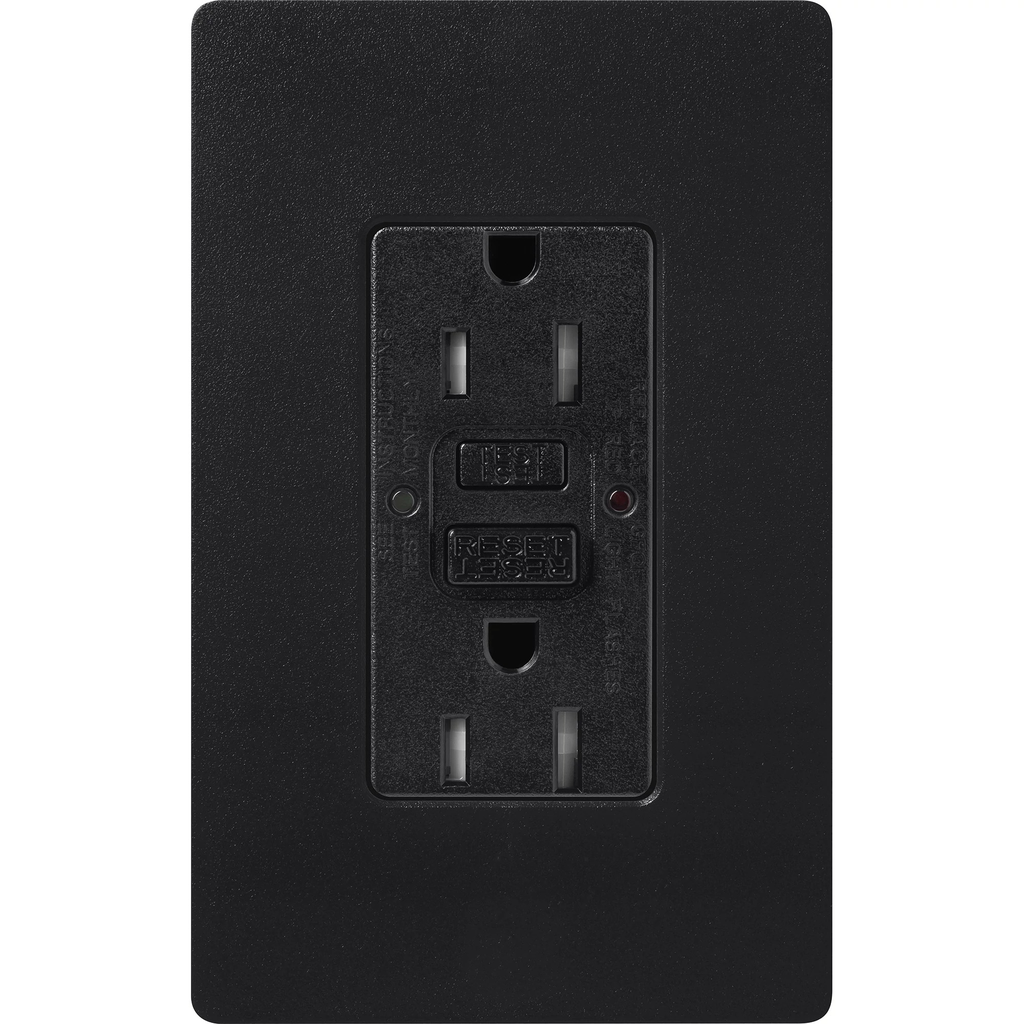

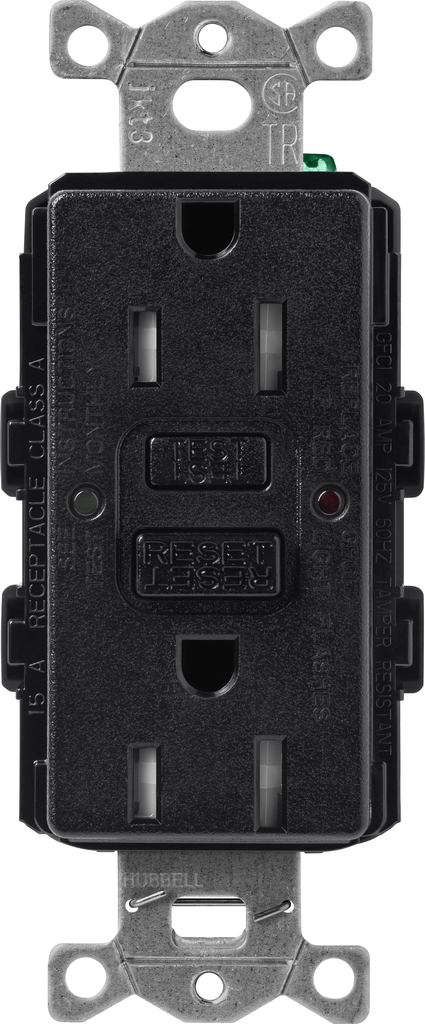

Product image for Lutron SCR-15-GFST-MN SC 15A GFCI SELF
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Lutron SCR-15-GFST-MN SC 15A GFCI SELF

Manufacturer: Lutron | Catalog # SCR-15-GFST-MN | Cooper Electric Part # 1063763
$126.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Self-testing technology allows GFCI to automatically check proper operation every 30 seconds. LEDs indicate status of GFCI protection function. Press reset button to reset GFCI after circuit interruption. Wallplate sold separately.

Technical Information

Amperage
15 Amp
Applications
Lighting
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Plastic
Mounting Type
Wallbox
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3,4,5 Wire
Size
75 in
Standard
CEC,CSA,NEC,NOM,OSHA,UL
TC Connection
Screw terminal
Temperature Rating
0 degrees C to 40 degrees C
Type
Self-Test
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Designer™

General Product Info

12-Digit UPC
784276159005
Color
Midnight
Environmental Conditions
0 - 90% RH Non-Condensing
Finish
Satin
GTiN
00784276159005
Product UPC
78427615900

Certifications and Compliance

Country of Origin
China
Features
  • Includes (1) Tamper-Resistant GFCI Duplex Receptacle; Satin Finish
  • 15 A capacity
  • 125V only (US style wall box)
  • Tamper resistant shutter mechanism
  • Continuous self-test functionality automatically checks every 30 seconds to ensure the unit is functioning properly
  • Manual test/reset buttons
  • Features screw terminal and push in connections for easy installation
  • LED indicator light for GFCI status
  • Coordinates with decorator-style dimmers and switches
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
  • LEDs indicate status of GFCI protection function
  • Press reset button to reset GFCI after circuit interruption
  • Wallplate sold separately.
Standards and Certifications
  • UL
  • CSA
  • NOM
  • NEC
  • CEC
  • OSHA
