Blackburn PAE9999-9 Extruded Parallel Groove Clamp

Manufacturer: Blackburn / Thomas & Betts | Catalog # PAE9999-9 | Cooper Electric Part # 1062195
$96.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 1000 kcmil-397.5, ACSR 336.4-2/ AR Tap: 1000 kcmil-397.5, ACSR 336.4-2/0 AR

Technical Information

Applications
For Securing Conductors
Bolt Size
1/2 in
Connection Type
Bolted
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size

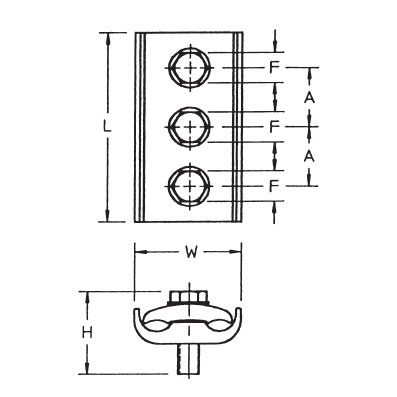

Height 2-13/16 X Length 6 X Width 2-13/16 inch, Bolt 1/2 inch
TC Connection
Bolted
Type
Parallel-Groove Clamp

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786330386
GTiN
00783786330386
Product UPC
78378633038
Features
  • Standard PAE clamp is supplied with Contax (-9) and galvanized steel hardware.
  • For use on aluminum to aluminum or aluminum to copper connections with oxide inhibitor. Can be installed with live line tools.
Notes
  • Tin plating (-P) or wax dip (-6) must be specified for without oxide inhibitor-filled connectors.
  • Options: 7 Aluminum hardware, P Tin plating, 6 Wax dip for oxide protection.
