Product image for Hubbell HBL223 1-1/2 Hp 20 Amp 125 VAC DPDT Toggle Switch
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL223 1-1/2 Hp 20 Amp 125 VAC DPDT Toggle Switch

Manufacturer: Hubbell Wiring Device | Catalog # HBL223 | Cooper Electric Part # 1061643
$15.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Double Pole Double Throw Center Off 10A 250V/10A 125V, Screw

Technical Information

Action
Center Off
Actuator
Toggle
Amperage
20 Amp
Applications
2-Circuit On/Off/On
Contact Configuration
DPDT
Contact Rating
As Indicated
Current
10 Amp
Horsepower
1.5 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
2-2 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Screw Terminal
TC Connection
Screw Terminal
Type
Bat Handle
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585017136
Color
Brown Housing, Chrome Element
GTiN
00783585017136
Product Series
Double Pole/Double Throw
Product UPC
78358501713
Weight
0.1 lb

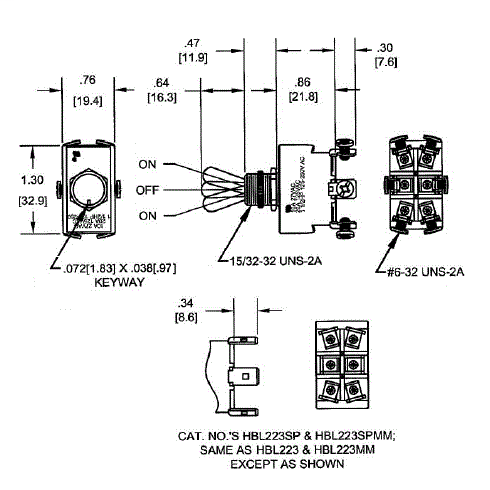

Dimensions

Height
1.3 Inch
Length
2.27 Inch
Width
0.76 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel Plated for Corrosion Resistance
Compare
