NVENT RAY RTD10CS Temperature Senso

Manufacturer: Raychem | Catalog # RTD10CS | Cooper Electric Part # 1061407
$341.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet

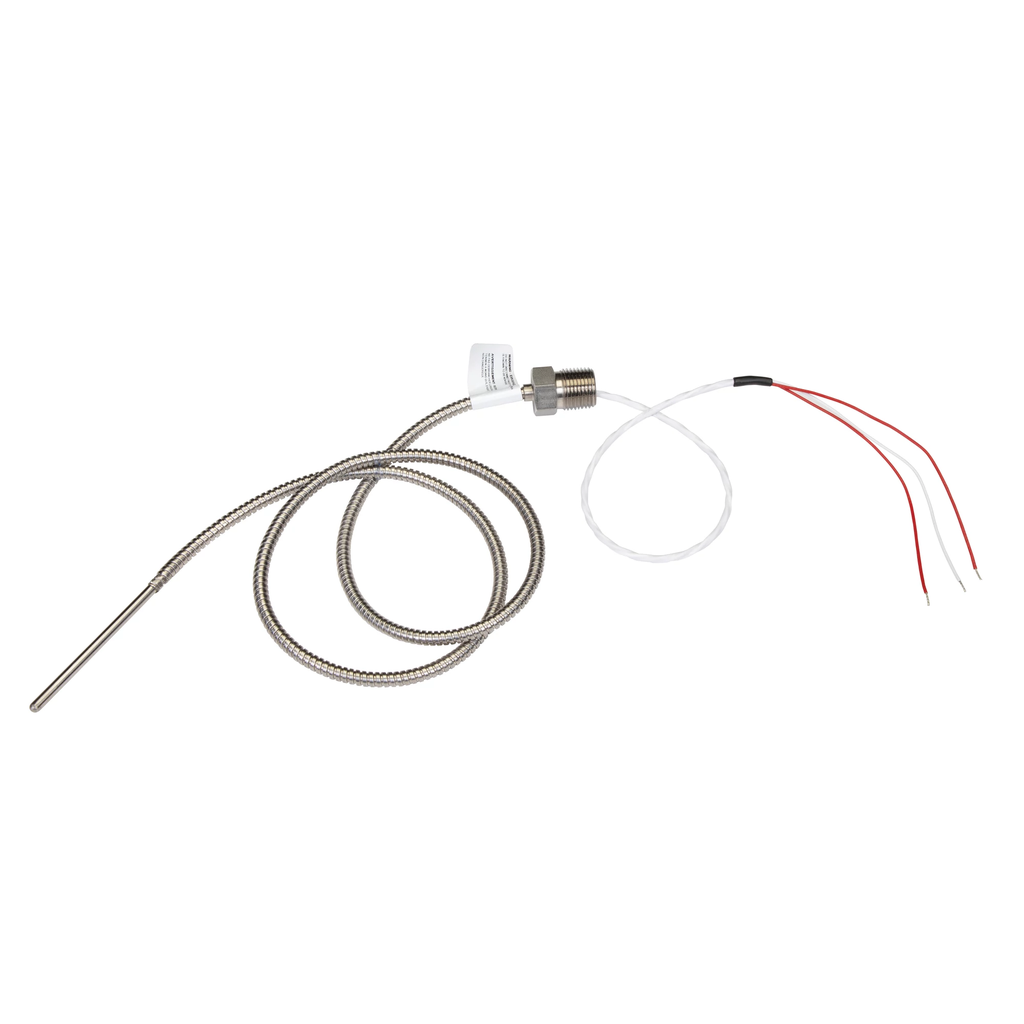

Platinum RTD for accurate temperature sensing (-76 .F to 400 .F) in non-hazardous and hazardous areas, with stainless steel corrugated sheath. Approved for CID2 locations. Simple and fast to install. Direct connection to controller with 1/2"/12.7 mm NPT fitting that connects to the conduit box: allows mounting of the RTD in a typical ambient and splicing of RTD extension wire back to the controller. Sensor housing is 316 stainless steel, lead wire is heathed in Alloy 825. Temperature measuring range: -100 .F to 300 .F/-73 .C to 149 .C. Reliable during long life.

Technical Information

Accuracy
+/- 1 F at 32 F
Applications
For Monitoring and Control Systems
Material
Stainless Steel
Resistance
100 ? at 0 C
Temperature Rating
400 degrees F
Type
3-Wire
Voltage
300 Volt

Manufacturer Information

Brand
Raychem
Sub Brand
DigiTrace®

General Product Info

12-Digit UPC
715629007377
GTiN
00715629007377
Housing Material
Stainless Steel
Product UPC
71562900737
Weight
0.36 kg

Dimensions

Height
2.99 Inch
Features
  • Simple and fast to install
  • Direct connection to controller with 1/2\"/12.7 mm NPT fitting that connects to the conduit box: allows mounting of the RTD in a typical ambient and splicing of RTD extension wire back to the controller
  • Sensor housing is 316 stainless steel, lead wire is heathed in Alloy 825
  • Temperature measuring range: -100 °F to 300 °F/-73 °C to 149 °C
  • Reliable during long life
