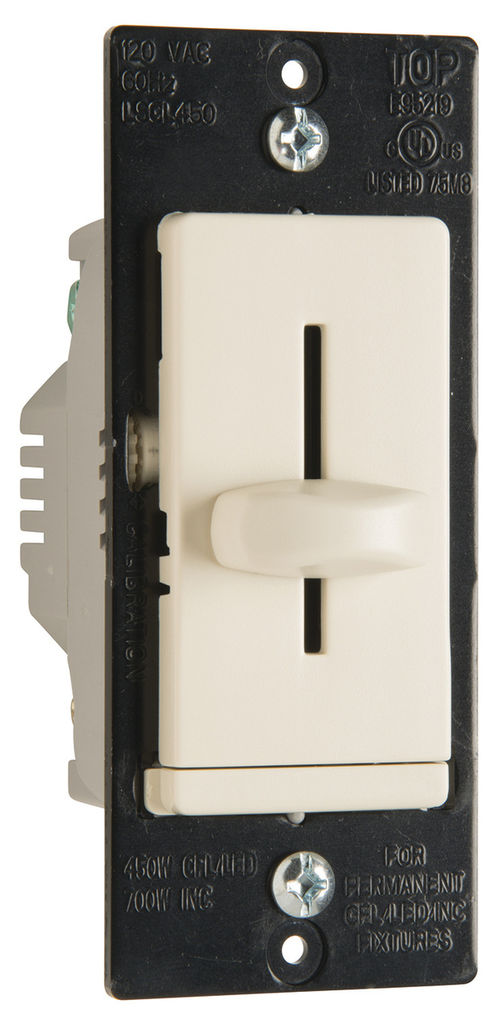

Product image for LS INC/CFL/LED NON-PRESET DIMMER LA
Email

LS INC/CFL/LED NON-PRESET DIMMER LA

Manufacturer: Pass & Seymour / Legrand | Catalog # LSCL450LA | Cooper Electric Part # 1061390
$47.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control.

Technical Information

Actuator
Slide
Applications
Residential
Connection Type
Screw-Type Terminals
Enclosure
Thermoplastic
Frequency
120 Hz
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
Ambient Temperature: 0degrees and 40degrees C
Size
2.85 L x 1.44 W x 4.87 H In
TC Connection
Screw Terminals
Type
Dimmer
Voltage
120 Volt
Wattage
450 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007040470
Color
Almond
Environmental Conditions
0 to 95 PCT
Finish
Matte
GTiN
00785007040470
Product UPC
78500704047

Dimensions

Depth
1.28 Inch
Height
4.19 Inch
Width
1.74 in

Certifications and Compliance

Country of Origin
China
Features
  • CFL/LED dimmable bulb compatible (except for 0-10V LED drivers)
  • Works with dimmable CFL/LED or Incandescent lighting loads at 450W CFL/LED & 700W Incandescent
  • Built-in electromagnetic and radio-frequency interference protection
  • No dirt-catching crevices
  • Tough, impact-resistant thermoplastic housing makes it a perfect choice for new home construction. Matching, unbreakable TradeMaster wall plates available for all models
  • Preset ON/OFF switch automatically returns controlled lights to preset level without re-adjusting dimmer setting
  • Exclusive, screw-pressure-plate back wire terminals save time, space and money. Designed for 12 and 14 gauge wire, stranded or solid. No-wire-lead design eliminates wire nuts
  • Superior heat management
  • Patented Snap-In Light Module (sold separately) transforms the dimmer into an illuminated dimmer
  • Rating: 450W LED & CFL: 700W Incandescent: 120VAC 60Hz
