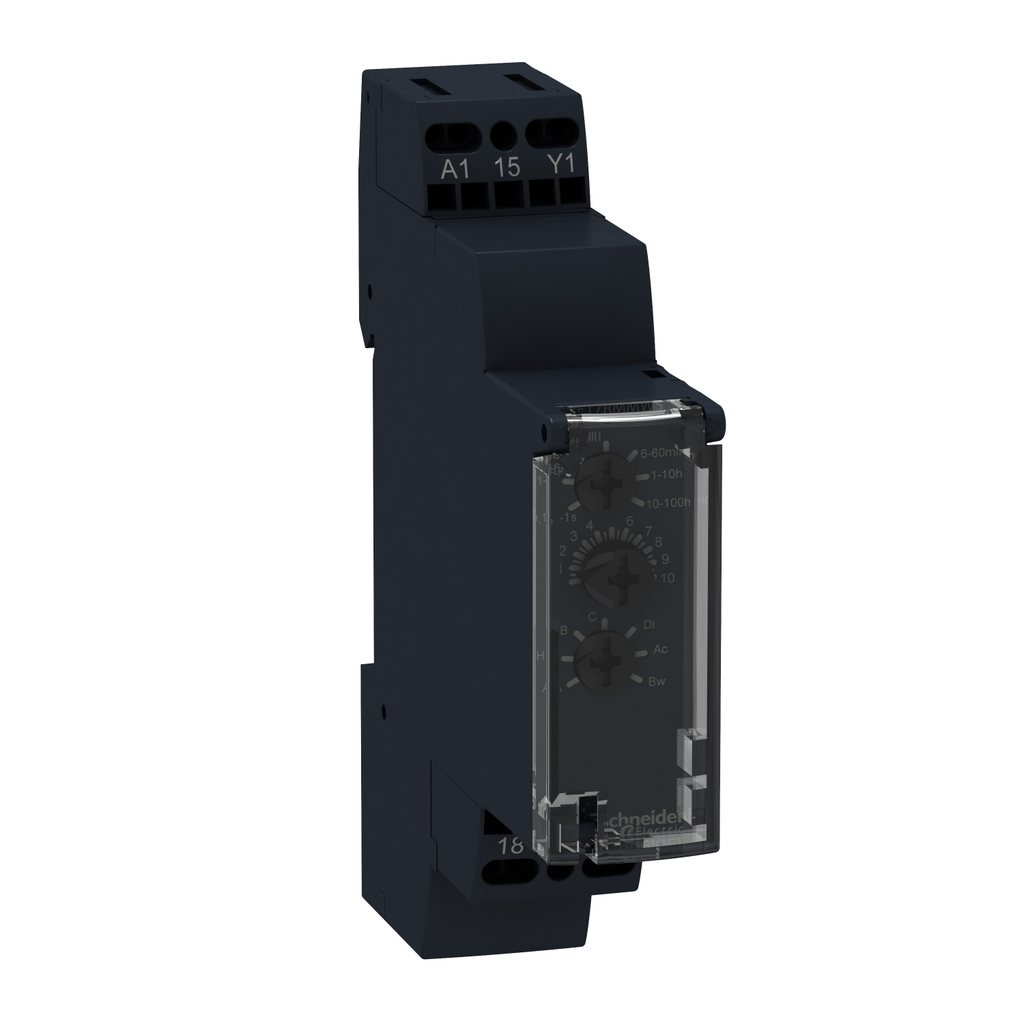

Square D RE17RMMW 12 to 240 VAC 8 Amp 1 Second to 100 Hour Multi-Function Timing Relay

Manufacturer: Square-D / Schneider | Catalog # RE17RMMW | Cooper Electric Part # 1056733
$88.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V to 240V AC/DC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Contact Configuration
1 C/O
Contact Material
Cadmium Free
Contact Rating
8 A
Control Type
Selector switch front panel
Dielectric Strength
1 mA
Input Voltage
5 V
Line Rated Current
5 A
Net Weight
0.07 kg
Operating Cycles
10
Operating Temperature
-20-60 Adegrees C
Size
2.83 in
Standard
2004/108/EC,2006/95/EC,IEC 61000-6-1,IEC 61000-6-2,IEC 61000-6-3,IEC 61000-6-4,IEC 61812-1
Storage Temperature
-30-60 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 3.3 MMA AWG 20...AWG 12) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Relay;Multifunction relay

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480552765
GTiN
03606480552762
Product UPC
78590166032
Weight
0.07 kg

Dimensions

Depth
72 mm
Height
90 mm
Width
17.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,CULus,GL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
