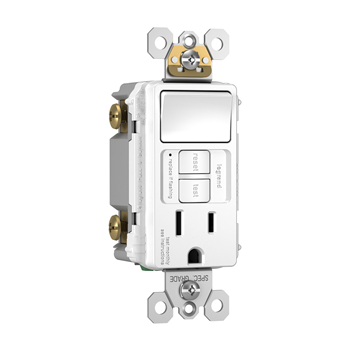

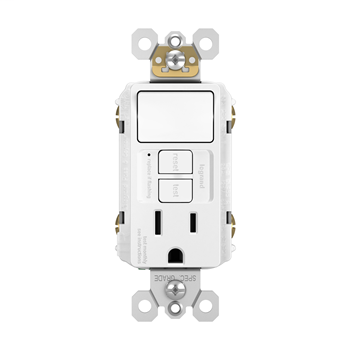

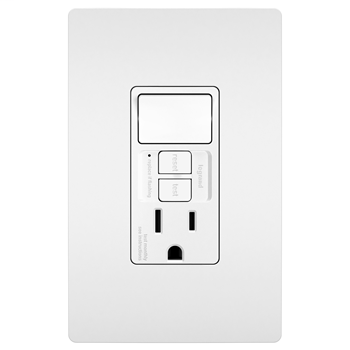

Pass & Seymour 1597-SWTTRWCC4 15 Amp 120/125 VAC NEMA 5-15R White Thermoplastic Self-Test Combination Switch/GFCI Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # 1597-SWTTRWCC4 | Cooper Electric Part # 1055933
$50.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
This item has been discontinued. Please substitute part number 1597SWTTRWCCD4. The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space. For detailed GFCI receptacle information, visit our GFCI Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
NEMA
5-15R
Voltage
125 Volt

Manufacturer Information

Brand
radiant

General Product Info

12-Digit UPC
785007049350
Color
White
GTiN
00785007049350
Product UPC
78500704935

Certifications and Compliance

Country of Origin
China
Features
  • Part of the radiant® collection
  • Switch rating: 15A, 120VAC, Single Pole
  • Single-gang device provides up-and-down switching combined with GFCI safety features. Ideal for remodeling, and perfect for bath and kitchen vents
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® Tamper-Resistant requirements
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
  • Mounting screws are shipped captive in the device and wall plate for easier installation
  • Dual-direction test and reset button colors match the device face
  • Supplied with matching TP wall plate (except NI and DB models)
  • 10kA short circuit rating
  • 20 Amp feed-thru capacity
