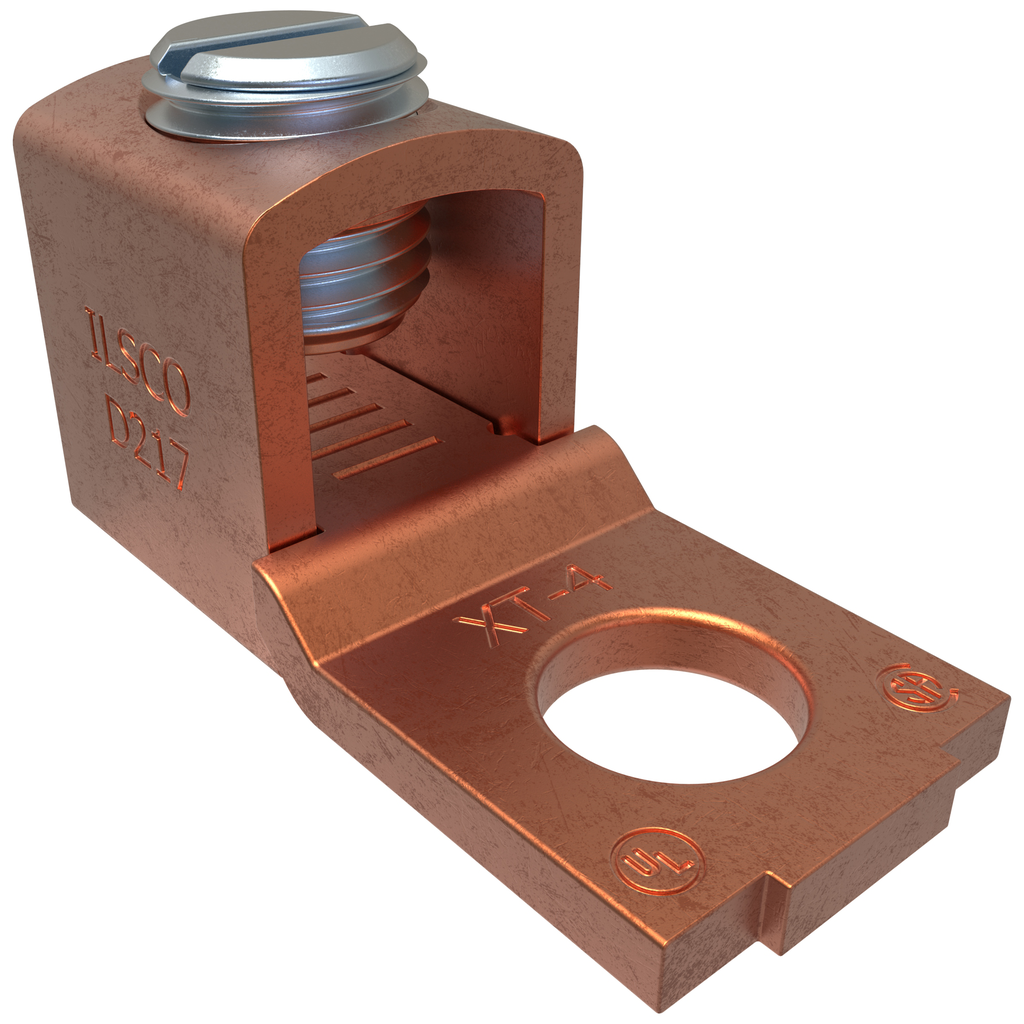

Product image for Ilsco XT-4 Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
Email

Ilsco XT-4 Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # XT-4 | Cooper Electric Part # 105556
$8.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 1, 2, 4 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Terminating Connector
Bolt Size
1/4 in
Conductor Material
Copper
Conductor Size
14-4 AWG
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.265 in
Number of Conductors
1,2,4
Number of Holes
1 Hole
TC Connection
Mechanical
Temperature Rating
90 degrees C
Tongue Type
Straight
Type
XT
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669957556
Color
Copper
Finish
Bare
GTiN
00783669957556
Product UPC
78366995755
Weight
0.034 lb

Dimensions

Height
0.575 Inch
Length
1.12 Inch
Width
0.5 in
