LEV 16352-2PW WH DEC REC SPLIT W/2P

Manufacturer: Leviton Mfg Co | Catalog # 16352-2PW | Cooper Electric Part # 1055176
$24.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

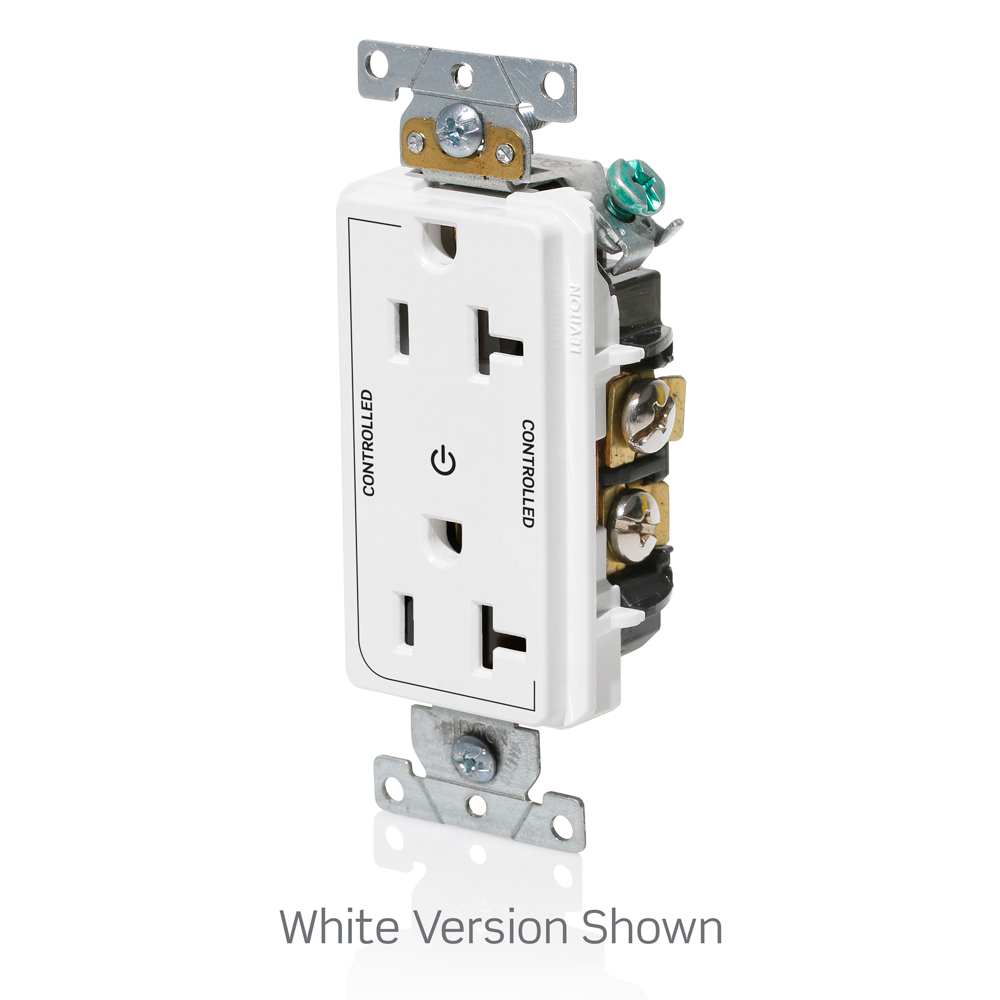

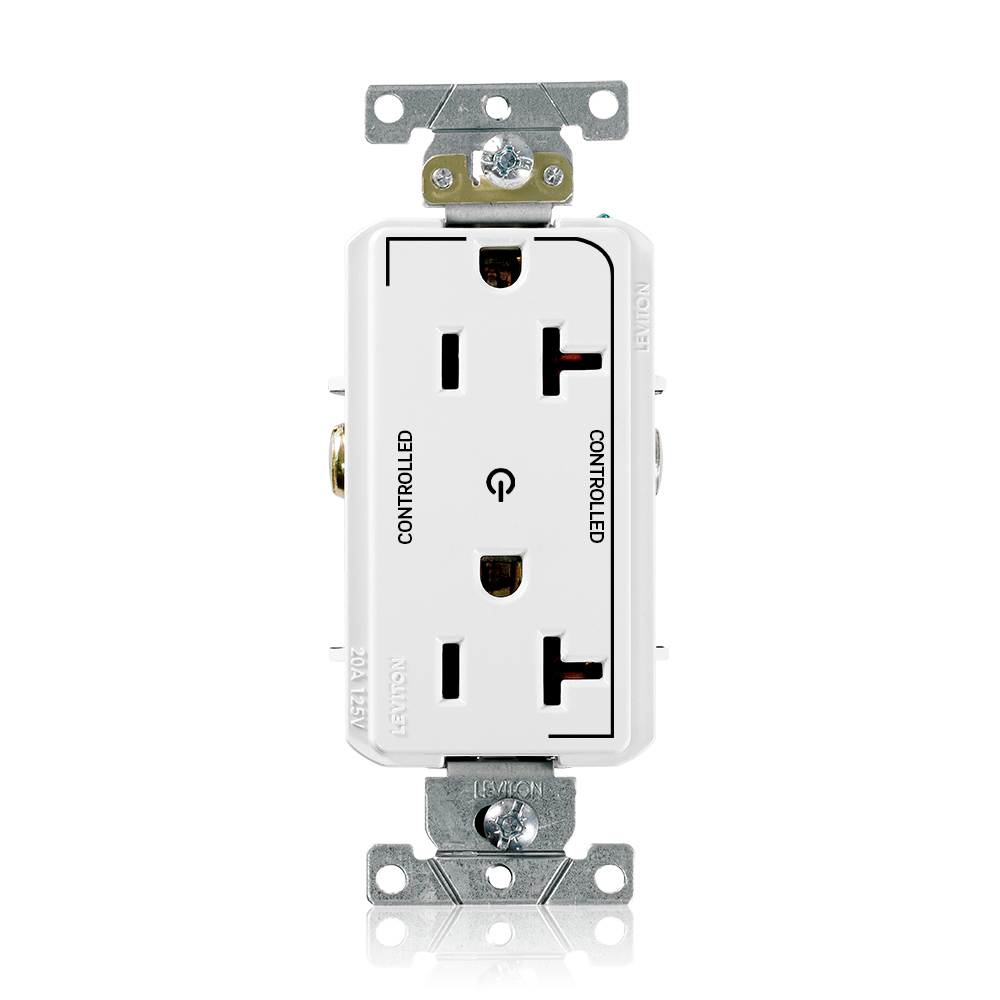

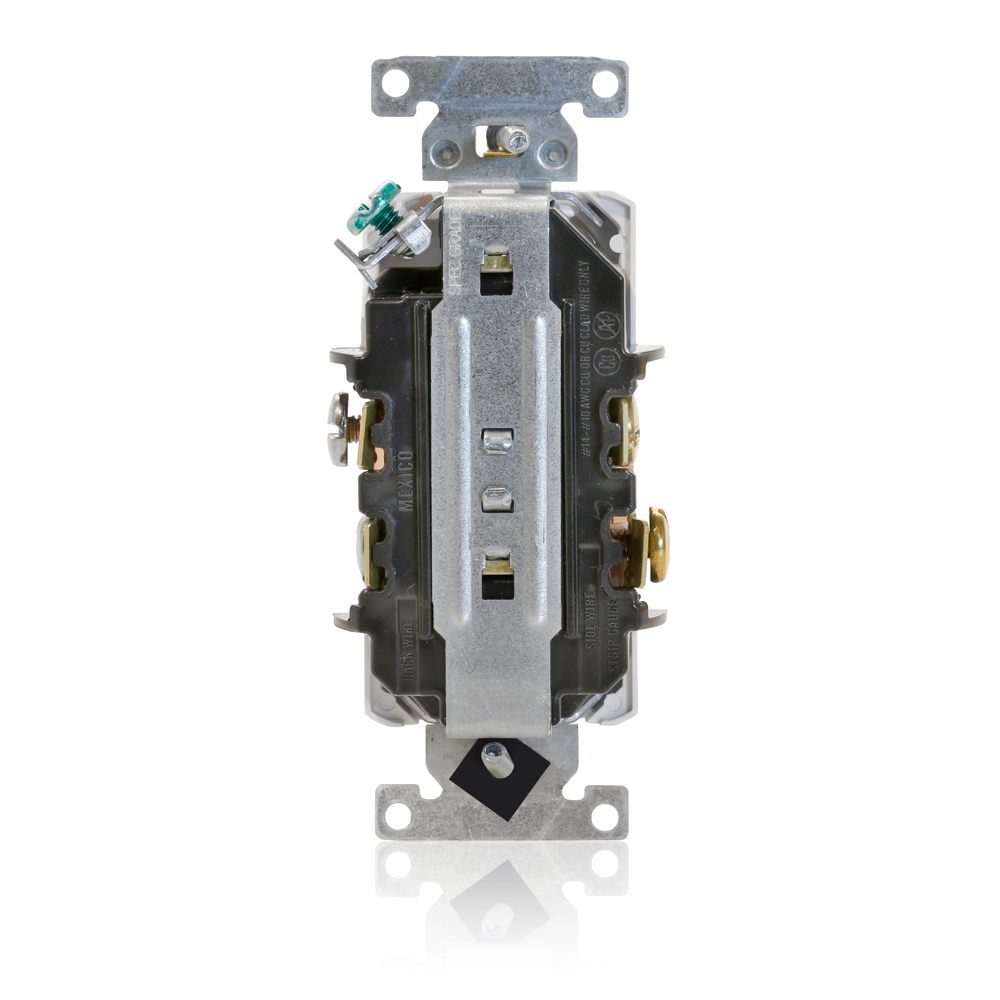

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Two Outlets Marked "Controlled", Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Standard
ANSI C-73
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Decora Duplex Receptacle
Voltage
125 Volt
Wire Count
3
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477705018
Color
White
GTiN
00078477705018
Product UPC
07847770501

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-20R
Patents
  • MX321216
  • US8684771
Features
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Color Variations
  • Brown
