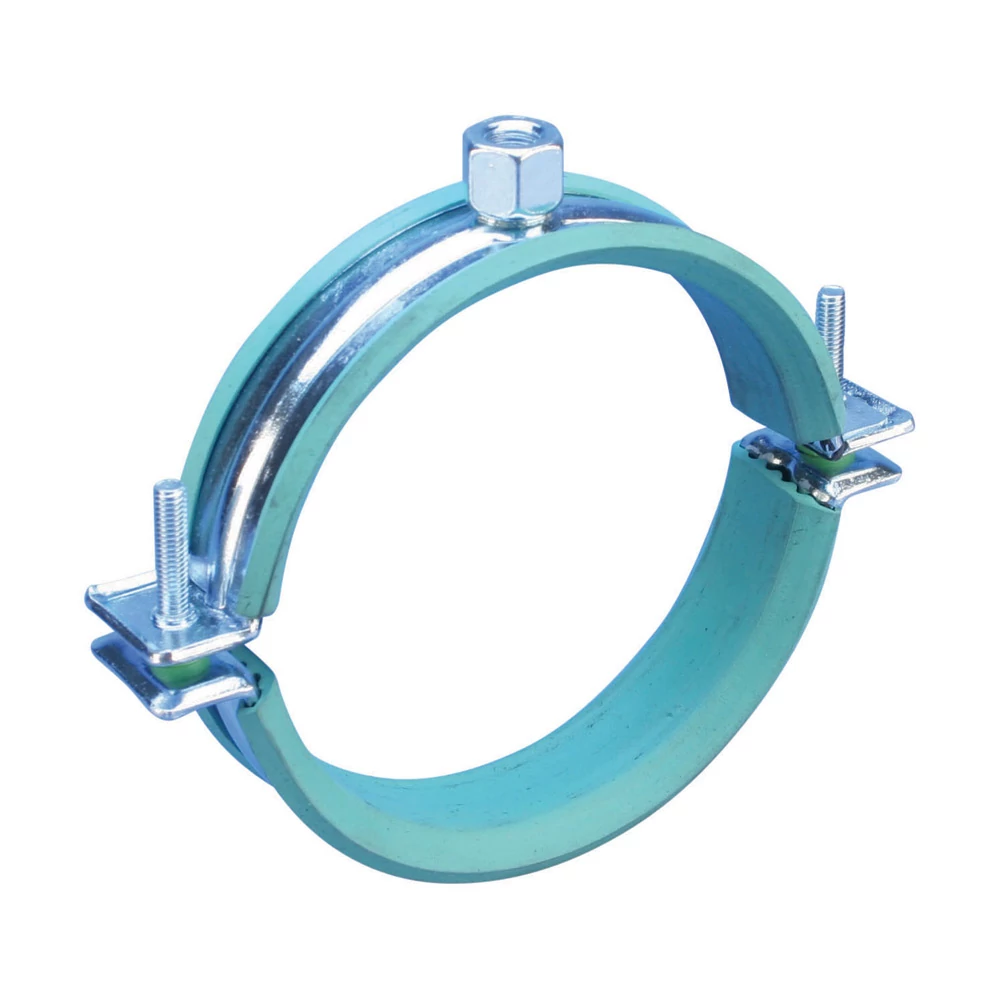

Product image for Caddy 4300300EG Caddy Macrofix Plus LF Low-Friction, 3.5" OD, 3" Pipe, 90mm Plastic Pipe
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Caddy 4300300EG Caddy Macrofix Plus LF Low-Friction, 3.5" OD, 3" Pipe, 90mm Plastic Pipe

Manufacturer: Erico, Inc | Catalog # 4300300EG | Cooper Electric Part # 1054190
$1,449.96/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
nVent CADDY Macrofix Plus LF Low-Friction, 3.5" OD, 3" Pipe, 90 mm Plastic Pipe

Technical Information

Applications
HVAC, Plumbing and Refrigeration
Material
Steel
Operating Temperature
-58 To 230 degrees F
Pipe Size
3 in
Standard
None
Type
CADDY MACROFIX PLUS LF Low-Friction

Packaging

Standard Packaging Qty
25 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856657804
Color
Green
Finish
Electro Galvanized
GTiN
00782856657804
Product UPC
78285665780
Weight
0.24 kg

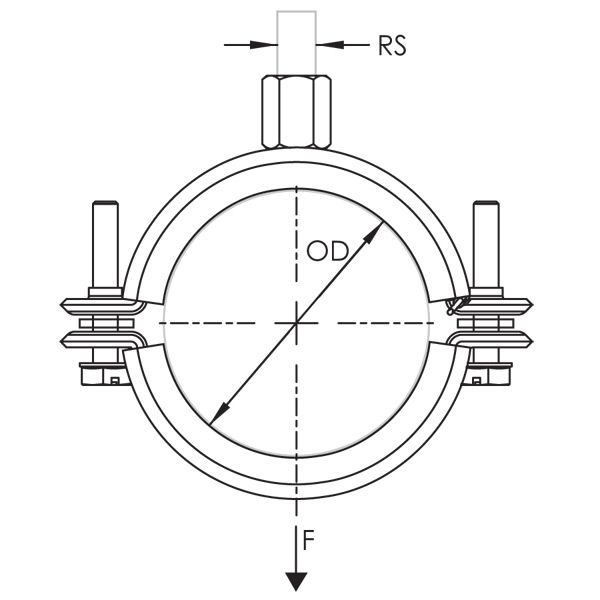

Dimensions

Outer Diameter
3 1/2 in

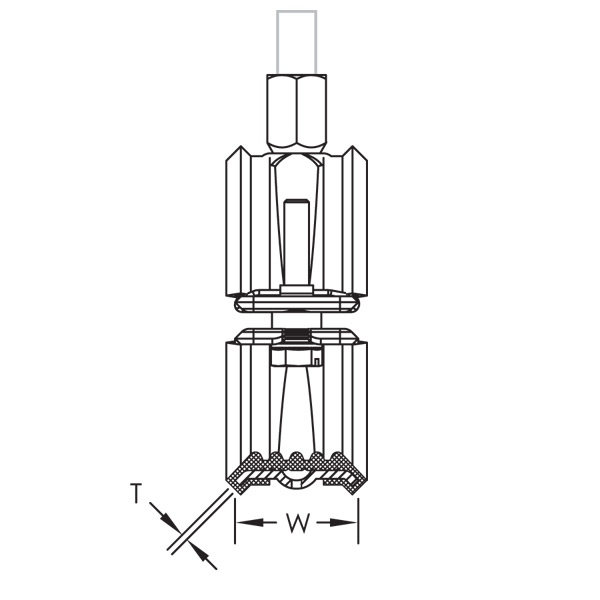

Thickness
1/16 in
Width
1 3/16 in
Features
  • Includes easy closing mechanism
  • Age resistant lining designed specifically for plastic pipe applications
  • Low-friction properties allow for expansion, contraction and easy sliding of pipe
  • Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
  • Category II noise reduction according to DIN EN ISO 3822-1
  • Compliant for sound insulation design according to DIN 4109
