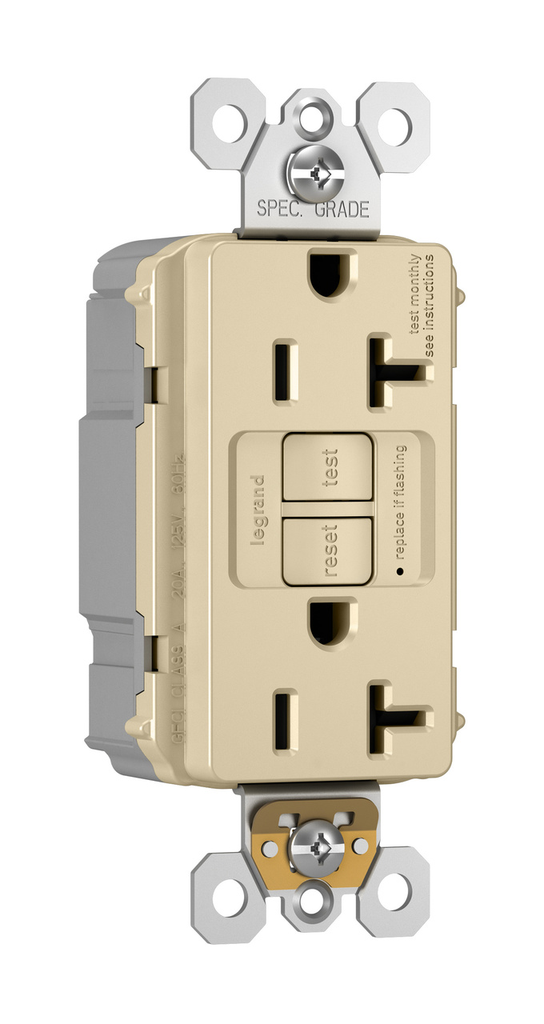

Product image for Pass & Seymour PT2097-I 20A 125V Plugtail Self-Test GFCI Duplex Receptacle - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

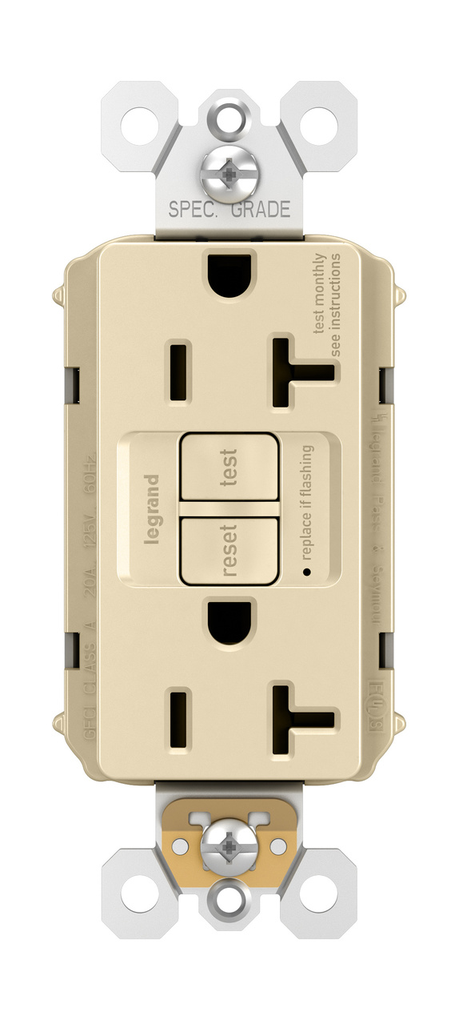

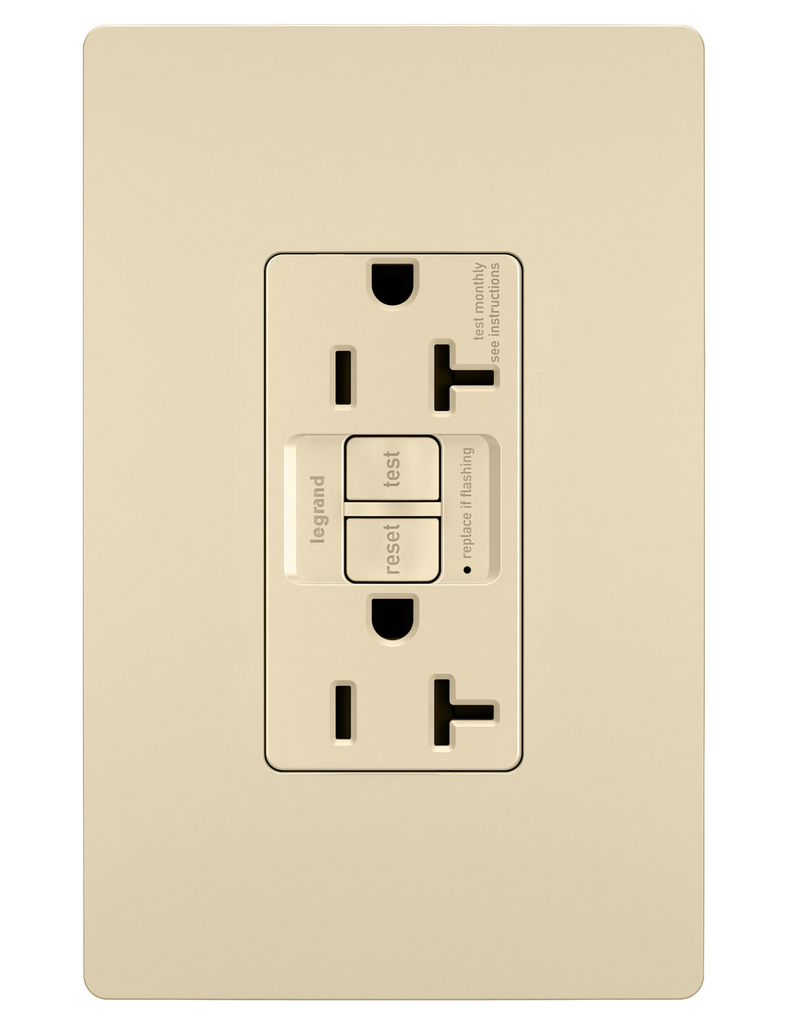

Pass & Seymour PT2097-I 20A 125V Plugtail Self-Test GFCI Duplex Receptacle - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # PT2097I | Cooper Electric Part # 1052981
$58.68/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
27 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual Product Brochure
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail information, visit our PlugTail Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
For Commercial/Residential Use
Connection Type
Built-In
Frequency
60 Hz
Grade
Specification
Interrupt Rating
4.0 A
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Built-in Connector
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
PLUGTAIL® Specification Grade 20A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007048162
Color
Ivory
Environmental Conditions
95% Humidity
Finish
Matte
GTiN
00785007048162
Product UPC
78500704816

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.72 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
Features
  • Conducts an automatic test every three seconds, ensuring its always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven
  • SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Faster, more reliable installation
  • No exposed terminals create a finger-safe application before, during, and after installation
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector
  • GFCI works with the existing 3-wire PlugTail connectors creating a non-feed-through application for facility
  • Zinc-plated steel mounting strap
