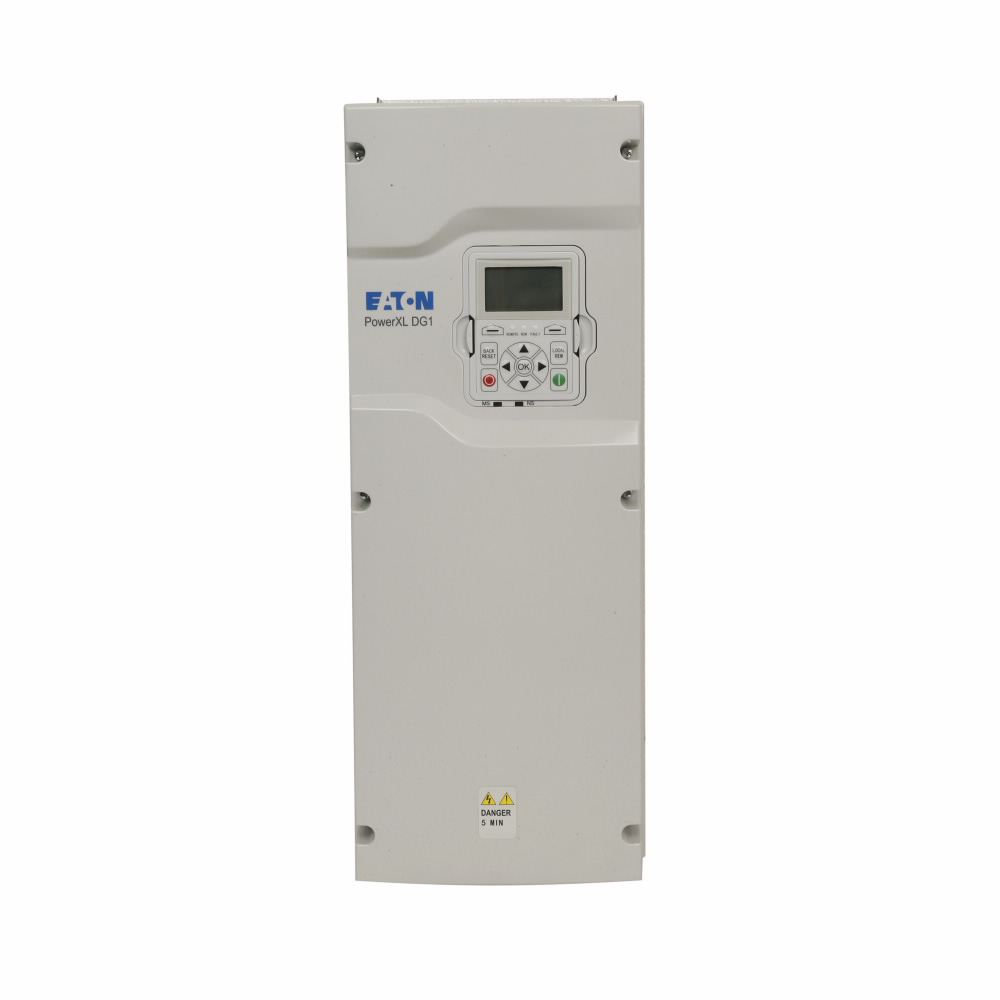

Product image for ETN DG1-34046FB-C21C DG1,480V FR3 ,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

ETN DG1-34046FB-C21C DG1,480V FR3 ,

Manufacturer: Cutler-Hammer / Eaton | Catalog # DG1-34046FB-C21C | Cooper Electric Part # 1052415
$5,324.64/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

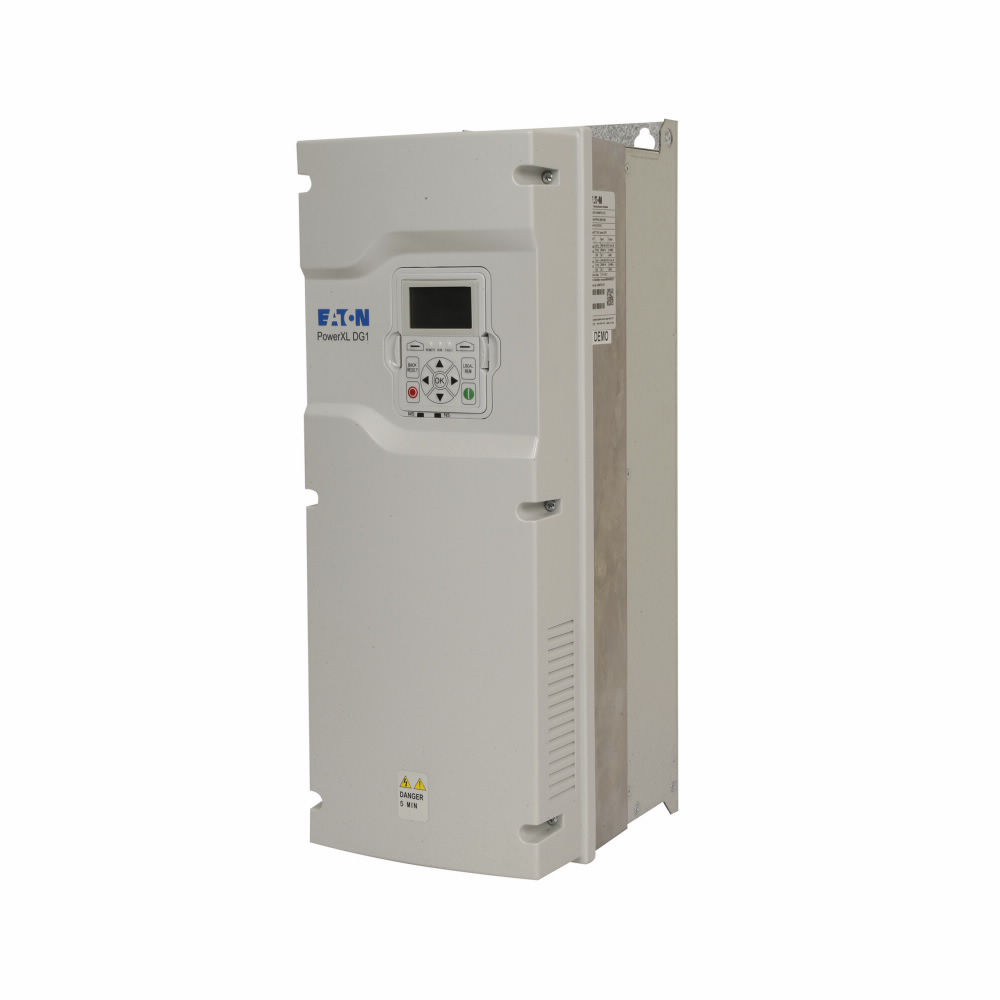

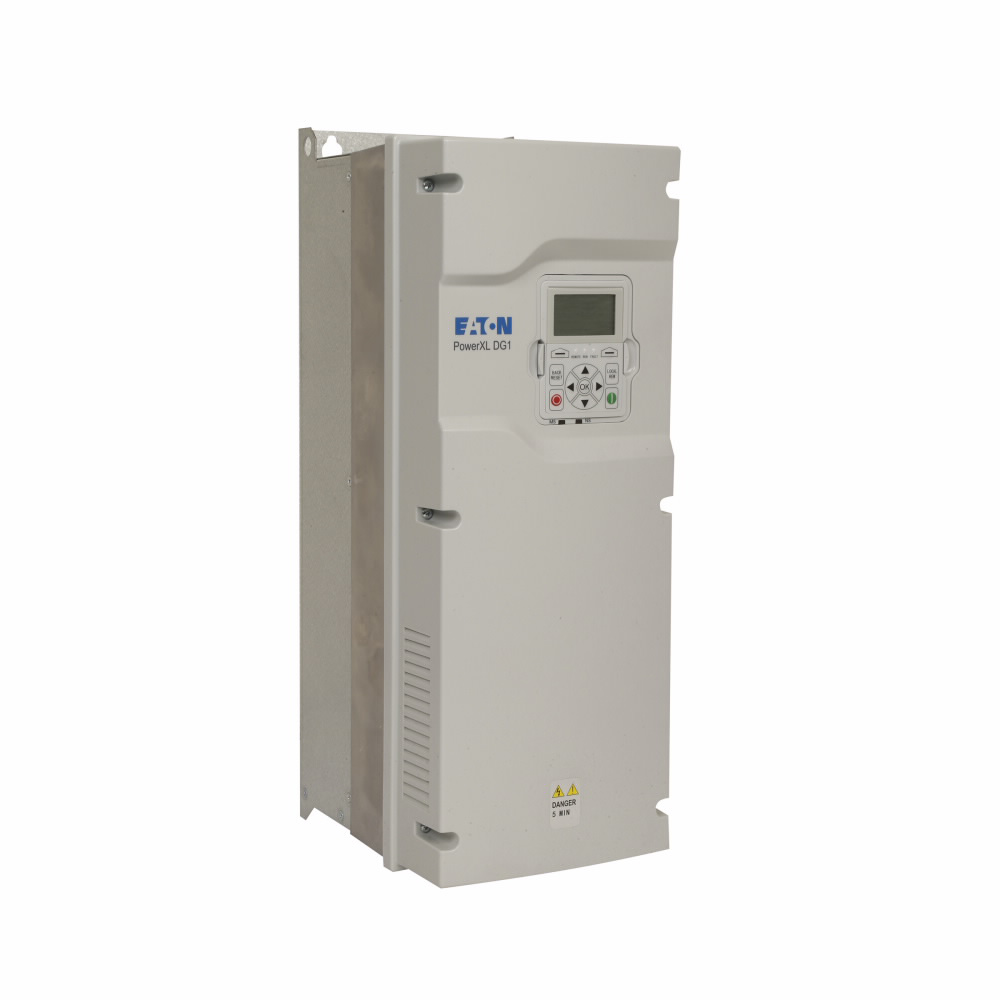

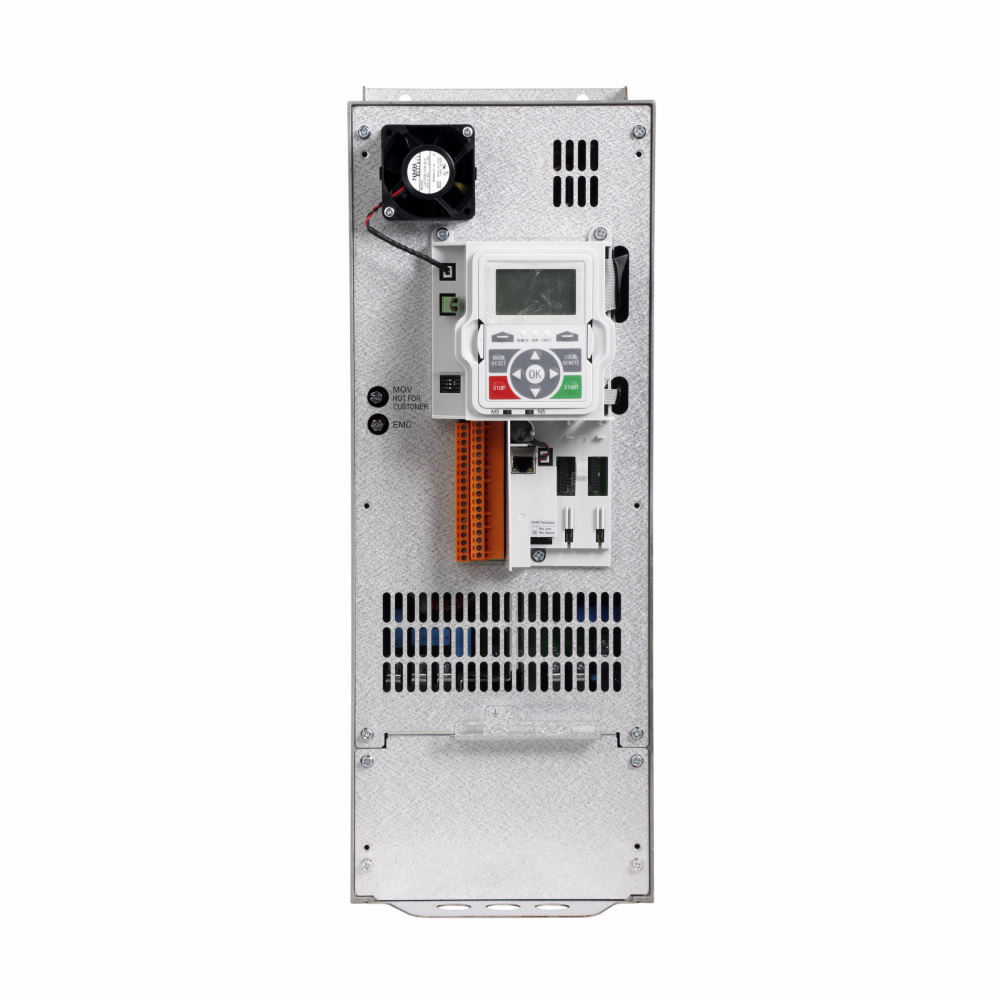

Eaton PowerXL DG1 variable frequency drive, 380-500V input 22 kW 30 Hp CT 3PH 50/60 Hz 46A output IP21/type 1 FR4 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper

Technical Information

Applications
Commercial, Institutional Buildings, Structures
Display Type
LCD
Enclosure
IP21/type 1 enclosure
Frame
4
Frequency
50-60 Hz
Horsepower
30 hp
Input Voltage
380 V
IP Rating
IP21
Material
Coated Board
NEMA Size
1
Number of Phases
3 Phase
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Type
Variable Frequency Drive
Wattage
22 kW

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685878775
GTiN
00786685878775
Product UPC
78668587877
Weight
51 lb

Dimensions

Height
16 Inch
Length
27-1/2 Inch
Width
11.5 in
