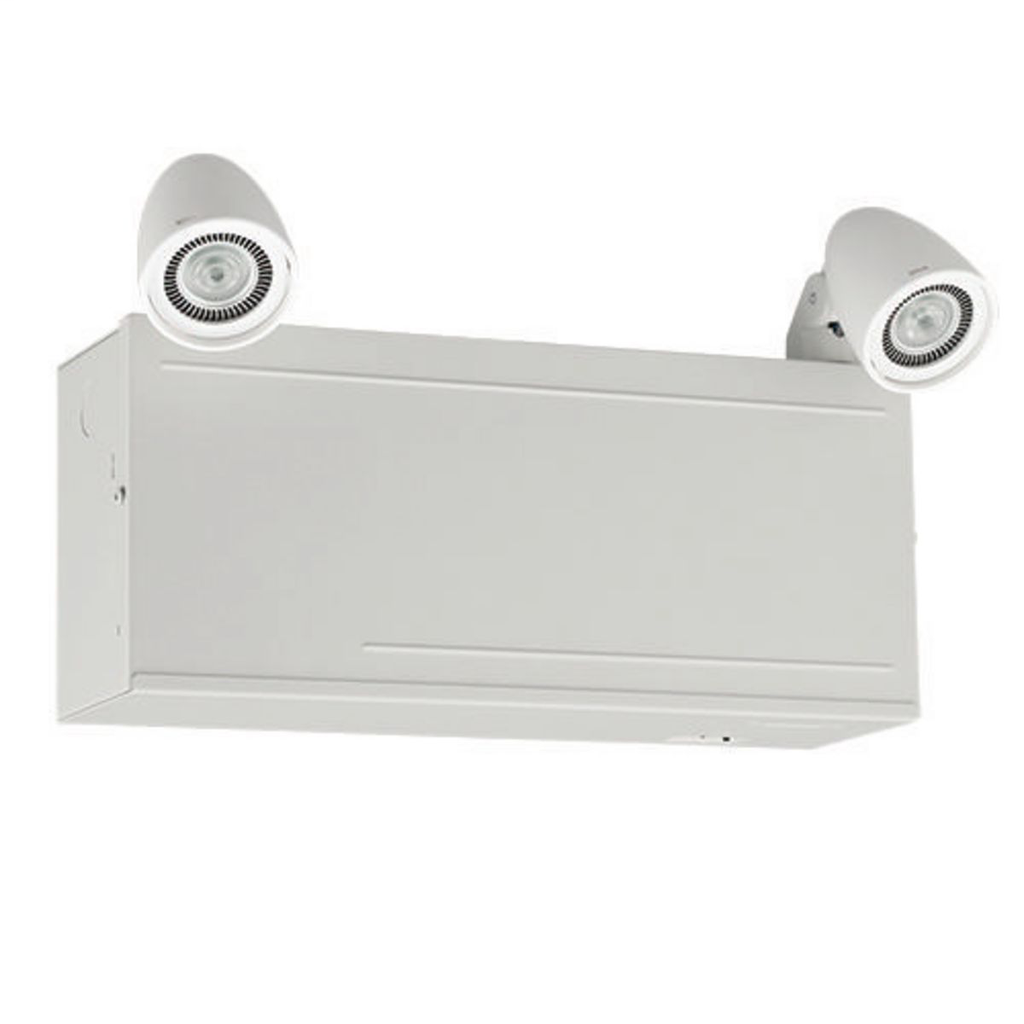

DUAL LM36CH LIGHT EM HI CAPACITY CH

Manufacturer: Dual-Lite | Catalog # LM36CH | Cooper Electric Part # 1052179
$422.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual Safety Data Sheet Product Brochure
LM Series, Battery Type: Lead Calcium, Color: White, Number of Lamps: 2, Lamp Type: PAR 36, Voltage Rating: 120/277 VAC, Wattage: 36 W.

Technical Information

Applications
Conditioned Space;Damp location
Bulb Shape
PAR36
Lamp Wattage
33 W
Mounting Type
Universal Wall Mounting Pattern
Number of Lamps
2
Size
13.5000 in x 3.8750 in x 11.5000 in
Type
Non-Reversing
Voltage
120/277 Volt
Wattage
36 Watt

Manufacturer Information

Brand
Dualite Sales & Service, Inc.

General Product Info

12-Digit UPC
782520844295
Color
White
Finish
White
Fixture Type
High Capacity Emergency Light
GTiN
00782520844295
Product Series
LM Series Emergency Light
Product UPC
78252084429
Weight
5.6 lb

Dimensions

Height
11-1/2 Inch
Length
13-1/2 Inch
Width
3.875 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Country of Origin
China
Features
  • LM2-03L, LM33-03L and LM33I-03L include 3W LED lamp-heads
  • White, corrosion-resistant metal housing and front-loading cover
  • Choice of lead-calcium or nickel-cadmium maintenance-free batteries
  • Capacities up to 130 watts
  • Lampheads may be top or side mounted
  • City of Chicago approved models available
  • Low-voltage battery disconnect
  • 3-Conductor AC Line Cord
Ambient Temp. Range
  • Standard (68°F - 86°F) 20°C - 30 °C
  • Damp Location model: (50°F - 104°F) 10°C - 40 °C
  • NiCad models: (68°F 86°F) 20°C - 30 °C
Light Source
  • LED
  • Incandescent
Certified Listed
  • NFPA 101 (Life Safety Code)
  • NFPA 70 (National Electrical Code)
  • Listed to UL 924 Damp Location
Listings
  • UL
  • UL 924
Number of Lamps
  • Two emergency lighting heads supplied standard
  • Available without lamp heads
  • Available with up to 4 lamp heads
Application
  • Conditioned Space
  • Damp location
Lamp Type
  • 3W LED included with LM2-03L, LM33-03L and LM33I-03L
  • Two 7.2 watt Incandescent standard
  • Halogen
Voltage Rating
  • 120 V
  • 277 V
