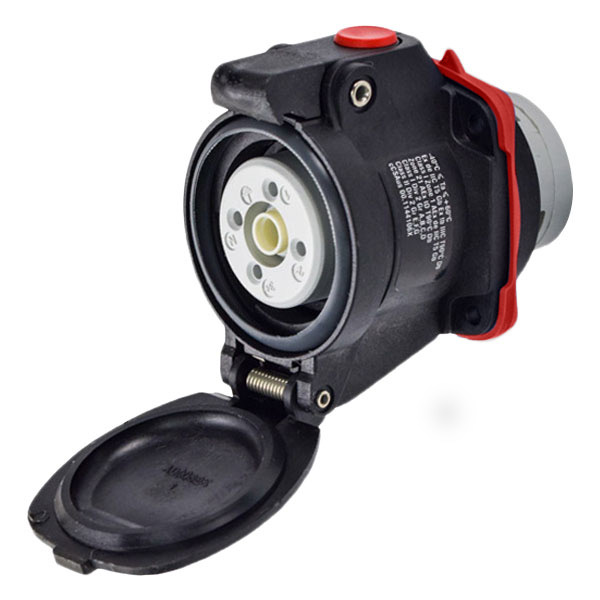

Product image for Meltric 22-14047 DXN20 Receptacle, Poly, Black, Size 1, IP66/IP67, 3P+N+G, 20A, 480 VAC, 60 Hz
Email

Meltric 22-14047 DXN20 Receptacle, Poly, Black, Size 1, IP66/IP67, 3P+N+G, 20A, 480 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 22-14047 | Cooper Electric Part # 1050687
$548.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Receptacle, With Neutral, Ground, Application: Refineries, Silos, Hazardous Environment, Standard: CSA, IEC, ATEX, Number Of Poles: 3, Number Of Wires: 5, Wire Size: 20 to 10AWG, Amperage Rating: 20AMP, Voltage Rating: 480V, Material: Polyester, Color: Bl

Technical Information

Amperage
20 Amp
Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Conductor Size
16-10 AWG
Contact Configuration
3P+N+G
Current
20 Amp
Frequency
60 Hz
Horsepower
7.5 hp
IP Rating
66,67
Material
Polyester
Max Operating Temperature
140 degrees F
Number of Poles
3 Pole
Number of Wires
5 Wire
Short Circuit Current Ratng
30 A
Size
1
Standard
CSA,UL E3803
Strip Length
1/2 in
Type
Receptacle
Voltage
480 Volt
Wire Size
20-10 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474610995
Color
Black
Environmental Conditions
95% Relative Humidity
GTiN
00784474610995
Product Series
36
Product UPC
78447461099

Certifications and Compliance

CSA
208161,C22.2 No. 182.1-13,CCSAus
Ex Ratings
  • -40C < Ta < +60C
  • Ex de IIC T5 Gb Ex tb IIIC T90C Db
Hazardous Location Ratings
  • -40C < Ta < +60C
  • Class l Zone1 AEx de llC T5 Gb
  • Zone 21 AEx tD T90C Db
  • Class I Div 2 Gr A,B,C,D
  • Class II Div 2 Gr E,F,G
