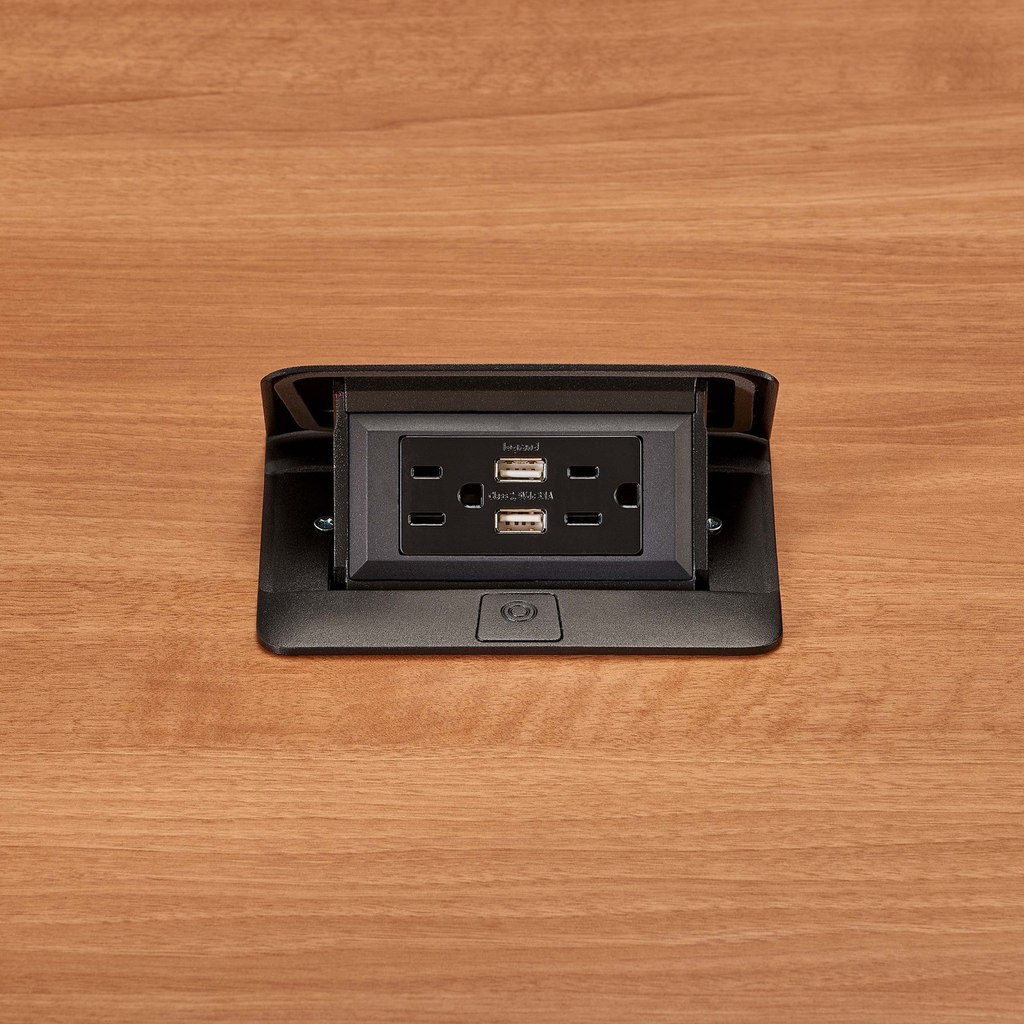

Product image for P&S DQFP15UBK BLACK, 15A TR DUPLEX
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

P&S DQFP15UBK BLACK, 15A TR DUPLEX

Manufacturer: The Wiremold Co | Catalog # DQFP15UBK | Cooper Electric Part # 1049679
$262.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual CAD Drawing #1
Unit includes one (1) 15A black tamper-resistant duplex receptacle. Unit comes with a 6' (1.83m) cord. Comes with a black powder coat finish.

Technical Information

Amperage
15 Amp
Applications
Commercial, Office, Hospitality, Residential
Cable Entry
Below
Capacity
Multiple Channel
Material
Zinc Die Cast
Mounting Type
Thumb Screw
Number of Outlets
2
Size
4.75" X 5.625" X 3.50"
Type
2-Outlet, Tamper-Resistant

Manufacturer Information

Brand
Wiremold
Sub Brand
deQuorum™

General Product Info

12-Digit UPC
786776184587
Color
Black
Construction
Die-Cast
Finish
Powder Coated
GTiN
00786776184587
Product Series
DeQuorum
Product UPC
78677618458

Dimensions

Depth
3-1/2 Inch
Length
5-5/8 Inch
Width
4-3/4 in

Certifications and Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
Certifications
  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
Features
  • Sleek, Attractive Design: Slimmer, lower profile integrates well with table surfaces to enhance conference rooms, meeting rooms, hotel rooms, kitchens, and offices.
  • UL Spill Water Protection: Meets and exceeds UL1363 standard for relocatable power taps. Eliminates risk of shock or short circuiting due to moisture entering device.
  • Tamper-Resistant Receptacles: Meets 2011 NEC TamperResistant requirements. Receptacles feature our patented shutter system that prevents the insertion of foreign objects for safety.
  • USB Charging Capability: Duplex 3.1A USB receptacles provide charging capacity for a wide range of mobile devices.
  • New Soft Opening Cover Mechanism: Opening and closing the cover is quieter and easier with a more professional feel.
  • Multiple Cover Finish Options: Durable black powder coat and brushed stainless steel finishes blend with most decors.
  • Expanded Configuration Options: Accepts full size receptacles which provides expanded custom flexibility. Consult factory for more information.
  • cULus Listed: Meets UL US and Canadian safety standards for Relocatable Power Taps (File E66421, Guide XBYS) and Mulitoutlet Assemblies (File E15191, Guide PVGT).
