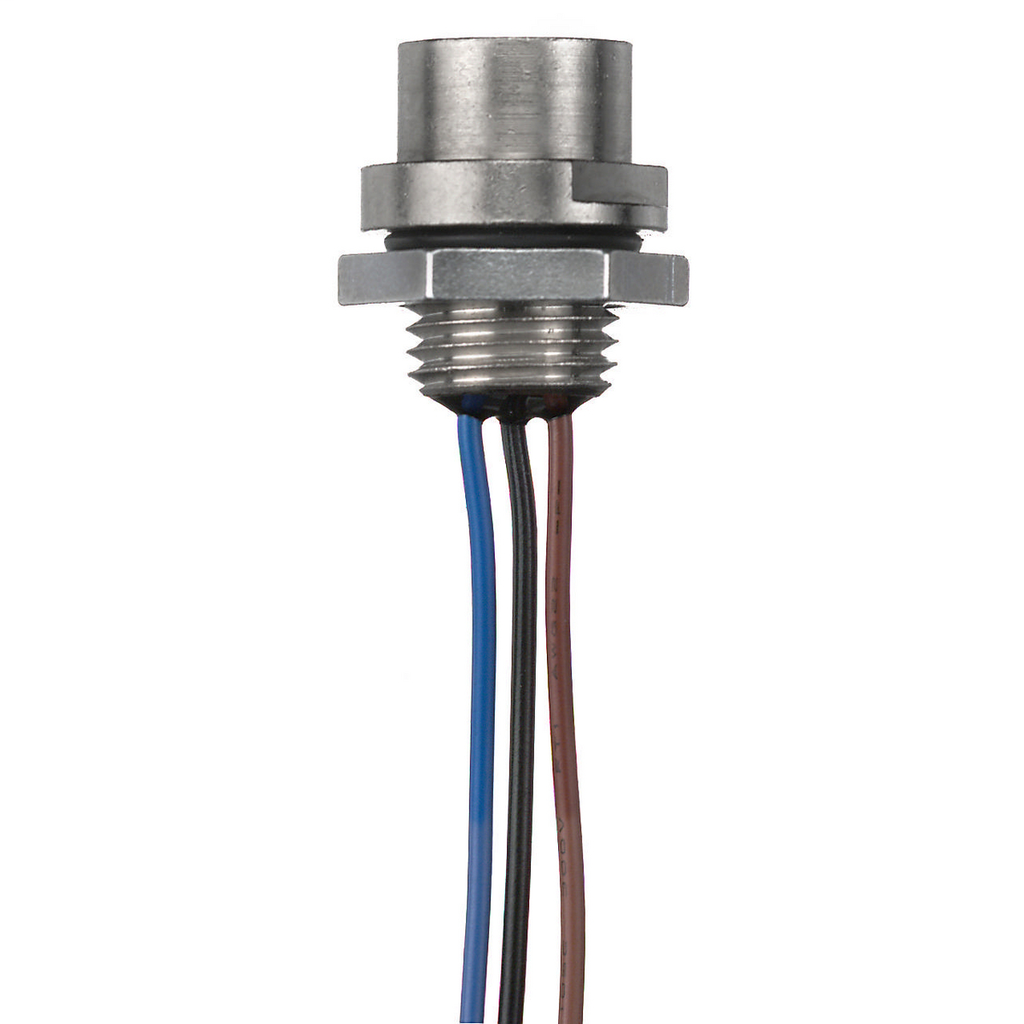

Product image for HWDK MFMS13325 MCQK,FEM INV S RCP,M
Email

HWDK MFMS13325 MCQK,FEM INV S RCP,M

Manufacturer: Hubbell Wiring Device | Catalog # MFMS13325 | Cooper Electric Part # 1049560
$34.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Micro-Quick Control Connectors, Female Inverse Receptacle, 3P, Single Key, M14

Technical Information

Amperage
5 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Size
22 AWG
Conductor Type
Copper
Contact Material
Beryllium Copper,Brass
Current
5 Amp
Insulation Material
Nylon 6/6
Material
Composite
Number of Conductors
3
Number of Poles
3 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Type
Female Receptacle
Voltage
300 Volt
Wattage
1500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Micro-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585225876
Color
Metallic
Construction
Metallic Shell
GTiN
00783585225876
Product UPC
78358522587

Dimensions

Height
8.8 Inch
Length
5.6 Inch
Width
1.000 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Performance
  • Electrical - Amperage - #22 AWG - 2&3P=5A, 4&5P=4A, 6P=3A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 10 Megaohm
  • Electrical - Voltage Rating - 300V DC/300V AC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - #22 AWG PVC cable: -20°C to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E192071
Features
  • Black overmold and cable
  • Beryllium copper socket contacts
  • Single Key
  • Plating resists corrosion in high abuse environments
  • Nickel plated brass coupling nuts and receptacle shells
