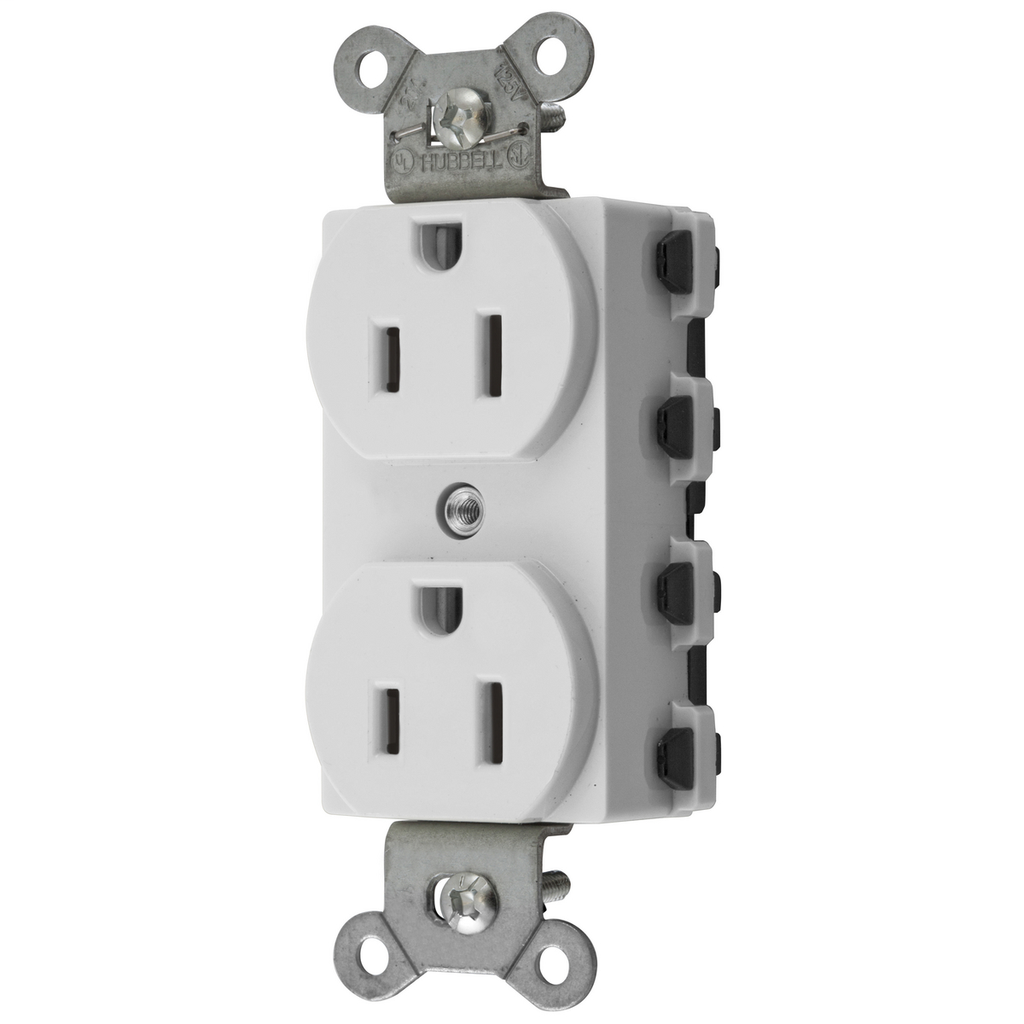

Product image for HCI SNAP5262WNA SNAP2CONNECT DPLX 1
Email

HCI SNAP5262WNA SNAP2CONNECT DPLX 1

Manufacturer: Hubbell Wiring Device | Catalog # SNAP5262WNA | Cooper Electric Part # 1047748
$12.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Straight Blade Devices, Receptacles, Duplex, SNAPConnect 2, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack, USA.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Specification Grade
Conductor Size
12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Finder Groove Face
TC Connection
Connectorized
Type
Non-Reversing
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585540443
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585540443
Product Series
Extra Heavy Duty
Product UPC
78358554044
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.56 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Audible SNAP, indicates solid connection
  • Quick Connect- SNAPConnect, USA Product
  • Reduces installation time
  • Fully insulated design
