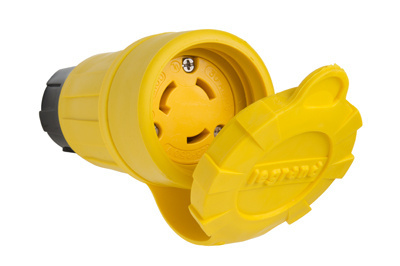

P&S 29W08 TL CONN IP67 3W 30A 125/

Manufacturer: Pass & Seymour / Legrand | Catalog # 29W08 | Cooper Electric Part # 1044171
$115.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Product Brochure
Watertight Connector, 30amp 125/250volt, Non-NEMA Configuration, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated.

Technical Information

Amperage
30 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
14-10 AWG
Cord Type
12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Enclosure
Non-NEMA
Material
Rubber
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Type
Connector
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033298
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033298
Product UPC
78500703329
UNSPSC
39121403

Dimensions

Diameter
2.53 Inch
Length
4-3/4 Inch
Width
2.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
