Lithonia OLWX2-LED-90W-40K-DDB-M2 LED Wallpack, 90W, 7325 Lumens, 4000K, 120-277V, Dark Bronze Finish

Manufacturer: Lithonia Lighting | Catalog # OLWX2 LED 90W 40K DDB M2 | Cooper Electric Part # 1043205
$1,049.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

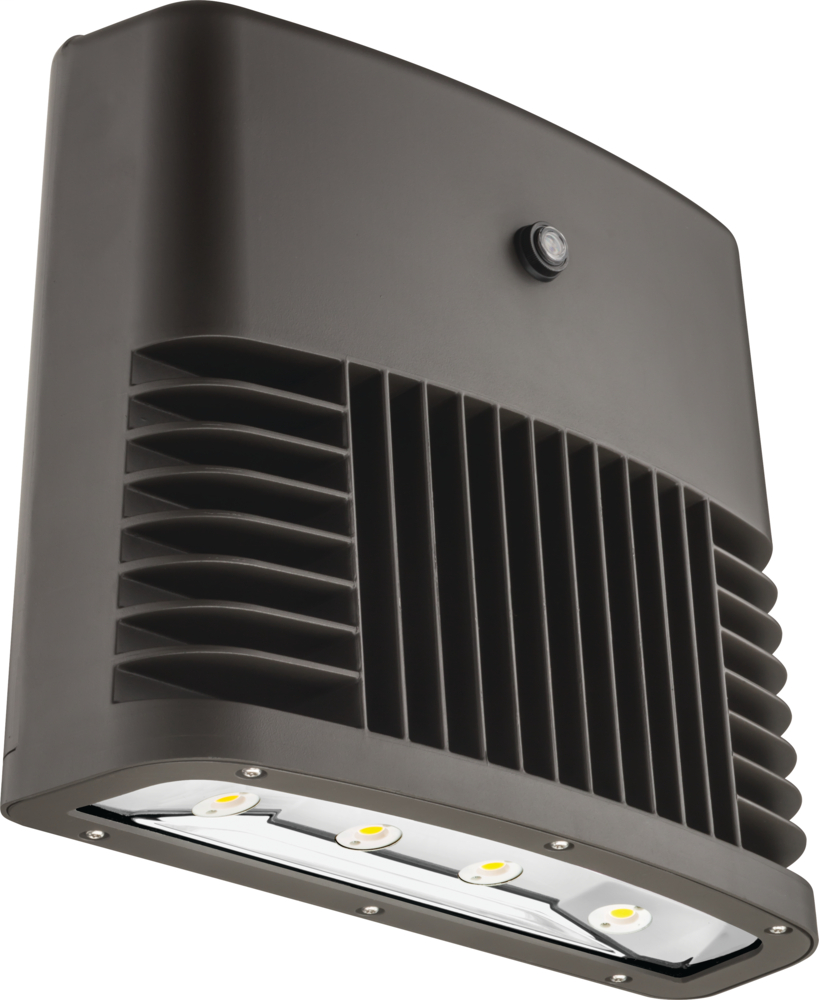

LED low profile wallpack with rugged cast-aluminium housing with dark bronze polyester powder paint for lasting durability. Integral heat sinks optimize thermal management through conductive and convective cooling. LED's are protected behind a glass lens. Housing is sealed against moisture and environmental contaminants (IP65). High-performance LEDs behind clear glass for maximum light output. Light engine consists of four high-efficiency chip on board (COB) LED's with integrated circuit boards mounted directly to housing to maximize heat dissipation and promote long life. Electronic driver has a power factor of 90% and THD. The versatile design of the OLWX2 LED combines a sleek, low-profile wall pack and high-output LEDs to provide an energy efficient, low maintenance LED wall pack suitable for replacing up to 400W metal halide luminaires. LED is ideal for outdoor applications such as building perimeters, loading areas, driveways and sign and building floodlighting.

Technical Information

Applications
For Education, Hospitality, Offices and Banks
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Fixture Wattage
90 W
Lamp Type
LED
Lumens
7,325 Lumen
Material
Aluminum
Mounting Type
Wall
Type
Low Profile
Voltage
120/347 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
888791000818
Color
Bronze
Environment
Outdoor
GTiN
00888791000818
Housing Finish
Gloss Bronze
Housing Material
Aluminum
Product UPC
88879100081
Shape
Rectangle
Weight
15.43

Dimensions

Height
13-3/4 Inch
Length
7 Inch
Warranty Length
5 yr
Width
14.5

Certifications and Compliance

Country of Origin
China
Features
  • As versatile as it is efficient, the OLWX2 is designed to replace up to 400W metal halide while saving over 88% in energy costs. It combines multiple mounting options with the latest generation of LEDs for a wall pack luminaire which is a whole lot more. Whether you are mounting it to a recessed junction box, conduit/through wiring, as an uplight, as a downlight, or as a floodlight - the OLWX2 has you covered. OLWX2 LED is ideal for outdoor applications such as building perimeters, loading areas, driveways and sign and building floodlighting.
  • The versatile OLWX2 mounts to a recessed junction box, conduit/through wiring, as an uplight, as a downlight, or as a floodlight
  • Replace up to 400W metal halide while saving over 88% in energy costs
  • None
  • UL Certified to US and Canadian safety standards and wet location and listed DesignLights Consortium (DLC) qualified product and can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
  • 120-277V and mounts to recessed junction box, surface mounting and conduit entry or using flood light mounting accessories which may be wall or ground mounted in downward or upward orientation
  • L73/100,000 hours at 25°C
  • Cast-aluminum housing with textured dark bronze polyester powder paint for durability, integral heat sinks optimize thermal management while LEDs are protected behind a glass lens and housing is sealed against moisture and environmental contaminants
  • Five-year limited warranty
  • 14-1/2 in x 12-3/4 in x 5-1/2 in
  • OLWX2 LED replaces 70W - 400W metal halide lamps saving up to 85% energy
  • OLWX is IP65 rated making it perfect for outdoor environments shining upward or downward

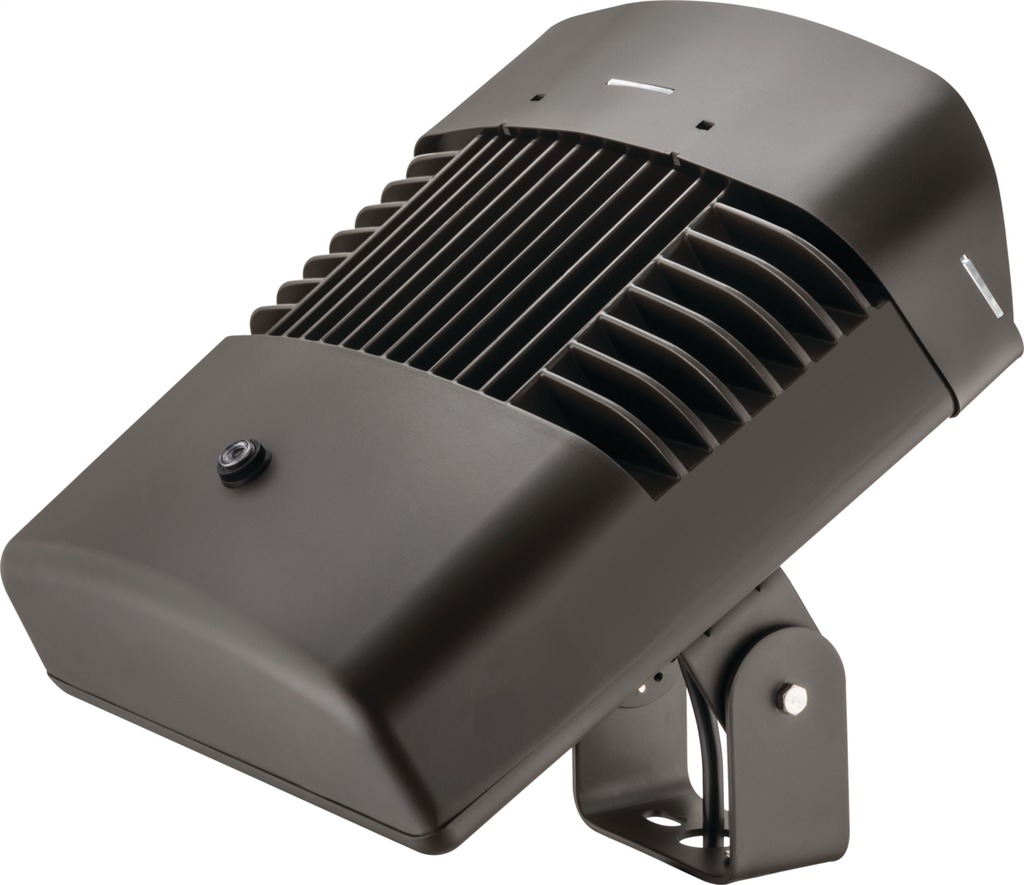

  • Yoke and slipfitter accessories are available making the OLWX to be used as a wall pack or flood light
  • Wall Pack, sleek, low-profile, floodlight, conduit, uplight, downlight, mounting options, replacement
