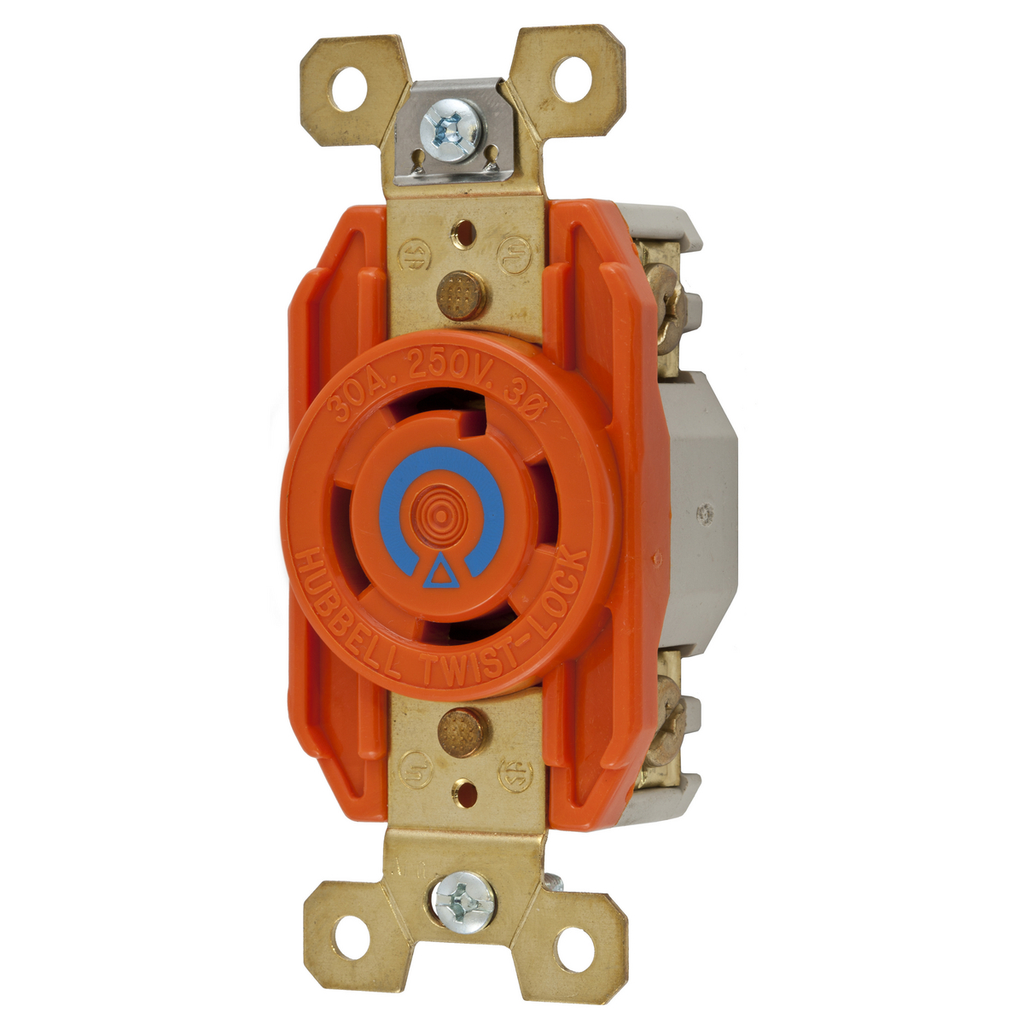

Product image for Hubbell IG2720 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30R Orange Isolated Ground Locking Single Receptacle
Email

Hubbell IG2720 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30R Orange Isolated Ground Locking Single Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # IG2720 | Cooper Electric Part # 103768
$203.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacles, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Orange

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Isolated Ground
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L15-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585872445
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585872445
Product UPC
78358587244
Weight
0.35 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Isolated Ground
