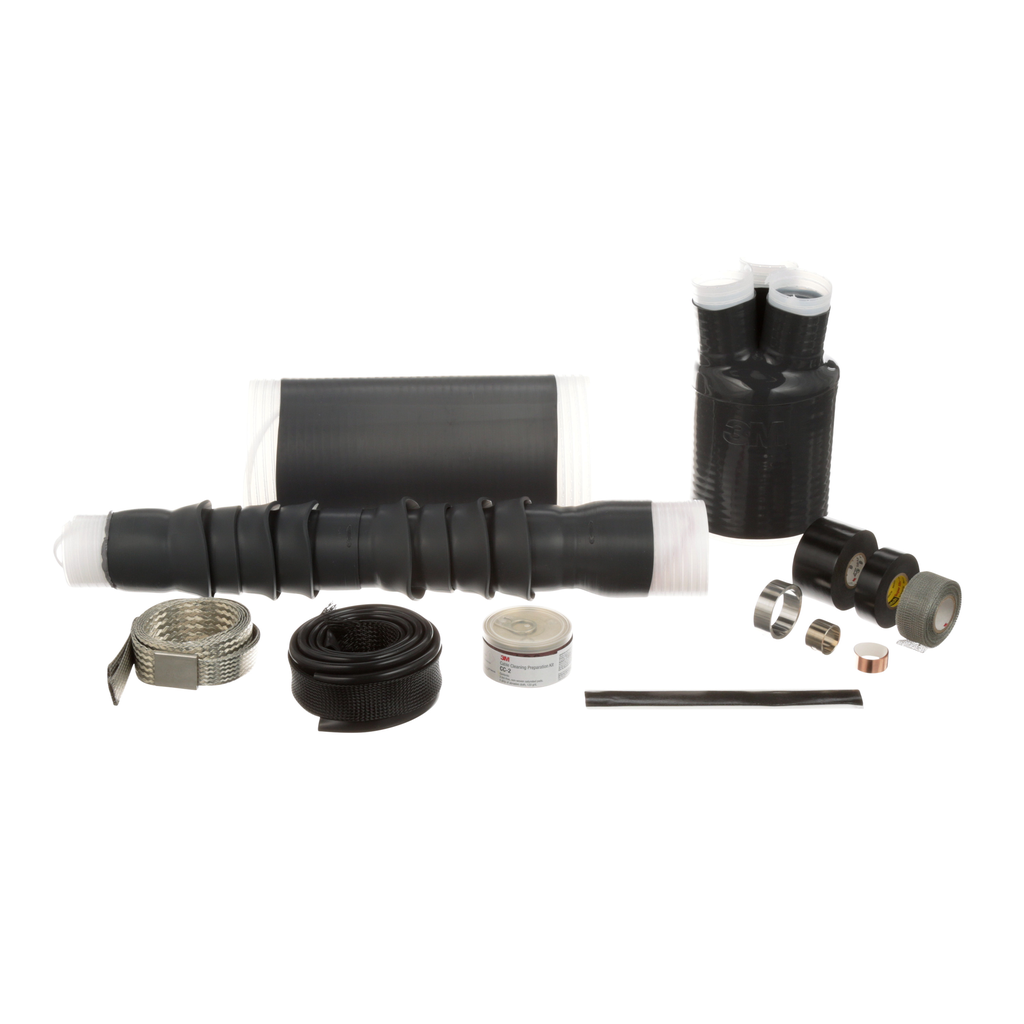

Product image for 3M 7000132900 3M™ Cold Shrink QT-II
Email

3M 7000132900 3M™ Cold Shrink QT-II

Manufacturer: 3M | Catalog # 7000132900 | Cooper Electric Part # 1037437
$2,510.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
3M™ Cold Shrink QT-III, Three Conductor Termination Kit 7620-S-3G Series are skirted and designed for outdoor installations of medium voltage 3/C shielded power cables with internal ground wires. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination.

Technical Information

Applications
Cable Connection
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
Indoor Outdoor
Outdoor Skirted
Insulation Diameter Range
29.972 mm
Number of Conductors
3
Shielding Type
Tape Shield,UniShield®,Wire Shield
Splice Type
Inline
Type
QT-III
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007436874
GTiN
00054007436874
Product Series
7600-S-3G
Product Type
Splice
Product UPC
05400743687

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
