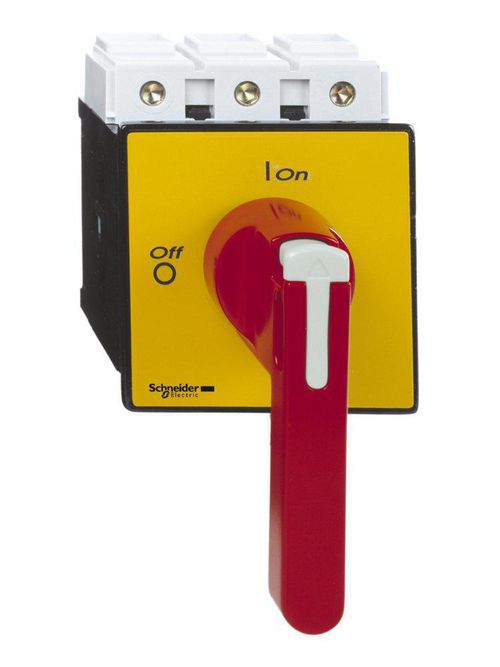

Square D VCF6 690 VAC 115 Amp 3-Pole Motor Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # VCF6 | Cooper Electric Part # 1037038
$605.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
VCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 45kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF6 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 45kW@400V AC-23. It consists of a V6 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V6 and a long red handle with yellow plate, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).

Technical Information

Actuator
RED,ROTARY HANDLE
Amperage
83 Amp AC-23 UE: 400 V
Applications
MAIN SWITCH DISCONNECTOR
Contact Configuration
3 NO
Control Type
Rotary handle
Enclosure
IP65-IP20 CONFORMING TO IEC 60529
Interrupt Rating
1.4 kAIC
Net Weight
1.2 kg
Number of Poles
3 Pole
Operating Cycles
30000 CYCLES DC-1...5-30000 CYCLES AC-21
Operating Temperature
-4122 degrees F (-2050 degrees C)
Range
TeSys
Size
125 MM,90 MM,90 X 90 MM
Standard
IEC 60947-3
TC Connection
POWER CIRCUIT SCREW CLAMP TERMINALS 95-95 MMA SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 70-70 MMA FLEXIBLE - WITH CABLE END
Type
EMERGENCY STOP SWITCH DISCONNECTOR
Voltage
690 Volt
Wattage
30 kW 230...240 Volt AC-3)-37 kW 400...415 Volt AC-3)-37 kW 690 Volt AC-3)-45 kW 500 Volt AC-3)-45 kW 690 Volt AC-23 Amps)-55 kW 500 Volt AC-23 Amps)-30 kW 230...240 Volt AC-23 Amps)-45 kW 400...415 Volt AC-23 Amps)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS VARIO,VCF

General Product Info

12-Digit UPC
389110804648
Environmental Conditions
OPEN
GTiN
03389110804645
Handle Color
Red
Product UPC
78590170235
Weight
1.2 kg

Dimensions

Height
125 mm
Warranty Length
18 mth
Width
90 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GL,UKCA,UL
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • VZ7
  • VZ20
  • VZ10
  • VZ16
Cross Sell Products
  • KCF3PZ
  • V6
Related Products
  • KCF3PZ
  • V6
