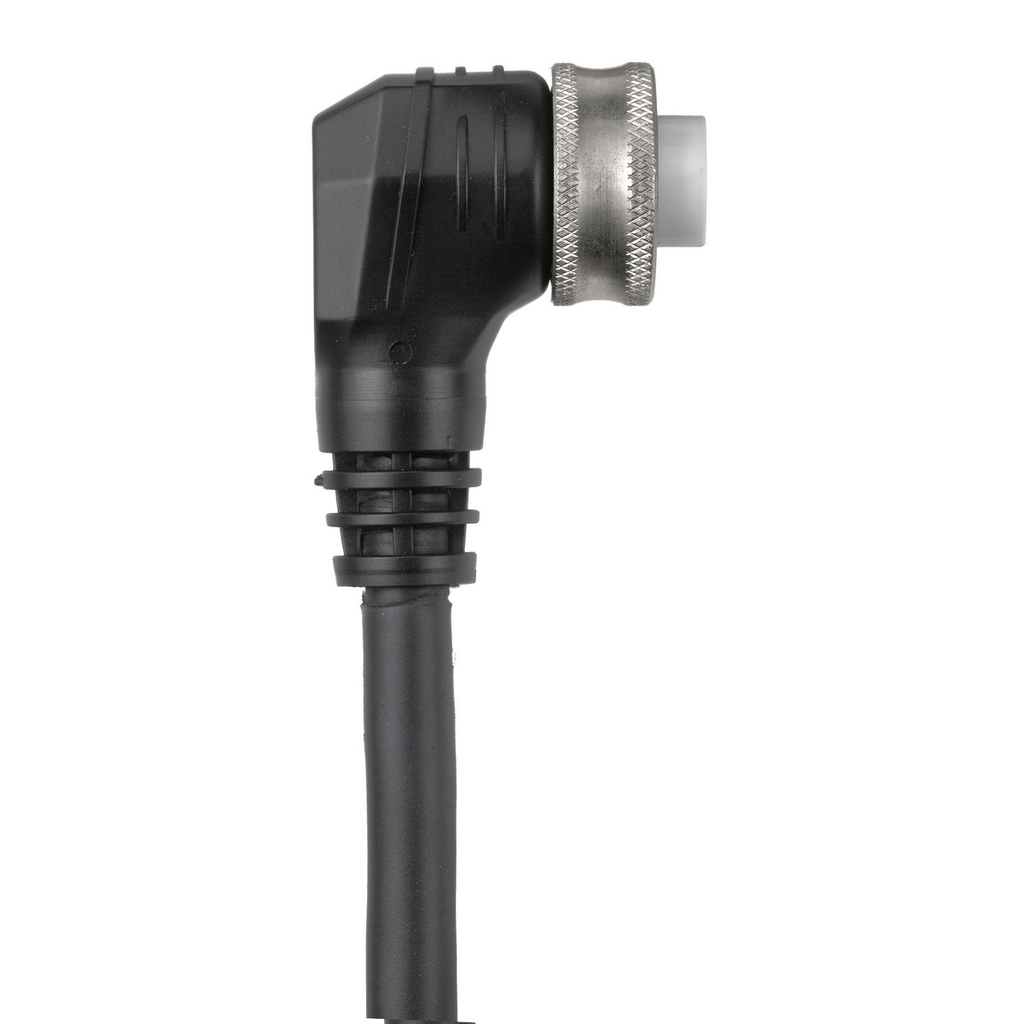

Product image for HCI HCMA04112 MINQCK, FEM ANG PLG,
Email

HCI HCMA04112 MINQCK, FEM ANG PLG,

Manufacturer: Hubbell Wiring Device | Catalog # HCMA04112 | Cooper Electric Part # 1036802
$64.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Mini-Quick Control Connectors, Female Angled Plug, 4P, 16/4 12'

Technical Information

Amperage
10 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Type
Copper
Contact Material
Brass,Leaded Nickel Copper W/ Stainless Steel Sleeve.
Insulation Material
Nylon 6/6
Number of Conductors
4-Pole
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Temperature Rating
-20 To 105 degrees C
Type
Female Angle Plug

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Mini-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585836324
Color
Black
GTiN
00783585836324
Product UPC
78358583632

Dimensions

Diameter
1.03 Inch
Height
1.3 Inch
Length
12 Foot
Width
12.000 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Performance
  • Electrical - Amperage - #16 AWG - 2&3P=15A, 4P=12A, 5&6P=10A
  • Electrical - Contact Resistance - Less than or equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or equal to 1000 Megaohm
  • Electrical - Voltage Rating - 600V DC/600V AC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - SEOOW cable: -40°C to 105° C
  • AWM2661 cables: -20°C to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD-1344, Method 2005
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E192071
Features
  • Black overmold and cable
  • Insulgrip connector body design
  • Standard Product
  • Plating resists corrosion in high abuse environments
