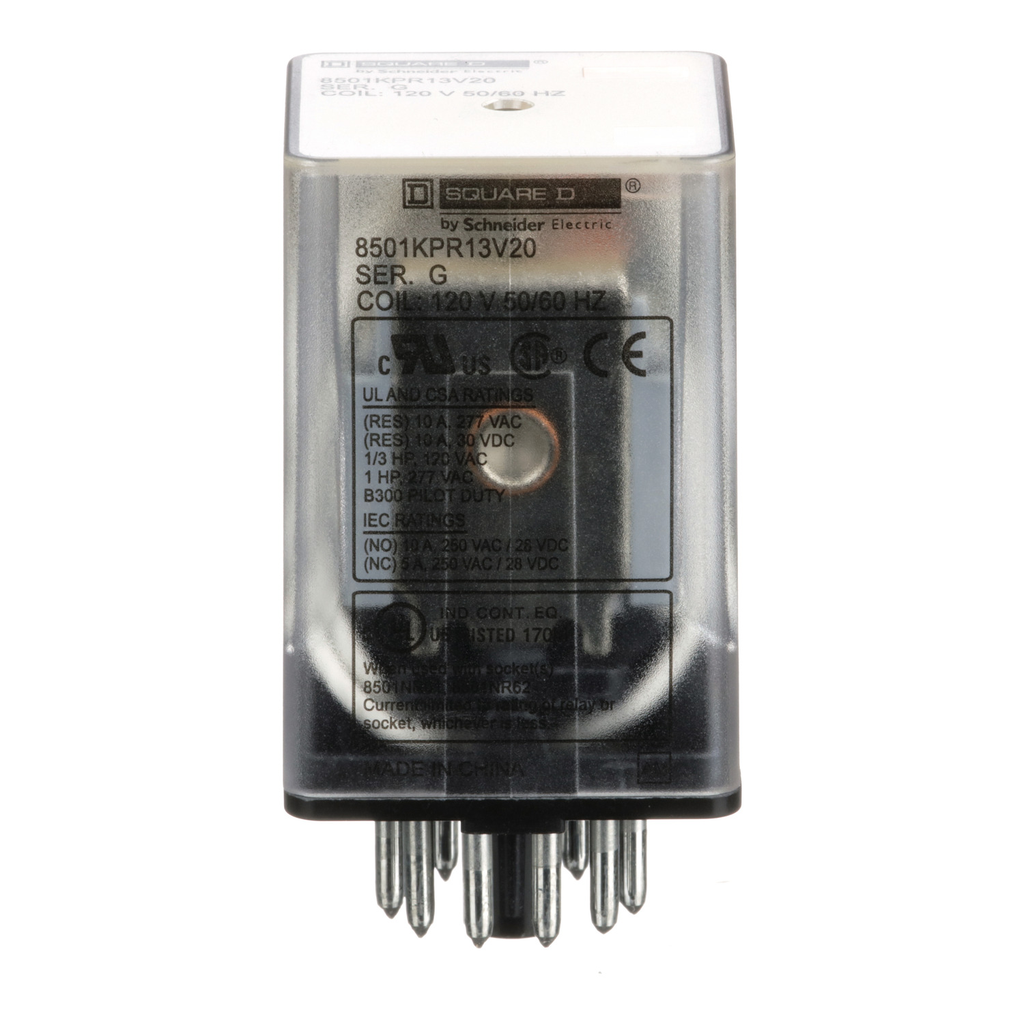

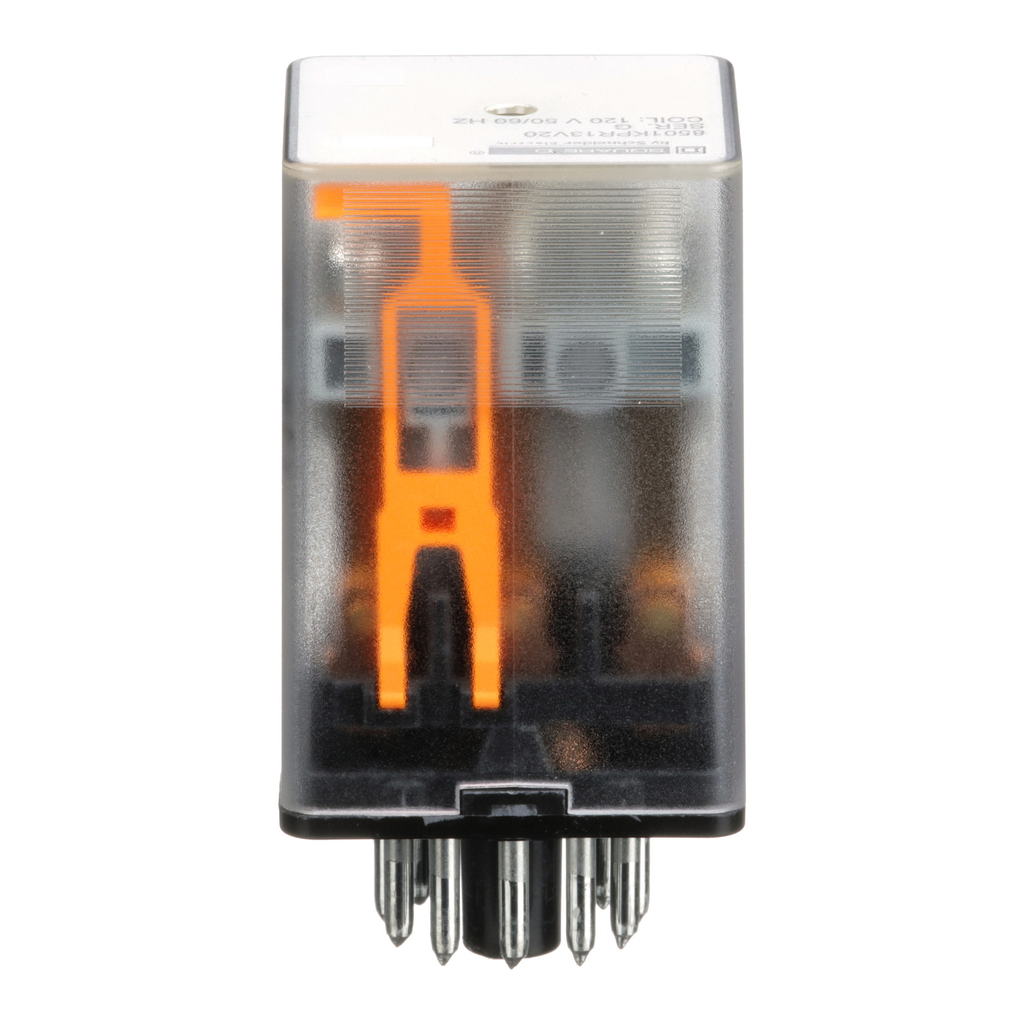

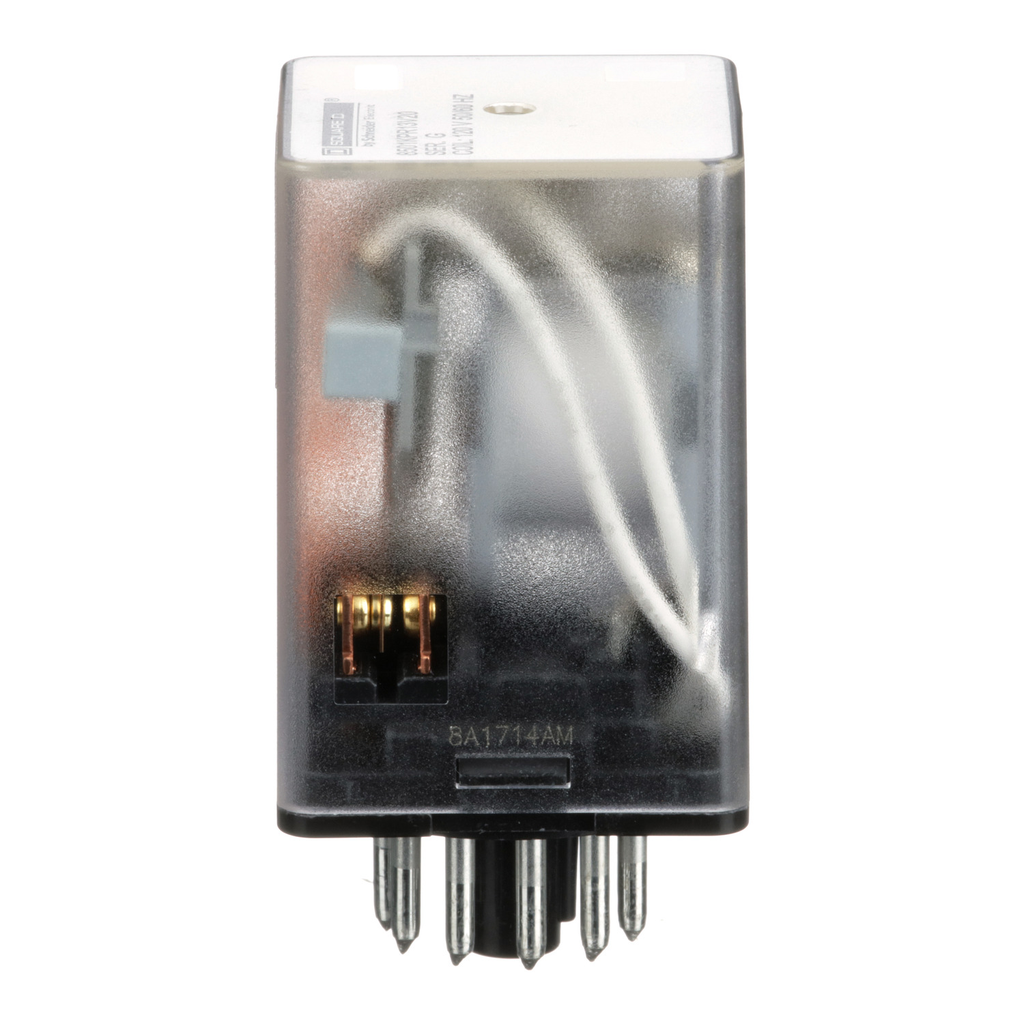

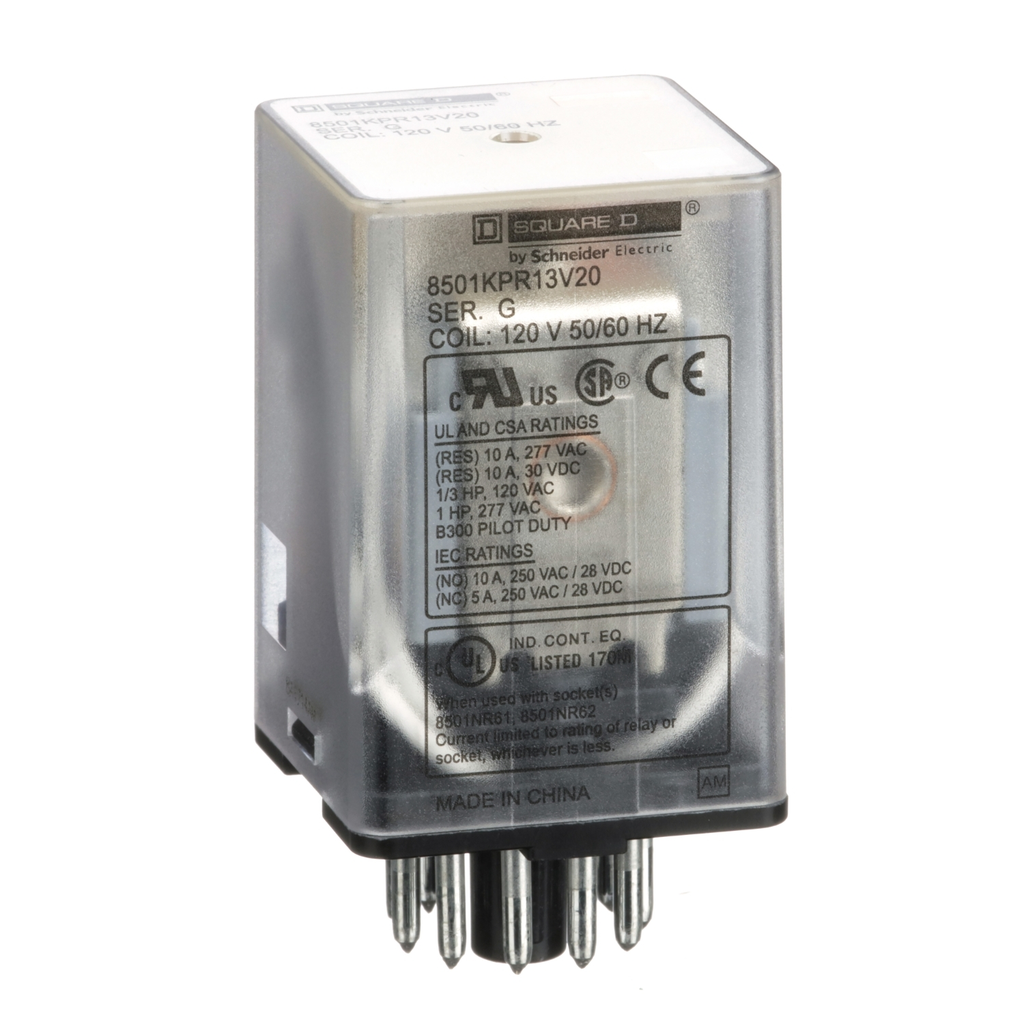

Product image for Square D 8501KPR13V20 120 VAC 10 Amp 3PDT 3CO AC Operated Plug-In Relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D 8501KPR13V20 120 VAC 10 Amp 3PDT 3CO AC Operated Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # 8501KPR13V20 | Cooper Electric Part # 1036110
$95.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Technical Information

Applications
1 HP 277 V AC-0.33 HP 120 V AC,8501NR62-8501NR61
Contact Configuration
3PDT
Contact Material
Silver Alloy
Mounting Type
Socket
Operating Temperature
-40-131 Adegrees F
Type
3PDT,GENERAL PURPOSE,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901219743
GTiN
00785901219743
Product UPC
78590121974

Dimensions

Depth
1.4 Inch
Height
2.66 Inch
Width
1.4 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
Uc Control Circuit Voltage
  • 120 V AC
Rated Power In Hp
  • 1 hp 277 V AC
  • 0.33 hp 120 V AC
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0007680453
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.1497515706
Operating Time
  • 20 ms - pick-up
  • 20 ms - drop-out
Maximum Switching Voltage
  • 300 V AC
  • 30 V DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.6 kg CO2 eq.
  • 0.6340308391
Accessories
  • 8501NR61
  • 8501NR62
  • 8501NH7
  • 8501NR61B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 25 kg CO2 eq.
  • 24.5363507625
Accessory Products
  • 8501NR61
  • 8501NR62
  • 8501NH7
  • 8501NR61B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Carbon Footprint Of The Distribution Phase A4
  • 0.0124559478
  • 0 kg CO2 eq.
Product Compatibility
  • 8501NR62
  • 8501NR61
Rated Breaking Capacity
  • 3 A 120 V AC inductive control circuit UL 508
  • 3 A 120 V AC inductive c
Product Certifications
  • UL Listed
  • UL Recognized
  • CSA
  • CE
