L-VIL FXP1812HD 12FT FG PINNACLE PLATFORM LADDER EXTENDED RAIL PROTOP TYPE IAA 375B RATED FIBERGLASS PLATFORM LADDER

Manufacturer: Louisville Ladder | Catalog # FXP1812HD | Cooper Electric Part # 1034885
$759.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Louisville 12 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1812HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
36-3/4 in
Duty Rating
Type IAA
Load Capacity
375 lb
Material
Fiberglass
Max Reach
193 in
Max Standing Height
11.42 ft
Number of Steps
12
Rung Type
Standard
Size
12
Spread
101-1/2 in
Step Depth
3 in
Style
Pinnacle Pro Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865125781
Product UPC
72886512578
Weight
75 lb

Dimensions

Closed Depth
10-1/4 in
Closed Height
183-1/2 in
Closed Width
36.8 in
Platform Height
136.863 in
Platform Length
21-1/4 in
Platform Width
14-3/4 in
Features
  • 36\" Tall Extended Handrail From Top To Platform
  • 50% Larger Platform Area For Added Comfort And Safety

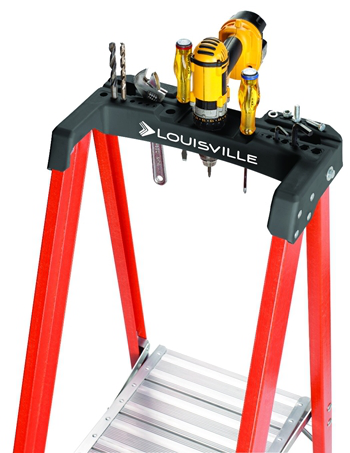

  • ProTop With Multiple Tool Slots And Magnet

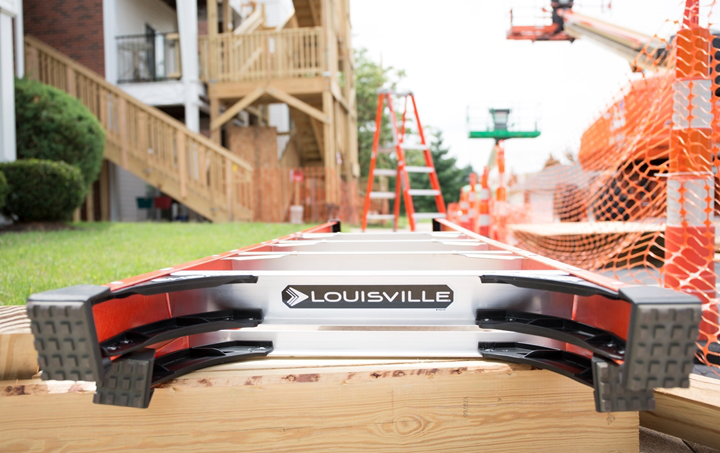

  • Raptor Slip-resistant Boot

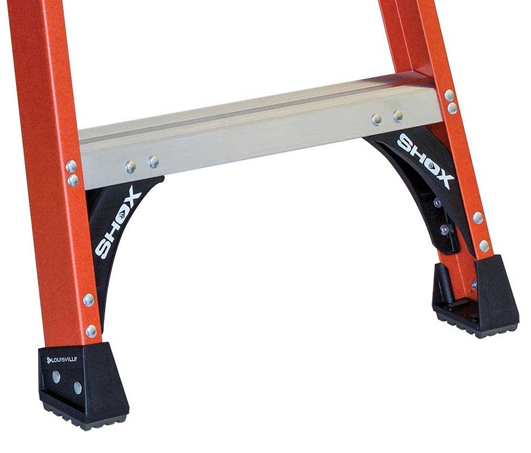

  • Shox Impact Absorption System
  • Double-Rivet Step Construction
  • Wide Back Braces
  • ANSI Certified
  • OSHA Certified
