L-VIL FXP1805HD 5FT FG PINNACLE PLATFORM LADDER EXTENDED RAIL PROTOP TYPE IAA 375B RATED FIBERGLASS PLATFORM LADDER

Manufacturer: Louisville Ladder | Catalog # FXP1805HD | Cooper Electric Part # 1034878
$307.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

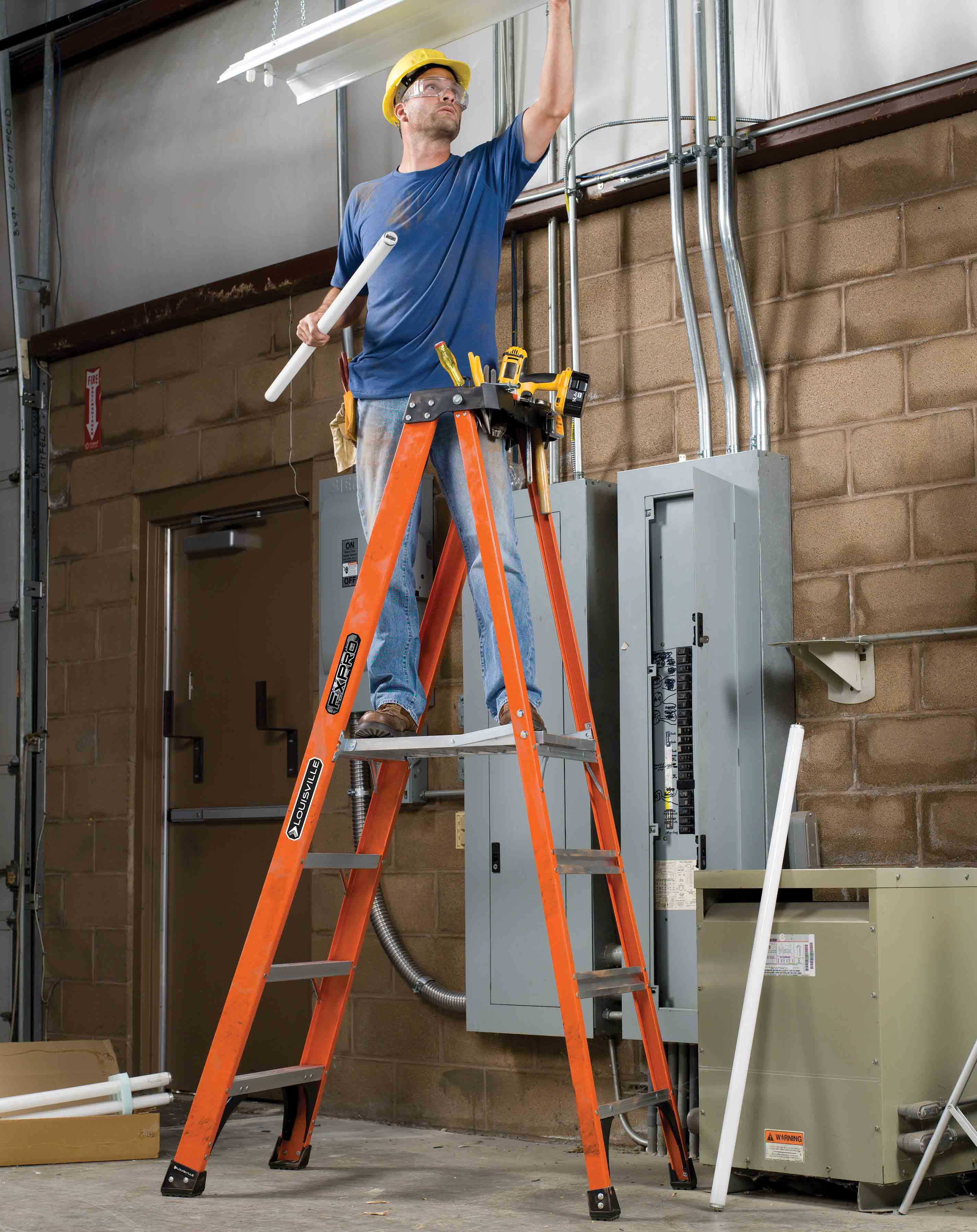

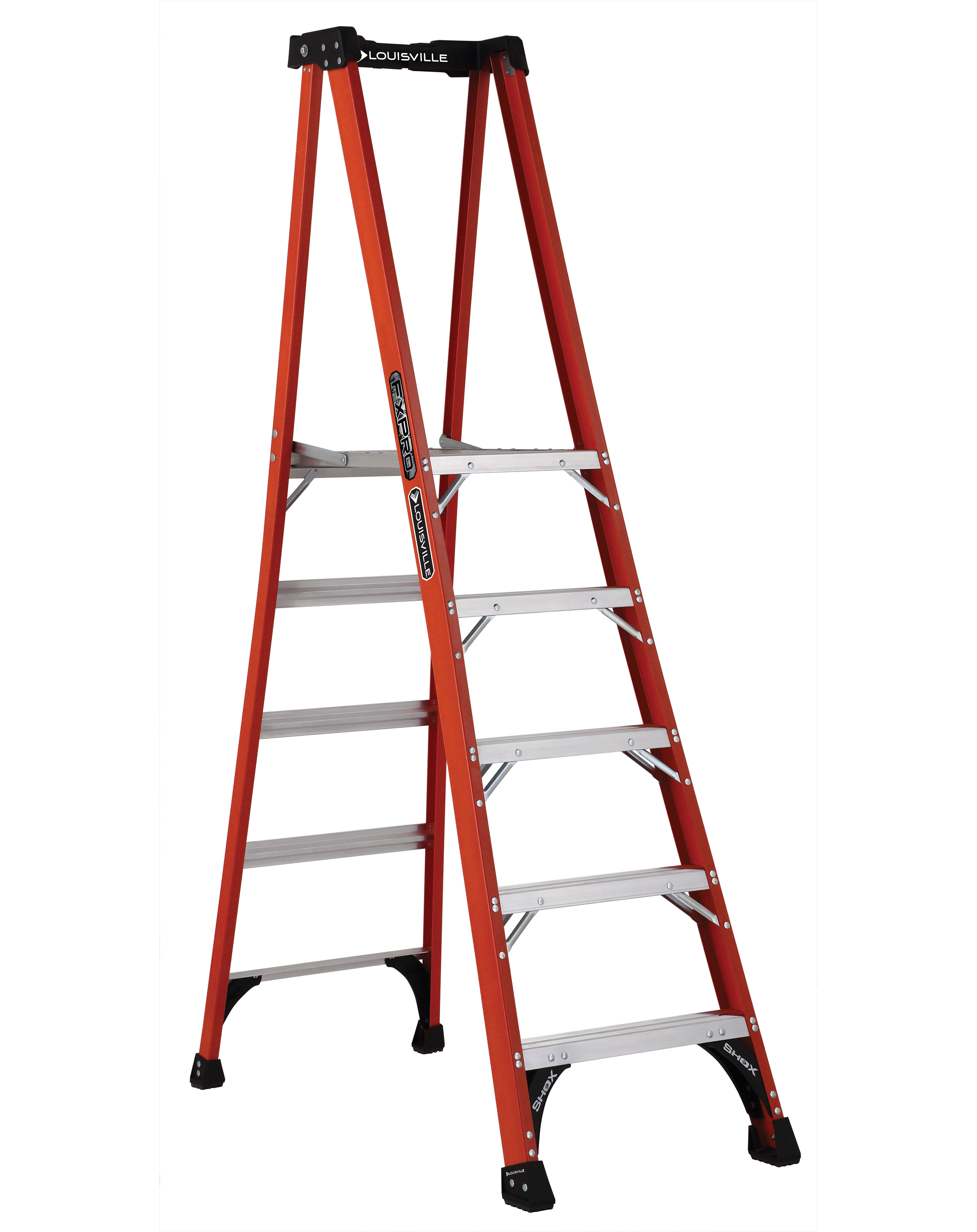

This Louisville 5 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1805HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
26-1/8 in
Duty Rating
Type IAA
Load Capacity
375 lb
Material
Fiberglass
Max Reach
11.33 ft
Max Standing Height
4.75 ft
Number of Steps
5
Rung Type
Standard
Size
5 ft
Spread
54-1/2 in
Step Depth
3 in
Style
Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865125743
Product UPC
72886512574
Weight
29 lb

Dimensions

Closed Depth
10-1/4 in
Closed Height
99-1/2 in
Closed Width
26-1/8 in
Platform Height
56.972 in
Platform Length
21-1/4 in
Platform Width
14-3/4 in
Features
  • SHOX with Superior Impact Absorption
  • DaBoot Slip Resistant Boot
  • 50% Larger Platform
  • Extended Handrail for Added Comfort and Safety

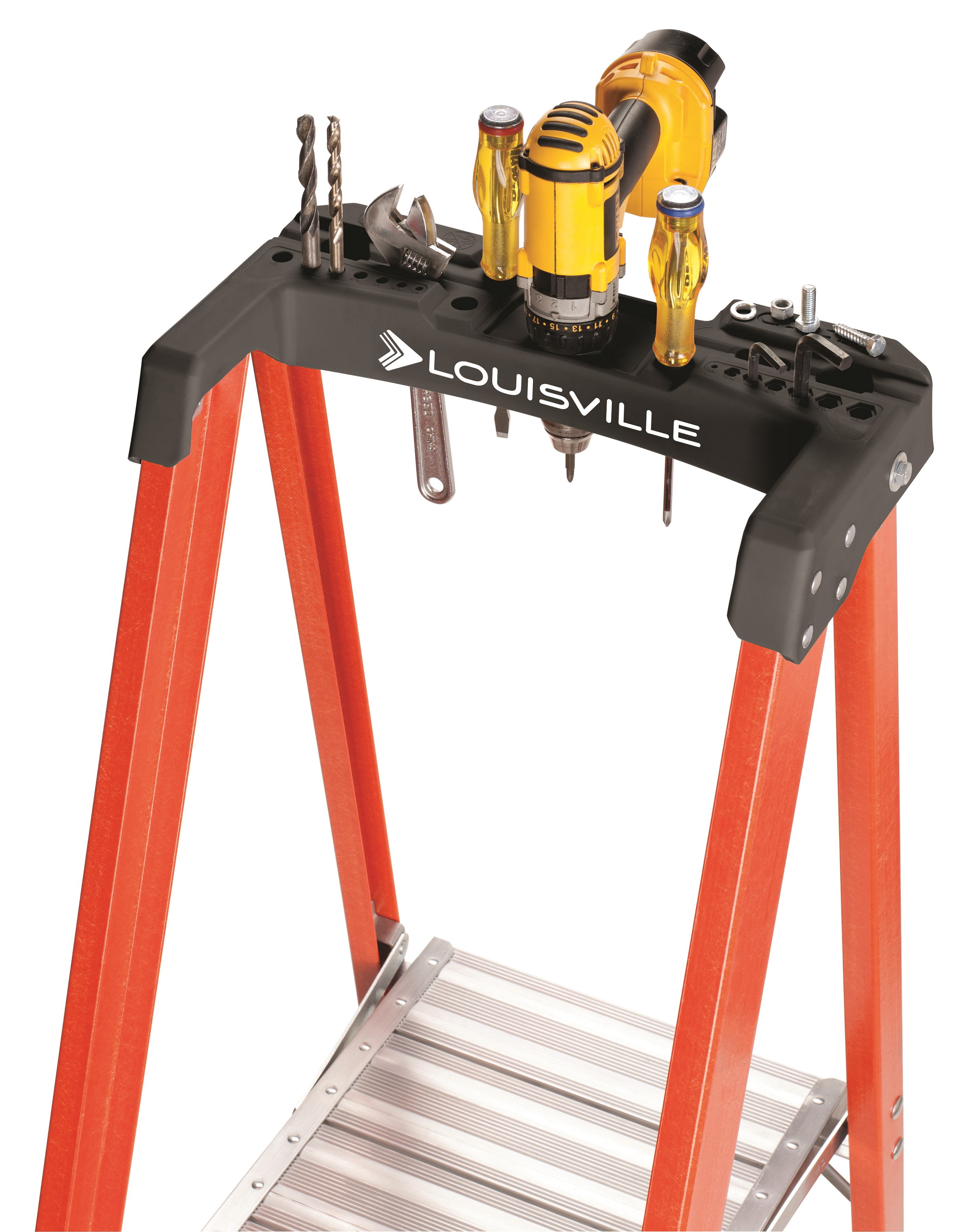

  • ProTop with Multiple Tool Slots and Magnet
  • Double-Rivet Step Construction
