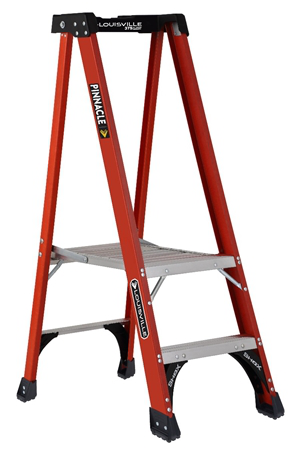

Product image for L-VIL FXP1802HD 2FT FG PINNACLE PLATFORM LADDER EXTENDED RAIL PROTOP TYPE IAA 375B RATED FIBERGLASS PLATFORM LADDER
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

L-VIL FXP1802HD 2FT FG PINNACLE PLATFORM LADDER EXTENDED RAIL PROTOP TYPE IAA 375B RATED FIBERGLASS PLATFORM LADDER

Manufacturer: Louisville Ladder | Catalog # FXP1802HD | Cooper Electric Part # 1034873
$212.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Louisville 2 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1802HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
21-3/8 in
Duty Rating
Type IAA
Load Capacity
375 lb
Material
Fiberglass
Max Reach
8.33 ft
Max Standing Height
1.92 ft
Number of Steps
2
Rung Type
Standard
Size
2
Spread
36 in
Step Depth
3 in
Style
Pinnacle Pro Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865125712
Product UPC
72886512571
Weight
20 lb

Dimensions

Closed Depth
10-1/4 in
Closed Height
63-1/2 in
Closed Width
21.4 in
Platform Height
22.733 in
Platform Length
21-1/4 in
Platform Width
14-3/4 in
Features
  • 36\" Tall Extended Handrail From Top To Platform
  • 50% Larger Platform Area For Added Comfort And Safety

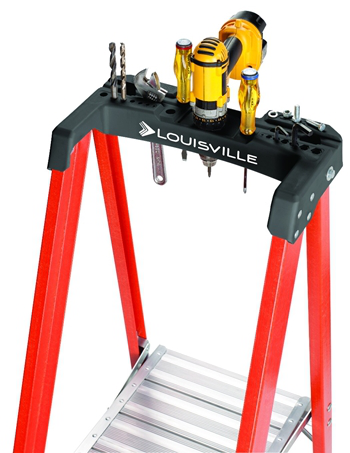

  • ProTop With Multiple Tool Slots And Magnet

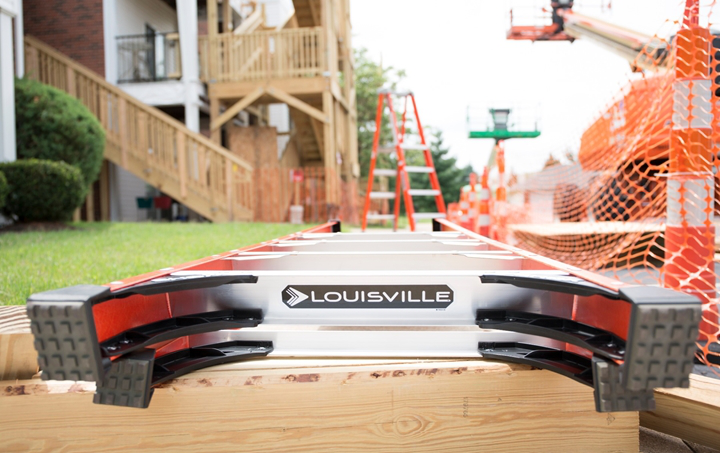

  • Raptor Slip-resistant Boot
  • Shox Impact Absorption System
  • Double-Rivet Step Construction
  • Wide Back Braces
  • ANSI Certified
  • OSHA Certified
