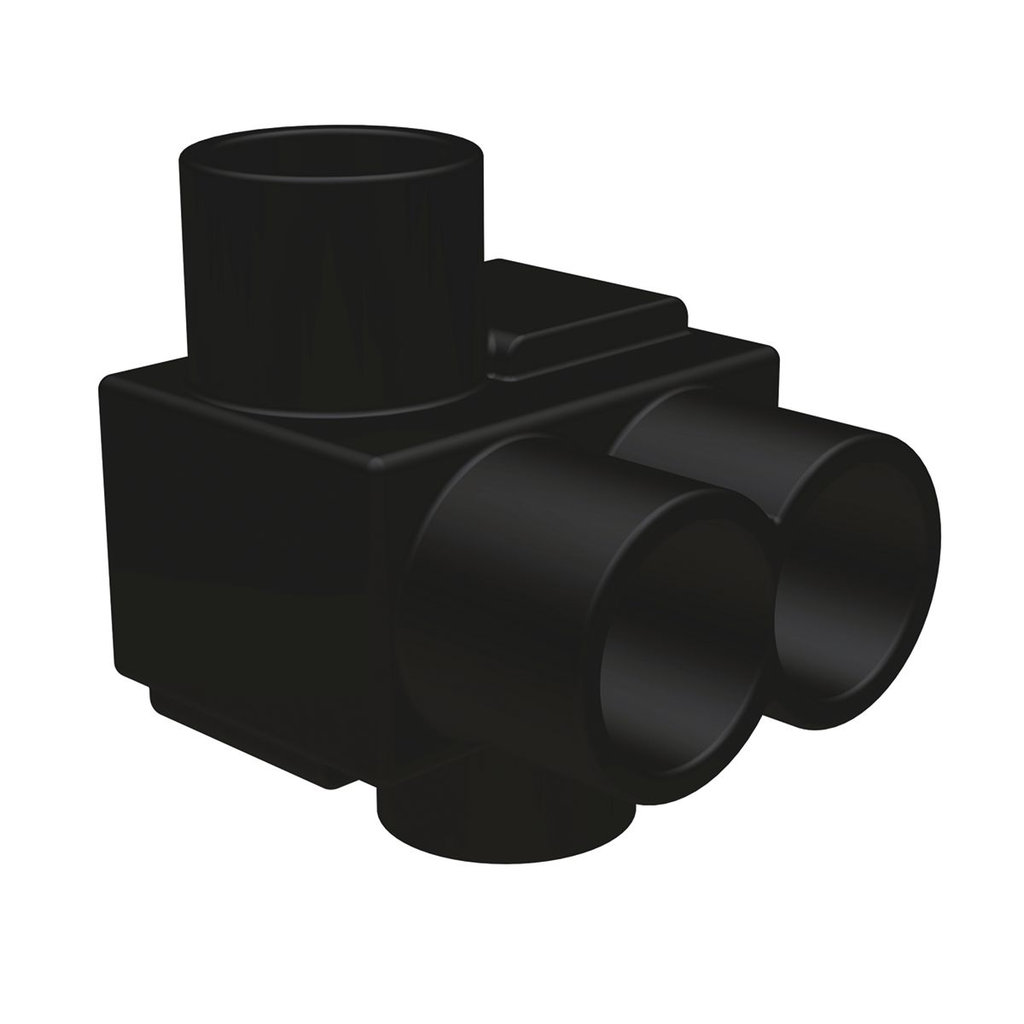

Product image for Burndy 1PLO2/02 Al Distribution Tap Connectors, UV Black Plastisol Covered, 2 Ports, Offset Entry, #14-2/0 , 600 V, Torque 120 in/lbs, Temp Rating 90 Deg C
Image thumbnail 0
Image thumbnail 1
Email

Burndy 1PLO2/02 Al Distribution Tap Connectors, UV Black Plastisol Covered, 2 Ports, Offset Entry, #14-2/0 , 600 V, Torque 120 in/lbs, Temp Rating 90 Deg C

Manufacturer: Burndy | Catalog # 1PLO2/02 | Cooper Electric Part # 1033808
$36.05 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Al Distribution Tap Connectors, UV Black Plastisol Covered, 2 Ports, Offset Entry, #14-2/0 , 600 V, Torque 120 in/lbs, Temp Rating 90 Deg C.

Technical Information

Applications
For Indoor Use Only, Copper Or Stranded Aluminum
Conductor Size
1 AWG
Connection Type
Multi Tap
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size

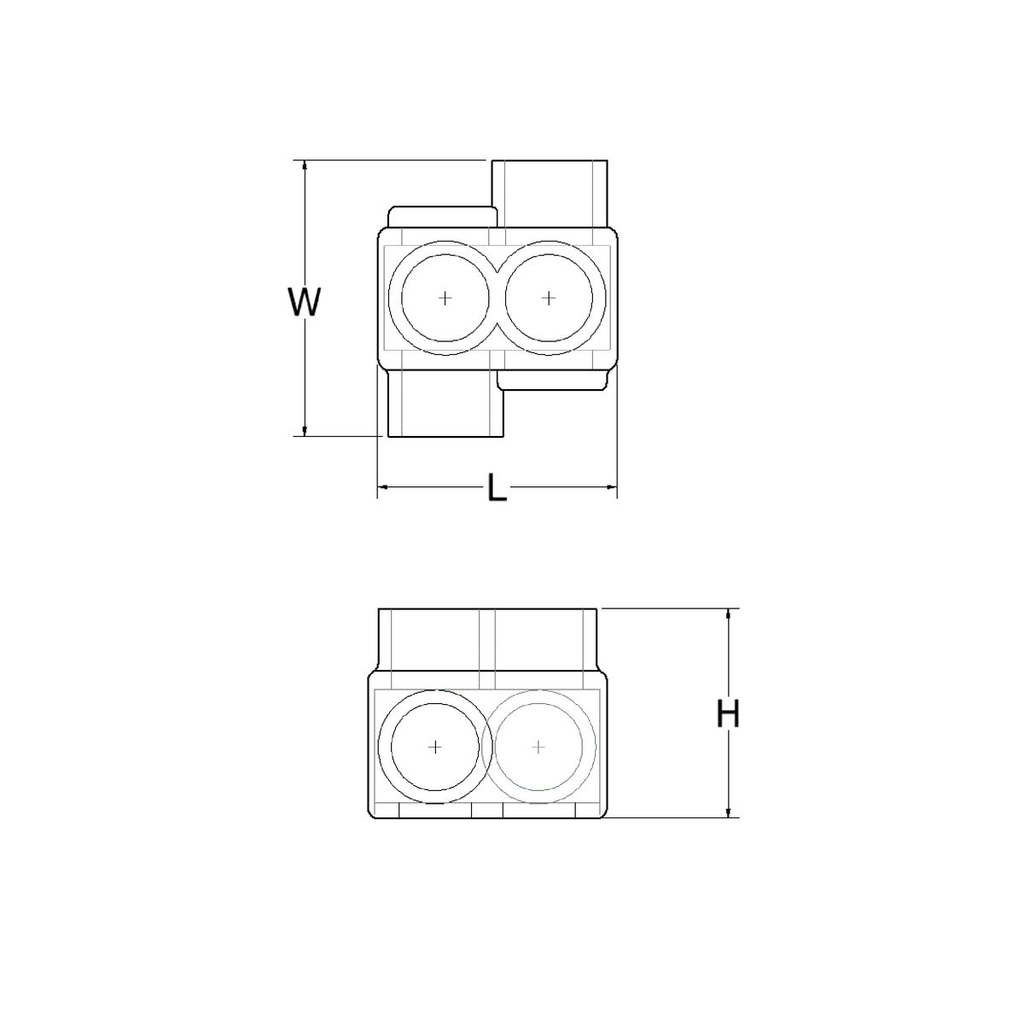

1.38 IN Height X 1.56 IN Width X 1.52 IN Length
Temperature Rating
194
Type
BIT
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810287514
GTiN
00781810287514
Product UPC
78181028751

Dimensions

Height
1.38 Inch
Length
1.52 Inch
Overall Length
1.52 in
Width
1.56 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Range-taking capability reduces the number of connectors necessary to carry in inventory
