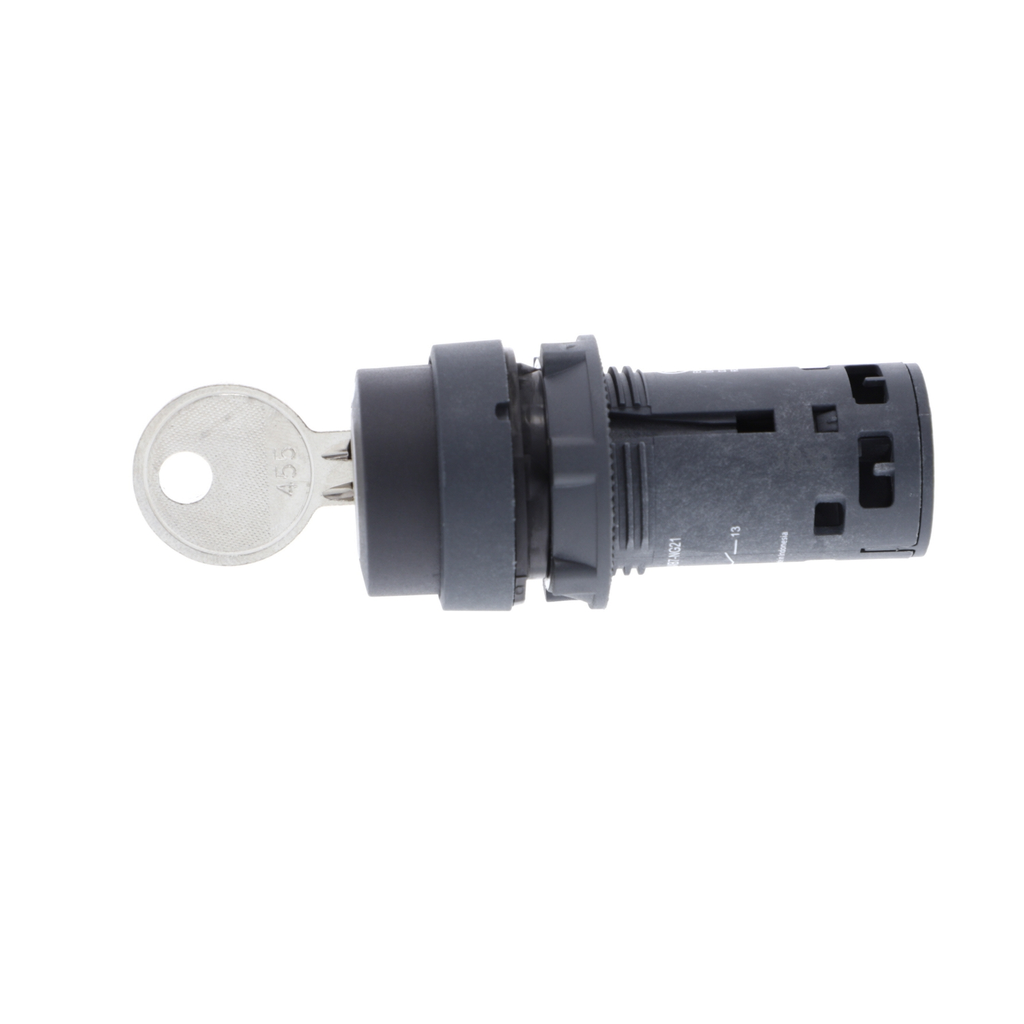

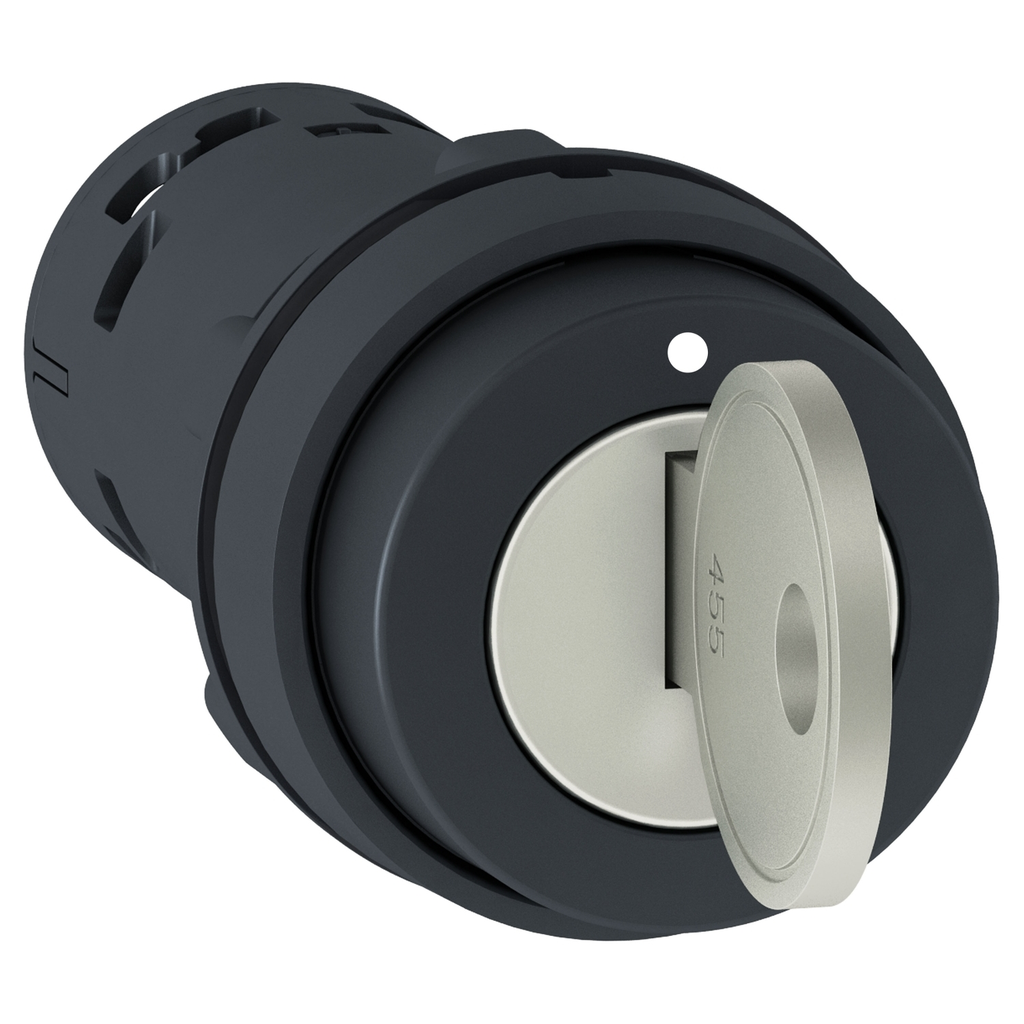

Square D XB7NG21 22 mm 1.2 Amp 600 VAC 1NO 2-Position Maintained Round Key Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # XB7NG21 | Cooper Electric Part # 1032501
$45.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB7, monolithic black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product. It secures the machine and system operation with a key, only available to authorized operators.

Technical Information

Action
Slow-break
Actuator
2 positions 90
Amperage
0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 Amp 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 Amp 120 V, AC-14, D300 EN/IEC 60947-5-1
Contact Configuration
1 NO
Enclosure
NEMA 12 UL 50 E-NEMA 3 UL 50 E
Mounting Type
Fixing Hole 22.5 Mm 22.3 +0.4/0 IEC 60947-1
Net Weight
0.05 kg
Operating Temperature
-25-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, 1 X 0.34...2 X 2.5 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB7

General Product Info

12-Digit UPC
606480470274
GTiN
03606480470271
Product UPC
78590120505
Weight
0.05 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY2101
  • ZBY2303
  • ZB5AZ905
  • ZBZ32
Cross Sell Products
  • XALK84W3BE
