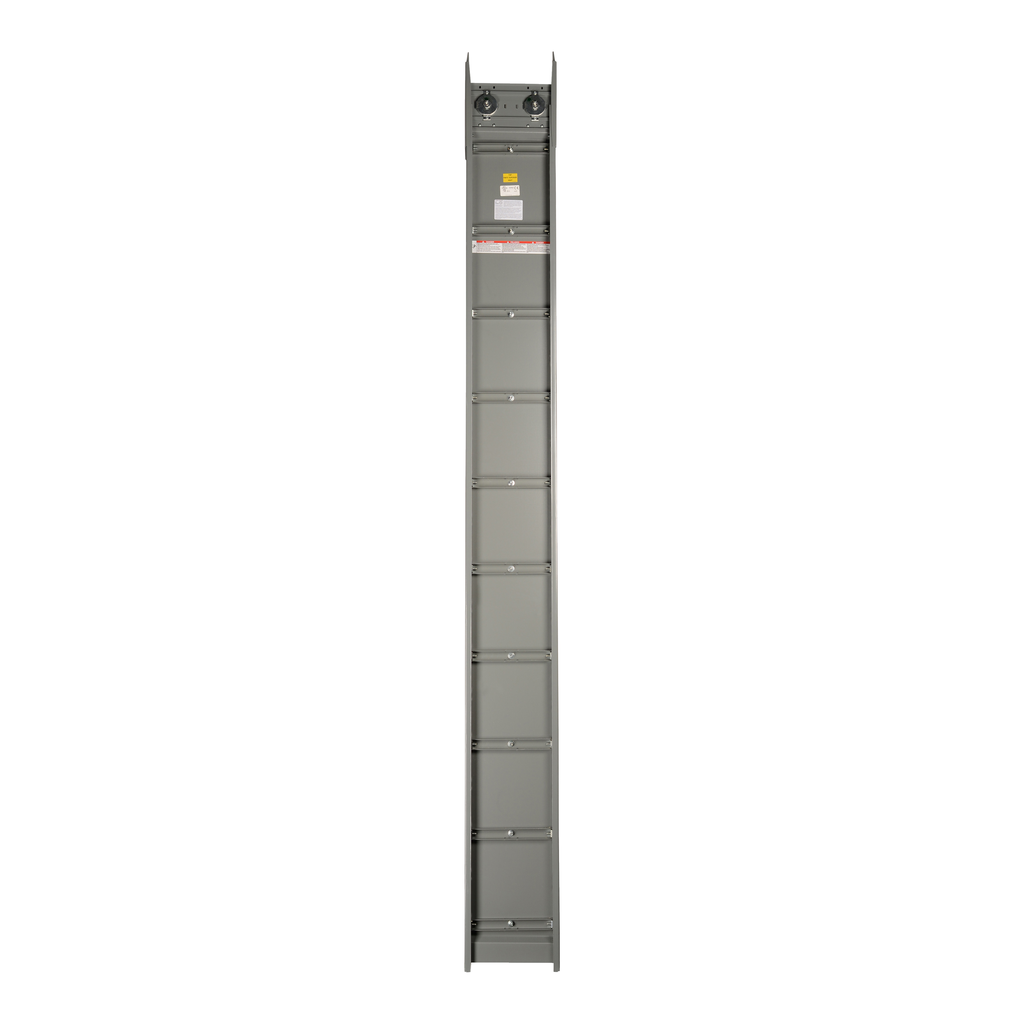

Product image for Square D CF2316G10ST 10 Foot 3-Phase 3-Wire 1600 Amp Copper Feeder Busway
Image thumbnail 0
Image thumbnail 1
Email

Square D CF2316G10ST 10 Foot 3-Phase 3-Wire 1600 Amp Copper Feeder Busway

Manufacturer: Square-D / Schneider | Catalog # CF2316G10ST | Cooper Electric Part # 1031649
$22,065.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This 10 foot long section of busway has a copper bus rated at 1600A at 600VAC. This busway system is configured for a 3 phase, 3 wire system that has an integral ground bus. This unit is a feeder style which is also available in lengths from 16 to 120 inches.

Technical Information

Amperage
1600 Amp
Applications
1600 A
Line Rated Current
1600 A
Material
Copper
Number of Phases
3 Phase
Number of Wires
3 Wire
Standard
CSA C22.2 No 27:1997,IEC 61439-2,UL 857
Type
Straight length;10 ft (3.05 m)
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
I-LINE

General Product Info

12-Digit UPC
785901163084
GTiN
00785901163084
Product UPC
78590116308

Dimensions

Length
10 Foot
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E22182
Country of Origin
USA
