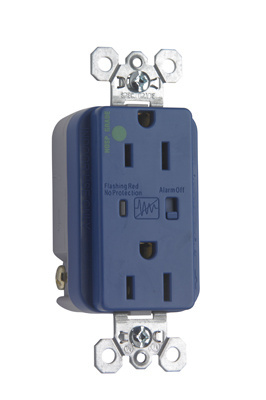

Product image for Pass & Seymour 8200-BLSP Hospital Grade Surge Protective Duplex Receptacle, Back & Side Wire, 15A 125V - Blue
Email

Pass & Seymour 8200-BLSP Hospital Grade Surge Protective Duplex Receptacle, Back & Side Wire, 15A 125V - Blue

Manufacturer: Pass & Seymour / Legrand | Catalog # 8200BLSP | Cooper Electric Part # 1028938
$98.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Hospital Grade Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, Ivory.

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Grade
Hospital
Grounding
Auto
Material
Nylon
Mounting Type
Wall, Screw
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.70 L x 1.25 W x 3.75 H In
TC Connection
Back and side wire
Temperature Rating
-20 degrees C to 55 degrees C
Type
Heavy Duty
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007193527
Class
IG
Color
Blue
GTiN
00785007193527
Product UPC
78500719352
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3.82 Inch
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.
  • External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
