Erico LPC559 Cast Beam Bonding Clamp, Copper, Bare, 1/4" Max Flange Thickness

Manufacturer: Erico, Inc | Catalog # LPC559 | Cooper Electric Part # 1028030
$56.14/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

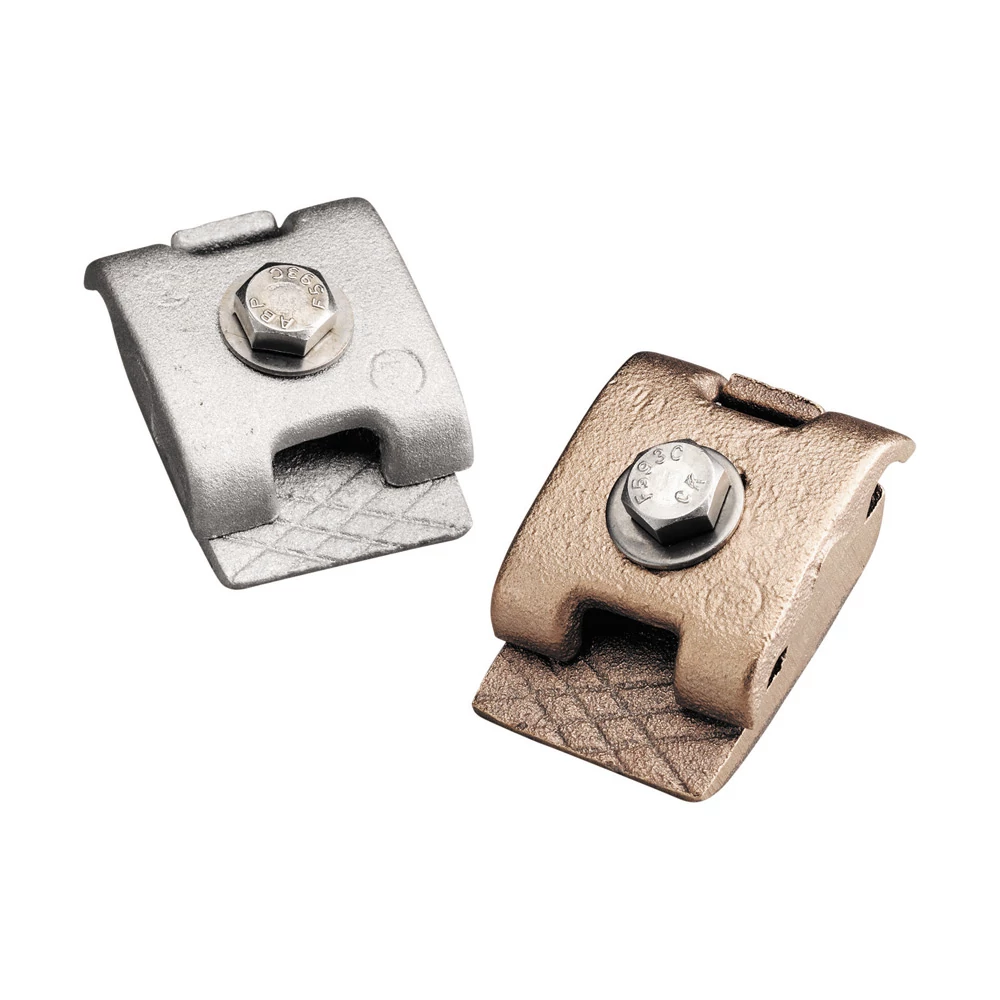

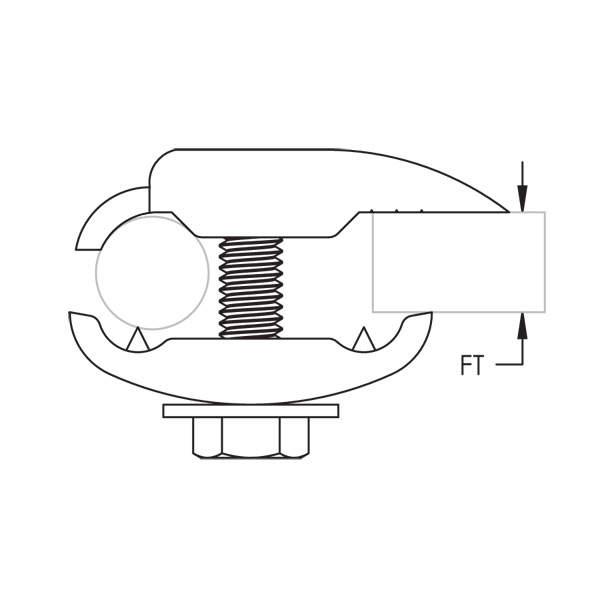

Lightning protection Cast Beam Bonding Clamp. The cast beam bonding clamp is made of copper and has a 1/4" (6.35 mm) max flange thickness.

Technical Information

Applications
Facility Electrical Protection; Lightning Protection; Rail; Solar Power; Telecom; Utility
Conductor Size
4/0 AWG
Material
Copper
Standard
UL
Type
Cast Beam Bonding Clamp

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856430117
Finish
Bare
GTiN
00782856430117
Product UPC
78285643011
Weight
0.18 kg

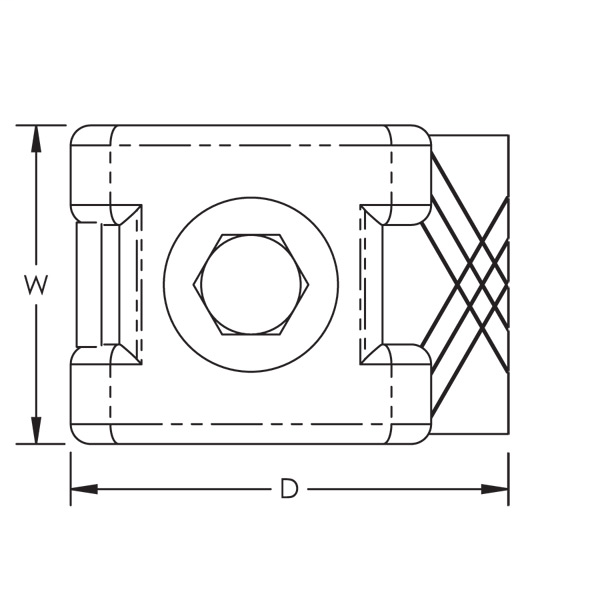

Dimensions

Depth
2-1/4 Inch
Width
1.6 in

Certifications and Compliance

Certifications
UL
Certifications
  • UL ANSI/UL 96
Features
  • Clamp for bonding cable to flat metal objects such as I-beams, angle irons and channel irons
  • Listed to UL® 96
