LEV 6674-P0E BP1/00/006

Manufacturer: Leviton Mfg Co | Catalog # 6674-P0E | Cooper Electric Part # 1027060
$44.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Replace a wall light switch with a SureSlide dimmer switch. 150W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Decora wallplate or Decora Plus Screwless Wallplate sold separately . Black

Technical Information

Action
Standard ON/OFF
Applications
For Commercial use, CFL/LED, Incandescent Lighting Control
Frequency
60 Hz
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
0 - 55 degrees C
Power Rating
600 W Incandescent, 150 W LED and CFL

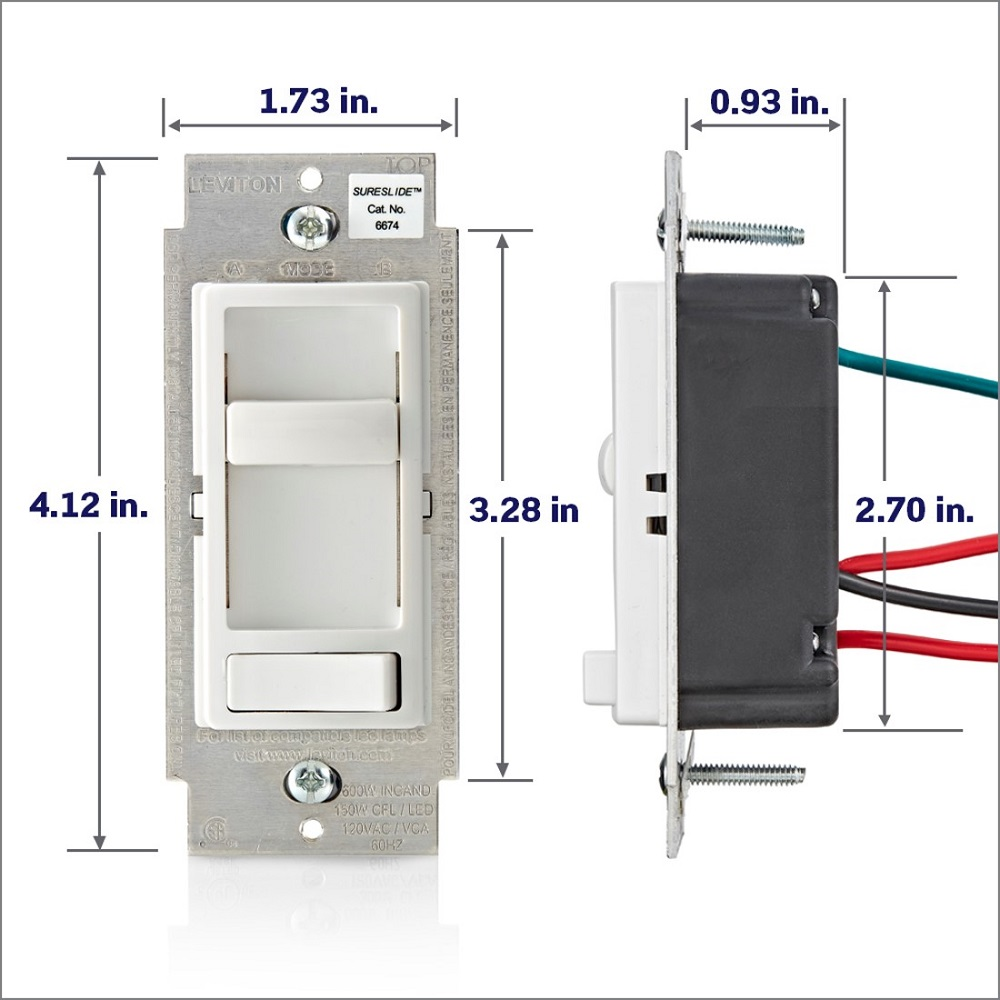

Size
4.12 H x 1.73 W x 0.93 D IN
Standard
CSA,UL
Style
SureSlide
Switch Type
3-Way,Single-Pole
Type
3 Way, Preset Slide, Electro-Mechanical
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, SureSlide®

General Product Info

12-Digit UPC
078477570364
Color
Black
Environmental Conditions
20 - 90% RH Non-Condensing, -10 to 85 C Non Operating
GTiN
00078477570364
Product UPC
07847757036

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Patents
  • US11903105
  • US8664886
  • US9681526
Features

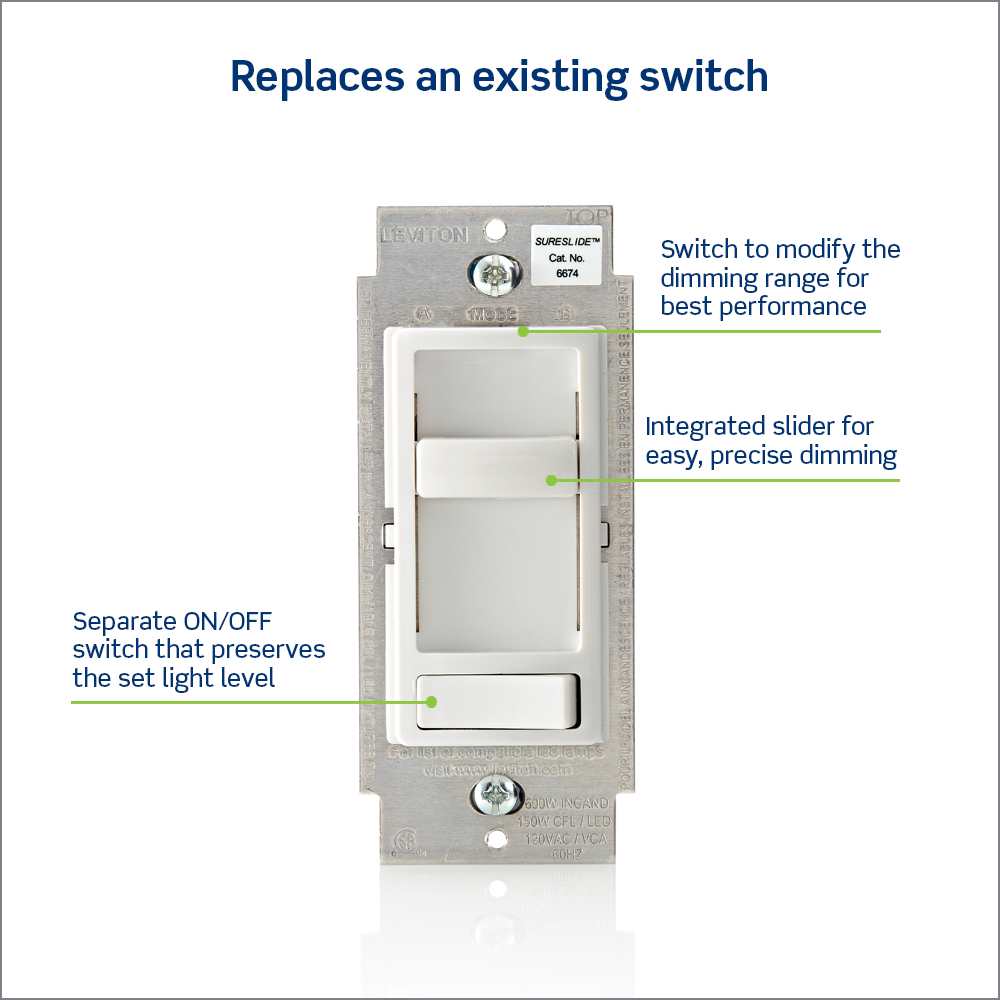

  • Integrated linear full-range slide control for easy, precise operation
  • Separate On/Off switch, to preserve set light level when turned off
  • Slim, compact housing fits easily into a standard wall box

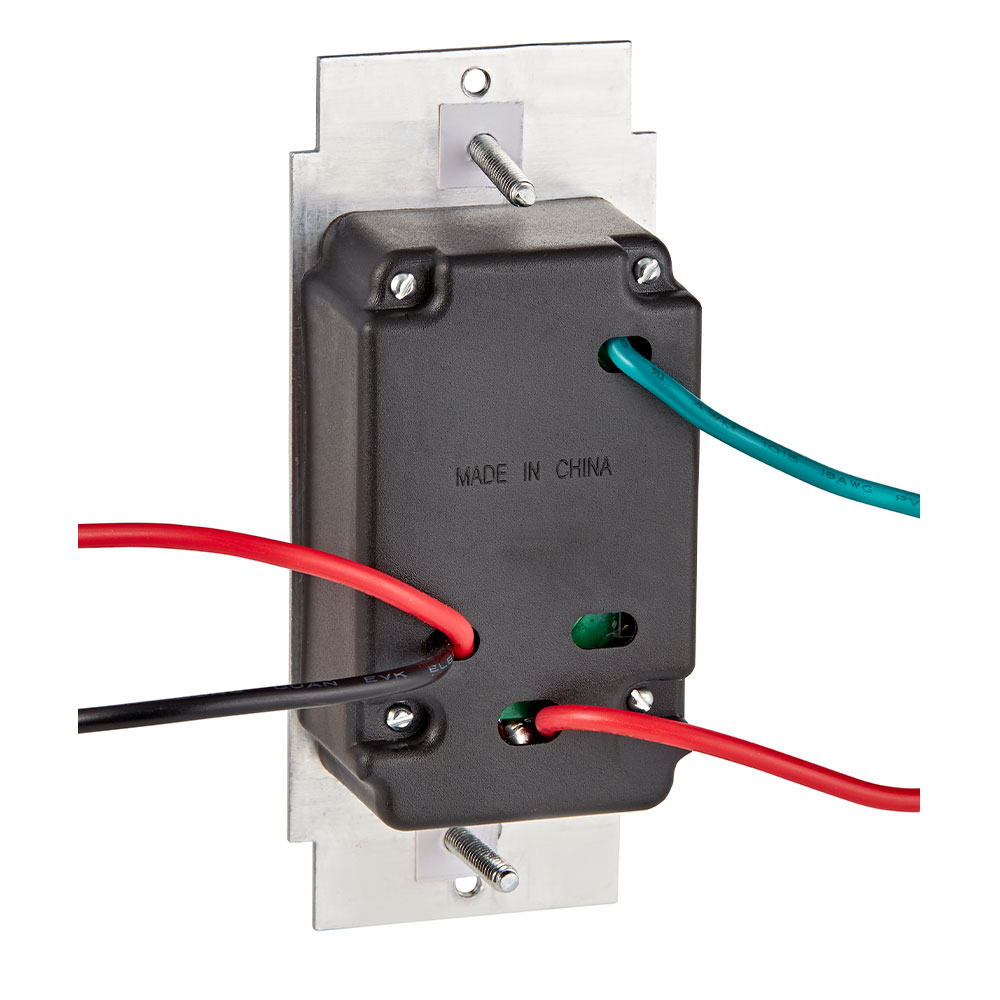

  • Works with existing wiring, no neutral wire required for installation
  • Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatiblity tool
  • Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
  • Control the lights from two locations using the 6674 in the main location and a 3-way switch (sold separatly) in the second location
  • Available in white, ivory, light almond, brown and black color options
  • CONVENIENT An easy way to create a big impact for a minimal cost and customize the light level in any room, for any occasion and in any home
  • EASY TO INSTALL Slim profile for easier installation. Works with existing wiring, no neutral wire required for installation
  • PRACTICAL Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool by clicking the \"find an LED bulb\" button below
  • CUSTOMIZEABLE Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
  • VERSATILE Control the lights from two locations using the 6674 in the main location and a 3-way switch (sold separately) in the second location
  • STYLISH Available in white, ivory, light almond, brown and black color options
