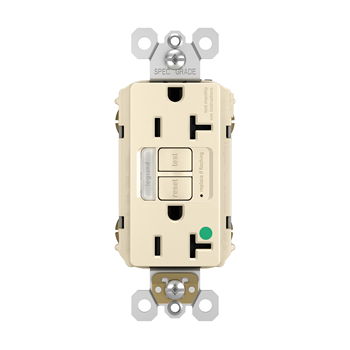

P&S 2097HGNTLTRLA SELF TEST HG GFCI

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097HGNTLTRLA | Cooper Electric Part # 1026816
$79.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.For detailed GFCI receptacle information, visit our GFCI Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial/Residential
Connection Type
Back Wire,Side Wire
Frequency
60 Hz
Interrupt Rating
4.0 A
Material
Thermoplatic
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Back and Side Wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Hopital-Grade Combination Tamper-Resistant 20A Self-Test Nightlight/GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048261
Color
Light Almond
Environmental Conditions
95 PCT
GTiN
00785007048261
Product UPC
78500704826

Dimensions

Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Sealed night light with high-impact-resistant Lexan® lens prevents tampering.
  • Night light uses cooler LED illumination.
  • Energy-efficient LED has average 20=year life expectancy, eliminating bulb replacement.
  • LED rated at 186 milliwatts at 120V.
  • Two receptacles.
  • Photocell turns night light ON in dark, OFF in daylight.
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Two back-wire holes per terminal.
  • Ground screw has back-wire clamp for easy installation.
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Extra-long strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate (except 1597NTLTRNICC4, 1597NTLTRABCC4 and 1597NTLTRDBCC4).
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 m
  • Trip Time: 0.025 sec., nominal per UL Standard
  • 20 Amp feed-thru capacity
Eco-Benefit Information
  • RoHS Compliant
