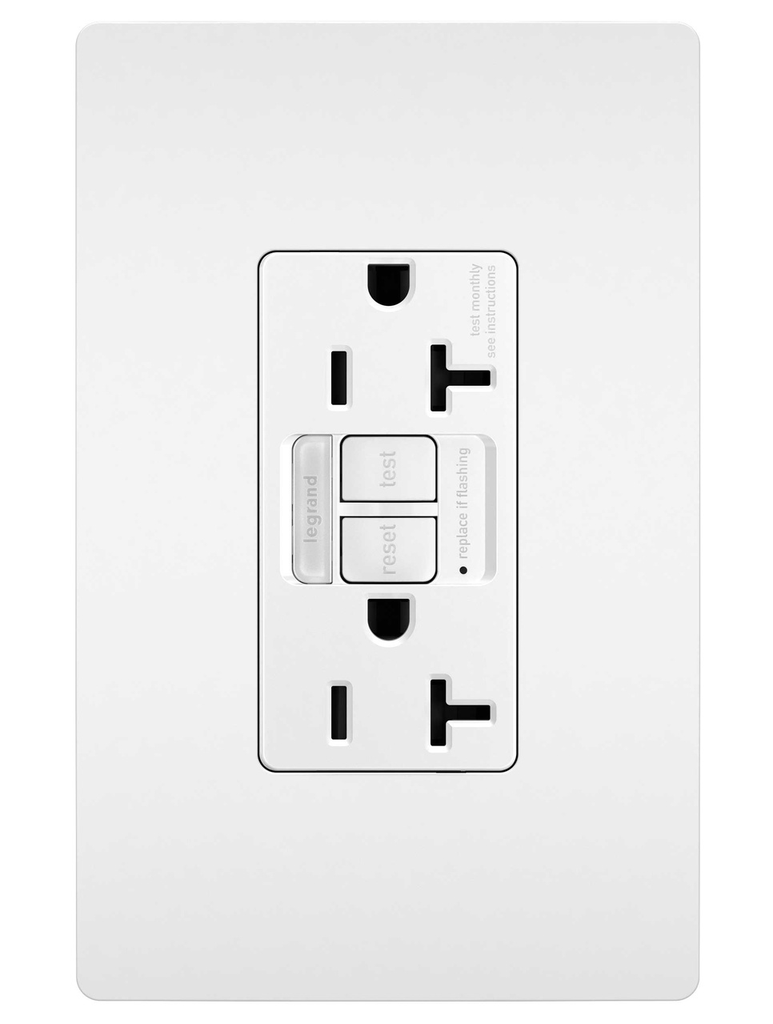

Product image for Pass & Seymour 2097-NTLTRW 20A 125V Self-Test Tamper-Resistant GFCI with Nightlight White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

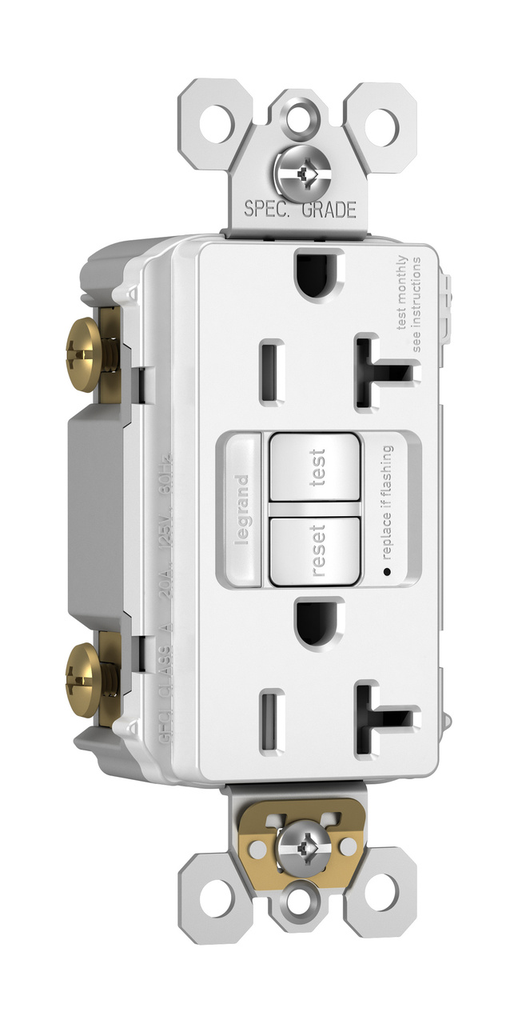

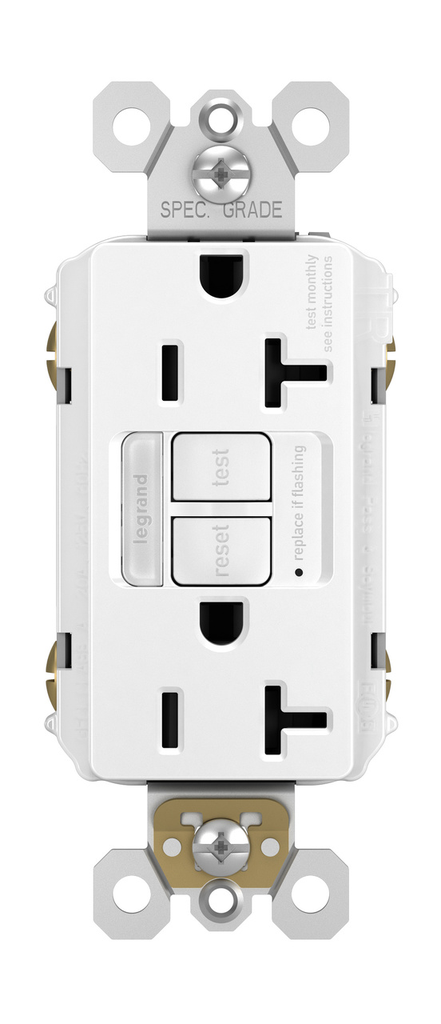

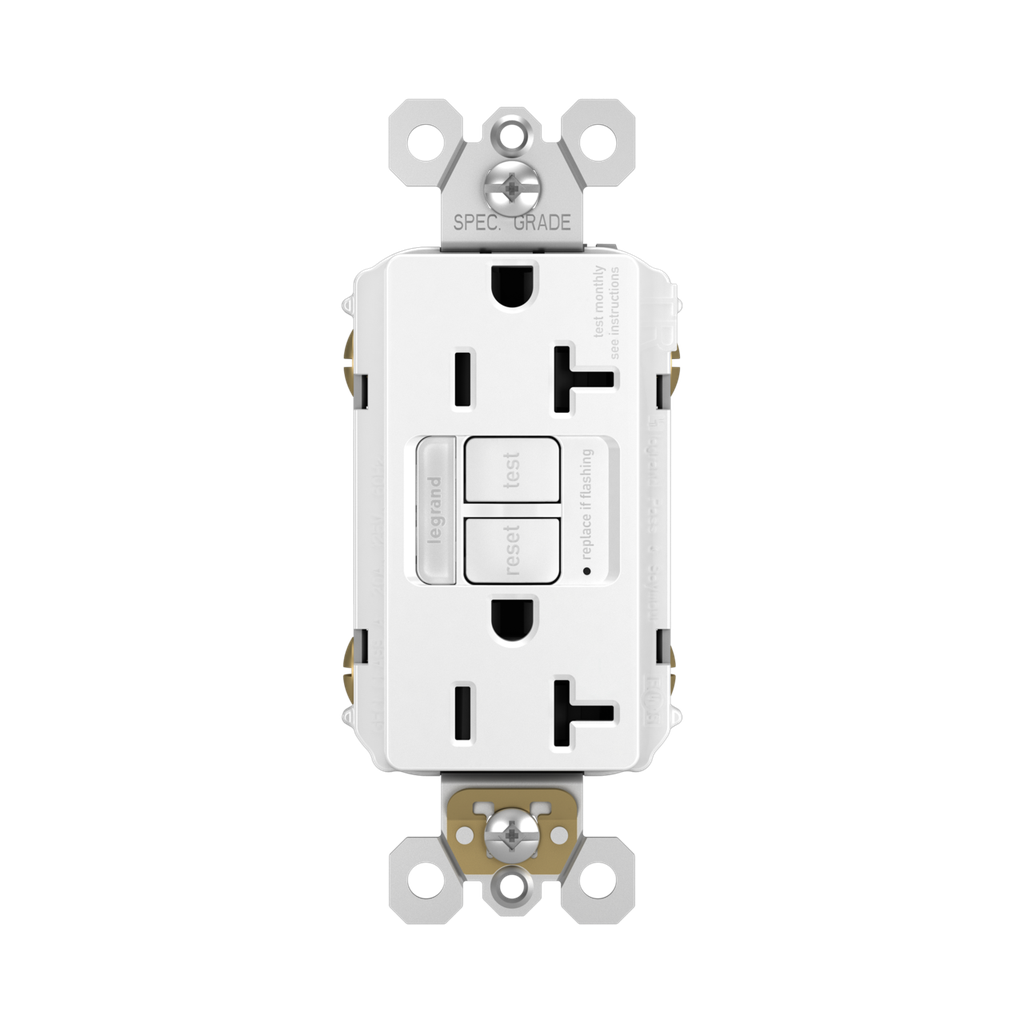

Pass & Seymour 2097-NTLTRW 20A 125V Self-Test Tamper-Resistant GFCI with Nightlight White

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097NTLTRW | Cooper Electric Part # 1026809
$64.53/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
16 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Ideal for replacing outlets by kitchen or bathroom sinks, this combination device from the radiant® Collection includes a tamper-resistant GFCI outlet paired with a sealed, built-in LED light which automatically turns on in the dark for easier nighttime navigation. Designed for safety, this self-testing GFCI outlet complies with National Electrical Code and makes trips easier to recognize and fix than GFCI breaker alternatives, thanks to accessible indicator light and reset button right on the outlet. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial/Residential
Connection Type
Back and Side Wired
Frequency
60 Hz
Grade
Commercial/Residential
Indoor Outdoor
Indoor
Interrupt Rating
4.0 A
Material
Thermoplastic
Mounting Type
Flush, Screw
NEMA
20A
Number of Gangs
1 Gang
Number of Poles
2 Pole
Operating Temperature
-35 to 66 degrees C
Outlet Type
GFCI,Indoor,Self-Test,Tamper-Resistant
Standard
CSA C22.2 No. 85,UL E23018,cULus
TC Connection
Back & Side Wired
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Combination Tamper-Resistant, Self-Test, Surge Protection
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007047790
Color
White
Environmental Conditions
95 PCT
Finish
Gloss
GTiN
00785007047790
Product UPC
78500704779

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Replaces any standard outlet with ease, in as little as 10 minutes.
  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
  • Hidden sensor controls night light based on ambient light, automatically turning on when it is dark.
  • Features durable, high-impact resistant thermoplastic construction.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.
  • More color options available to fit any style.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
