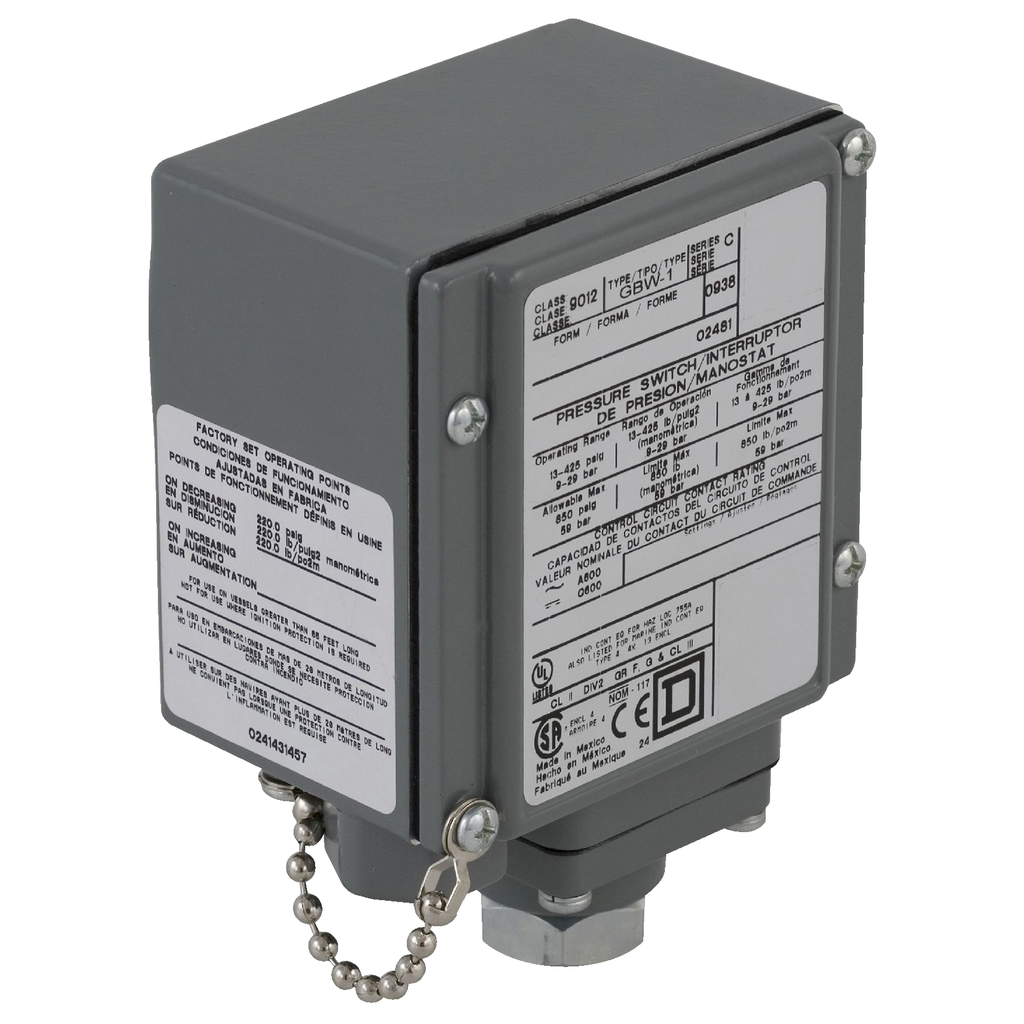

Product image for Square D 9012GLW1 480 VAC SPDT 2-Circuit 13 to 425 PSIG Non-Adjustable Differential Dual Stage Pressure Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9012GLW1 480 VAC SPDT 2-Circuit 13 to 425 PSIG Non-Adjustable Differential Dual Stage Pressure Switch

Manufacturer: Square-D / Schneider | Catalog # 9012GLW1 | Cooper Electric Part # 1026567
$478.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
pressure switch 9012G - fixed scale - 2 thresholds - 13 to 425 psig

Technical Information

Amperage
3 Amp
Applications
REGULATES TWO SEPARATE PRESSURE THRESHOLDS
Contact Configuration
2(NC-NO), 2 SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure
NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380
Enclosure Material
Aluminum
Operating Cycles
120 cyc/mn
Operating Temperature
-10-185 Adegrees F
Standard
CE,CSA C22.2 No 14,UL 508
Type
3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ELECTROMECHANICAL PRESSURE SWITCH,FIXED

Manufacturer Information

Brand
Square D
Sub Brand
9012G

General Product Info

12-Digit UPC
785901048800
GTiN
00785901048800
Product UPC
78590104880
Weight
2.5 lb

Dimensions

Depth
2.63 Inch
Height
5.45 Inch
Warranty Length
18 mth
Width
3.5 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CE,CSA LR25490 Class 3211 03,UL Listed File E12158 CCN NKPZ And CCN NTHT
Country of Origin
Mexico
