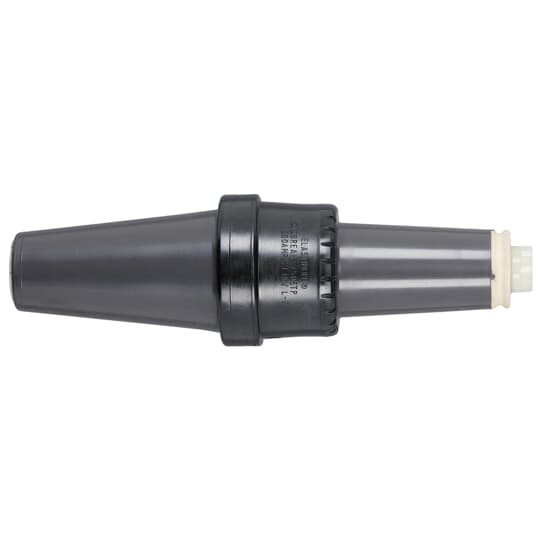

Product image for ABB Elastimold 750ETP 35kV 600 Series Deadbreak, Loadbreak Elbow Tap Plug
Email

ABB Elastimold 750ETP 35kV 600 Series Deadbreak, Loadbreak Elbow Tap Plug

Manufacturer: Blackburn / Thomas & Betts | Catalog # 750ETP | Cooper Electric Part # 1026262
$775.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
35kV 600 Series Deadbreak, Loadbreak Elbow Tap Plug

Technical Information

Applications
35kV, 600 Amps
Material
Rubber
Size
Length 9.86 inch, Diameter 3 inch.
Temperature Rating
-40 To 65 degrees C
Type
Deadbreak/Loadbreak Elbow Tap Plug

Manufacturer Information

Brand
Elastimold

General Product Info

12-Digit UPC
783786646524
GTiN
00783786646524
Product UPC
78378664652
Application
  • 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits.
Notes
  • For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K671 for K651; K675 for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2X for 0X in the catalog number. The 900-amp rating requires cooper current-carrying connector components and copper conductor cable.
  • Use 600ATM Assembly Tool.
  • Available with a loose stud by adding suffix \"S\" to the catalog number.
  • Available with the stud factory-assembled by adding \"SP\" to the catalog number. 675ETP, K675ETP and 775ETP are available as -SP only. The stud is not field removable.
