AFC 2121-30-00 *S6-4 MCA 100C

Manufacturer: AFC Cable Systems | Catalog # 2121-30-00 | Cooper Electric Part # 1024494
$7,627.34/m (1000 ft)
ft
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet

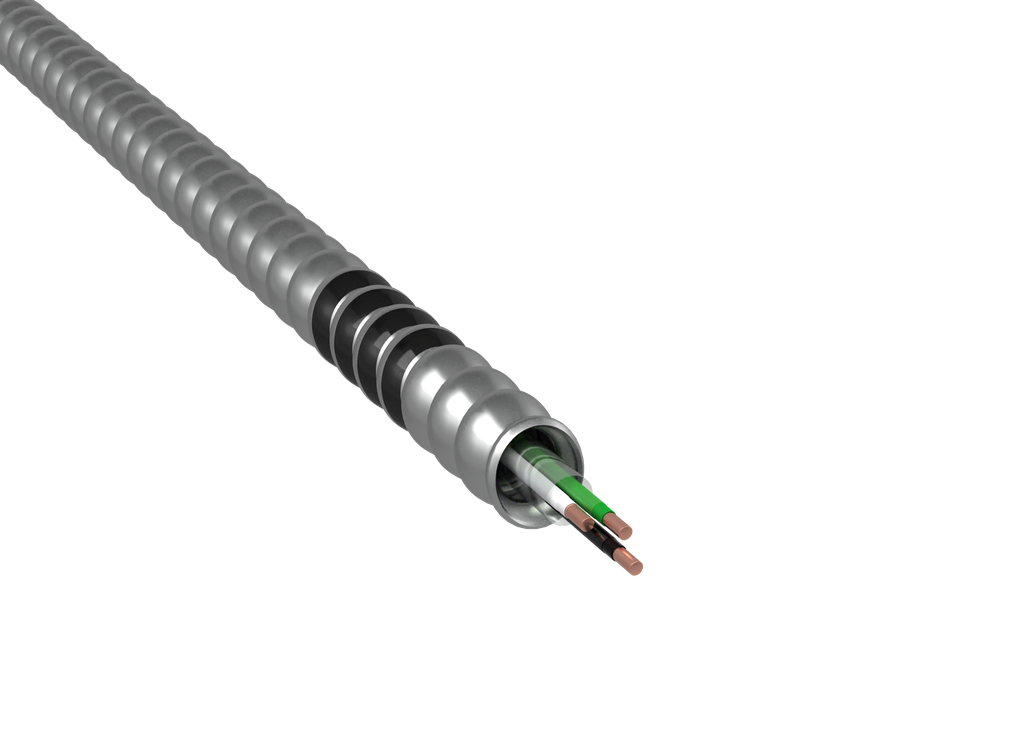

Atkore's aluminum interlocked armor Type MC cables are named MC Lite® and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

Technical Information

Conductor Size
4 AWG
Insulation Material
THHN
Number of Conductors
6
Temperature Rating
90 degrees C
Type
Traditional Type MC Cable With Ground And Neutral

Manufacturer Information

Brand
AFC Cable Systems|Kaf-Tech
Sub Brand
MC Lite®

General Product Info

12-Digit UPC
077680130488
GTiN
00077680130488
Product UPC
07768013048

Dimensions

Height
1.026 Inch
Length
100 Foot
Width
1.026 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
  • ColorSpec® ID/Color-Trak ID System. Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.*
  • Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.
  • RoHS Compliant. Aluminum armored cables are RoHS compliant
  • Buy American. Aluminum armored cables are Buy American compliant
  • Made in USA of US and/or imported materials
  • No ColorSpec on Low Voltage BK WE GN 12-2, all 10 AWG and larger configurations.
