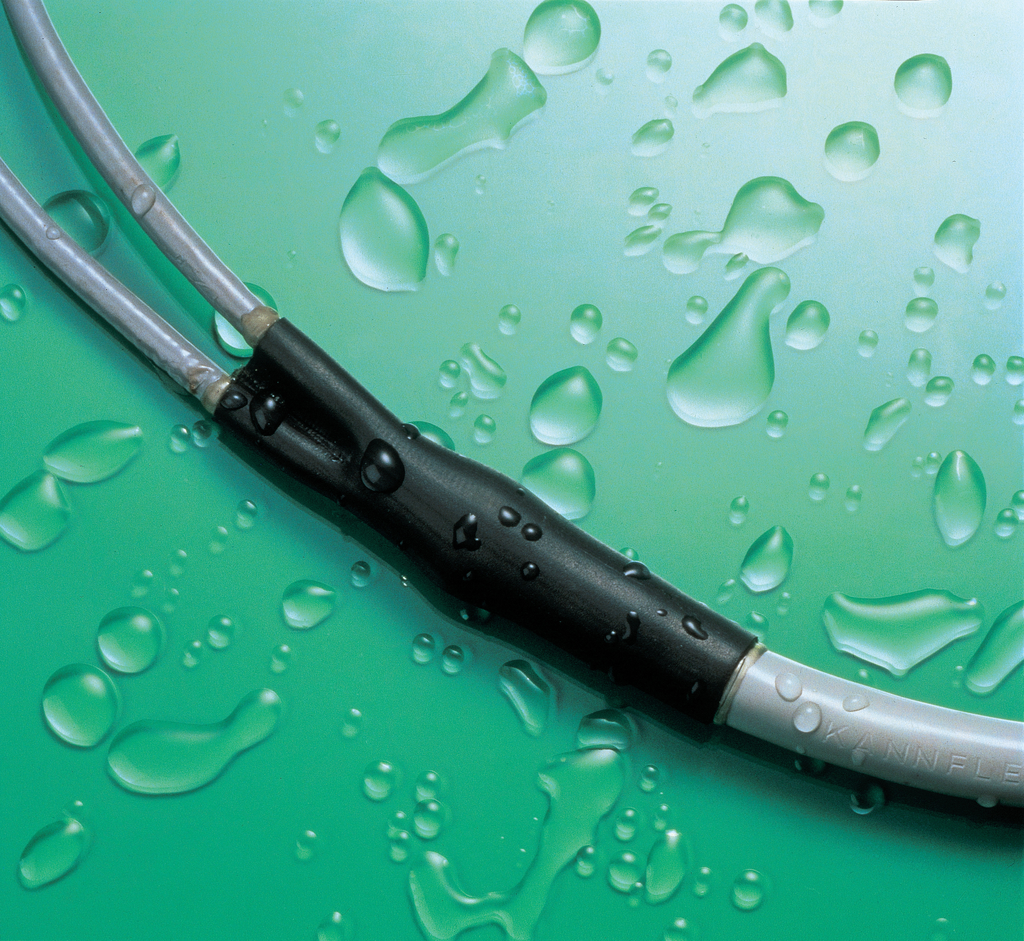

Product image for 3M 7000133583 3M™ Thin-Wall Heat Sh
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 7000133583 3M™ Thin-Wall Heat Sh

Manufacturer: 3M | Catalog # 7000133583 | Cooper Electric Part # 1022184
$23.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Technical Information

Dielectric Strength
700 V/mil
Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2100 lb/in
Type
Residual, Current Operated

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128597316
Color
Black
GTiN
00051128597316
Product UPC
05112859731

Dimensions

Inside Diameter
1.6
Length
48 Inch
Outside Diameter
0.5 in
Overall Length
48.0 in
Thickness
0.07

Certifications and Compliance

Country of Origin
USA
Features
  • INTEGRAL CONSTRUCTION: 3:1 thin-wall, flexible tubing offering the advantages of integral, adhesive-lined construction

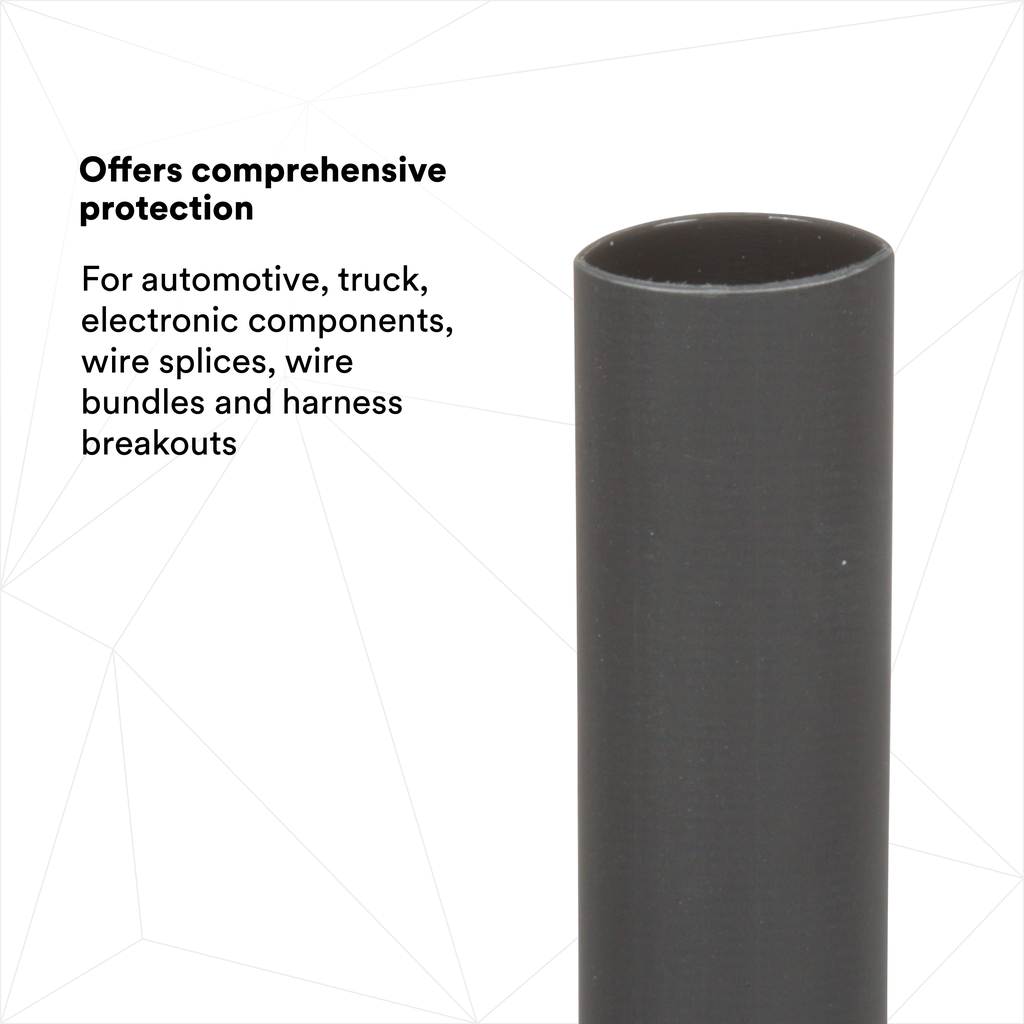

  • OFFERS COMPREHENSIVE PROTECTION: For automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • FLAME-RETARDANT TUBING: Made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive
  • OPERATING TEMPERATURE: Range from -55 °C (-67 °F) to 110 °C (230 °F), with a shrinking temperature minimum of 121 °C (250 °F)
  • COMPLIANCE: UL and CSA Reacognized, RoHS Compliant
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
