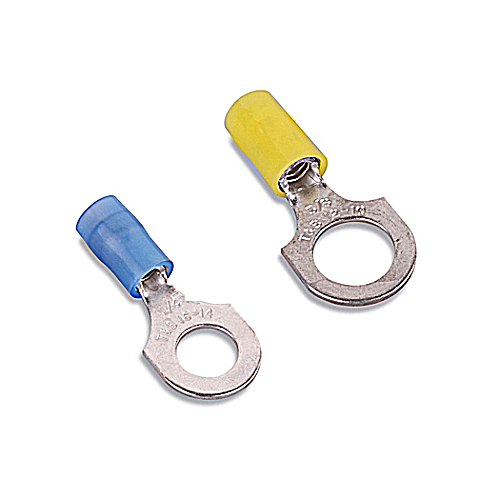

Product image for Thomas & Betts RC10-10 Nylon-Insulated Ring Terminal - #12-10, #10bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts RC10-10 Nylon-Insulated Ring Terminal - #12-10, #10bolt

Manufacturer: ABB | Thomas & Betts | Catalog # RC10-10 | Cooper Electric Part # 102199
$365.36/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nylon Insulated Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804385
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363135173
Product UPC
78621080438

Dimensions

Height
3.3 Inch
Thickness
.04 in
Width
4.69 in
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Certifications
  • UL
  • CSA
